  • X-Security XS-IPSD7525ISWHTA-2U-AI - PTZ X-Security 2 Mpx Ultra Range IP Camera,…

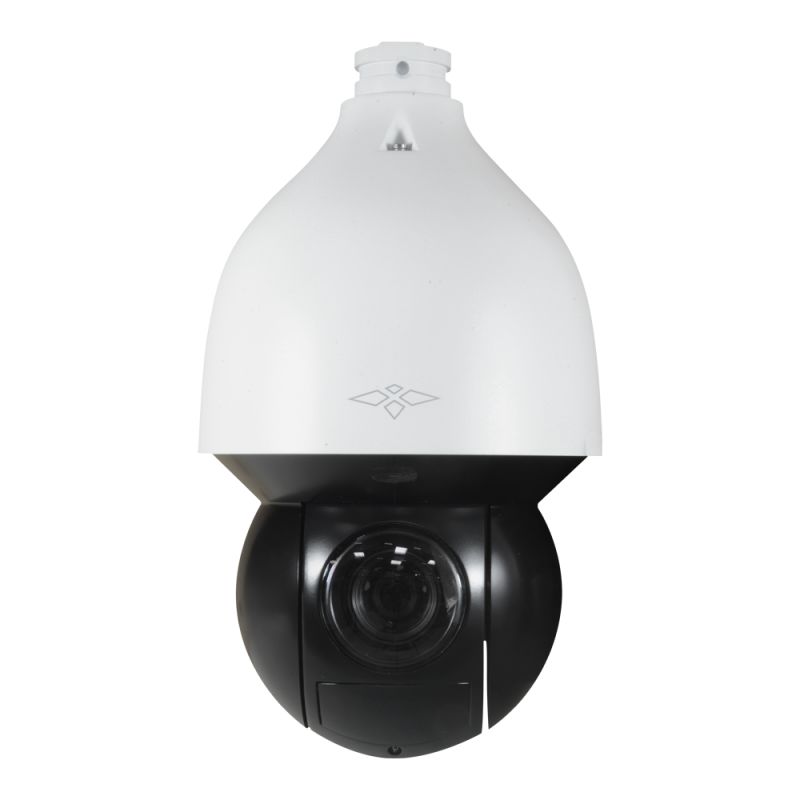

X-Security XS-IPSD7525ISWHTA-2U-AI - PTZ X-Security 2 Mpx Ultra Range IP Camera,…

PTZ X-Security 2 Mpx Ultra Range IP Camera - Autotracking / Face detection - Compression H.265+ - 5.4-135mm (X25) Vari-focal lens - Audio / High speed 400º/segundo - WizSense: False alarm filter
€860.00
Tax included
Reference XS-IPSD7525ISWHTA-2U-AI
Brand X-Security
Quantity
Out-of-Stock

Free shipping
  • X-Security
  • PTZ IP Camera
  • Ultra Range
  • High speed 400º/segundo
  • 25X Optical zoom
  • 1/2.8" Sony STARVIS™ CMOS Starlight
  • 2 Megapixel (1920×1080)
  • 5.4~135 mm Varifocal lens
  • High sensitivity Starlight
  • 0.005 Lux
  • IR Range 150 m
  • Compression H.265+/H.265/H.264+/H.264/MJPEG
  • RJ-45 10/100 BaseT
  • PoE+ 802.3at
  • Weatherproof IP67, Anti-vandal IK10
  • Audio
  • IR Cut
  • Alarms
  • Intelligent functions
  • WizSense: False alarm filter for people and vehicles
  • Autotracking and face detection
  • SD card recording
  • WEB, CMS (DSS/PSS), Smartphone and NVR interface
  • ONVIF Compatible
  • Wall bracket included

Features

  • PTZ X-Security 2 Mpx Ultra Range IP Camera
  • Autotracking / Face detection
  • Compression H.265+
  • 5.4-135mm (X25) Vari-focal lens
  • Audio / High speed 400º/segundo
  • WizSense: False alarm filter

Specs

Brand X-Security
Image sensor 1/2.8" STARVIS™ CMOS
Resolution 1080P (1920 × 1080) / 1.3 M (1280 × 960) / 720P (1280× 720) / D1 (704 × 576/704 × 480) / CIF (352 × 288/352× 240)
Compression H.265+/H.265/H.264+/H.264/MJPEG (sub stream)
Main Stream rate 1080P/1.3 M/720P (1–50/60 fps)
Extra Stream rate 2º: D1 / CIF (1–25/30 fps), 3º:1080P / 1.3M / 720P / D1 / CIF (1–25/30 fps)
Bitrate H.265/H.264: 3 kbps–20480 kbps
Lens Varifocal 5.4 ~ 135 mm (Optical zoom 25X) Auto Iris, Auto Focus
Digital zoom x16
Image improvements WDR (120dB),2D/ 3DNR, HLC, BLC, ATW, AGC, Privacy Mask
Minimum illumination 0.005 Lux (Colour)
Infrared lighting 0 Lux @ 150m range
Day / Night Removable mechanical ICR filter
Intelligent functions Autotracking, face detection, line crossing, abandoned object, intrusion, false alarm filtering for humans and vehicles
Audio 1 input (Line In) / 1 output (Line Out)
Alarms 2 inputs / 1 relay
Network interface Ethernet 10/100 BaseT
Remote access WEB interface, CMS software, mobile application and NVR
Memory Slot for Micro SD card (Max 256 GB)
Pan/Tilt Range Horizontal: 0°~360°, Vertical: -15°~90° auto flip 180°
Manual speed Horizontal: 0.1°~300° /s, Vertical: 0.1°~200° /s
Speed between Presets Horizontal: 400° /s, Vertical: 300° /s
Preset positions 300, 5 auto pattern, 8 auto tour, 5 auto scan
Communication DH-SD, ONVIF Compatible
Power DC 12 V / 3 A , PoE+(802.3at)
Degree of protection Weatherproof IP67, Anti-vandal IK10
Temp. operation -40º C ~ +70º C
Dimensions 332 mm (H) x 190 (Ø) mm
Weight 4700 g

Package content

  • Motorised IP PTZ camera
  • CD with software and instructions
  • Wall bracket

Data sheet

Weight
4700 g
Power
DC 12 V / 3 A, PoE+(802.3at)
Resolution
1080P (1920 × 1080) / 1.3 M (1280 × 960) / 720P (1280× 720) / D1 (704 × 576/704 × 480) / CIF (352 × 288/352× 240)
Temp. operation
-40º C ~ +70º C
Degree of protection
Weatherproof IP67, Anti-vandal IK10
Dimensions
332 mm (H) x 190 (Ø) mm
Transfer Rate
H.265/H.264: 3 kbps–20480 kbps
Communication
DH-SD, ONVIF Compatible
Audio
1 input (Line In) / 1 output (Line Out)
Memory
Slot for Micro SD card (Max 256 GB)
Image sensor
1/2.8\" STARVIS™ CMOS
Minimum illumination
0.005 Lux (Colour)
Lens
Varifocal 5.4 ~ 135 mm (Optical zoom 25X) Auto Iris, Auto Focus
Infrared lighting
0 Lux @ 150m range
Image improvements
WDR (120dB),2D/ 3DNR, HLC, BLC, ATW, AGC, Privacy Mask
Day / Night
Removable mechanical ICR filter
Pan/Tilt Range
Horizontal: 0°~360°, Vertical: -15°~90° auto flip 180°
Manual speed
Horizontal: 0.1°~300° /s, Vertical: 0.1°~200° /s
Preset positions
300, 5 auto pattern, 8 auto tour, 5 auto scan
Alarms
2 inputs / 1 relay
Remote access
WEB interface, CMS software, mobile application and NVR
Main Stream rate
1080P/1.3 M/720P (1–50/60 fps)
Extra Stream rate
2º: D1 / CIF (1–25/30 fps), 3º:1080P / 1.3M / 720P / D1 / CIF (1–25/30 fps)
Compression
H.265+/H.265/H.264+/H.264/MJPEG (sub stream)
Network interface
Ethernet 10/100 BaseT
Digital zoom
x16
Speed between Presets
Horizontal: 400° /s, Vertical: 300° /s
Intelligent functions
Autotracking, face detection, line crossing, abandoned object, intrusion, false alarm filtering for humans and vehicles
