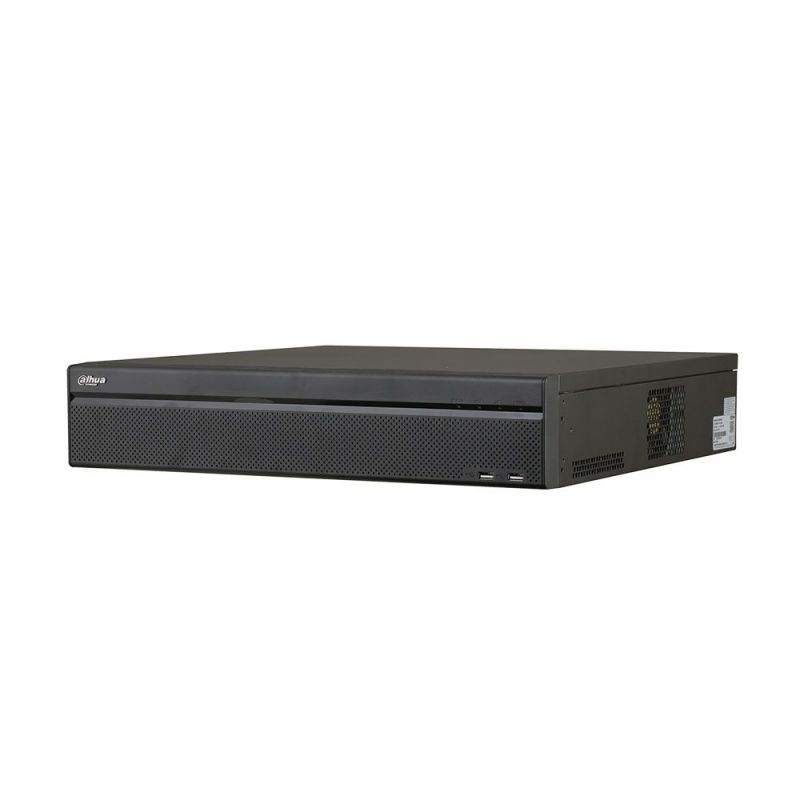

Dahua NVR5864-16P-4KS2E 64 ch IP NVR up to 12MP with 16 PoE+…

Dahua NVR5864-16P-4KS2E. 64 ch IP NVR up to 12MP with 16 PoE+ switch port (8 ePoE and EoC). H.265+/H.265/H.264+/H.264/MJPEG. 2 way audio. 16 ch playback. 12MP, 4K/8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 1,3MP, 720P, etc. Recording up to 320 Mbps. HDMI (4K) and VGA (1080P) output. IVS, Facial detection, heat map, poeple counter. POS. LPR . Alarm: 16 in / 6 out. 2 HDD SATA III. 1 RJ45 Gigabit. 1 USB 2.0 + 1 USB 3.0, 1 RS232, 1 RS485. 220V AC. 1,5U. 16 PoE+, 8 ePoE/EoC. Nvr5864-16p-4ks2e.





Features
- Quad-core processor
- LINUX OS
- Smart H.265+/H.265/Smart H.264+/H.264/MJPEG
- 64 IP camera inputs
- Video outputs: HDMI (4K) and VGA (1080P)
- 2 way audio: 1 RCA in / 1 RCA out

- Output division: 1, 4, 8, 9, 16, 25, 36,64

- Output division (secondary monitor): 1, 4, 8, 9, 16, 25, 36, 64
- Display resolution: 4K (3840x2160), 1080P (1920x1080), SXGA (1280x1024), 720P (1280x720), XGA (1024x768)
- Recording resolution: 12MP (4000x3000), 4K/8MP (3840x2160), 6MP (3072x2048), 5MP (2560x1920), 4MP (2560x1440), 3MP (2048x1536), 1080P (1920x1080), 1,3MP (1280x960), 720P (1280x720), etc.
- Recording speed: 320 Mbps
- Bitrate per channel: 16 Kbps ~ 20 Mbps
- Motion detection: 22x18 selectable grid, video loss and masking detection
- Playback: up to 16 channels
- Decoding/playback: 2ch 12MP@20fps, 4ch 8MP@25fps, 5ch 6MP@25fps, 6ch 5MP@25fps, 8ch 4MP@20fps, 11ch 3MP@25fps, 16ch 1080P@25fps
- Display/playback of thermal cameras
- Alarm: 16 in / 6 out
- Internal storage: 2x SATA III, up to 10TB per port (HDD is not included)
- ePoE technology simplifies the network structure of long-range surveillance projects, eliminating the need for additional network repeater devices
- EoC technology allows existing analog systems to be upgraded to high definition IP using the existing coaxial cabling
- IVS: Detection and analysis of objects in movement, abandoned or lost. It also supports "Tripwire" analysis, which allows the camera to detect when a predefined line has been crossed
- Heat map supported and people counter
- Facial detection
- POS
- Features multiple fisheye dewarping modes to make video viewing easy, either live or during playback
- Automatic recognition of license plates for the management of inputs / outputs
- Recognition of license plates, import / export of black / white lists, search results of recorded video
- ANR technology: In case of network failure the images are registered in the SD card of the IP camera, which are transferred to the NVR once the network is restored
- VQD
- 1x RJ45 (10/100/1000M)
- 16 PoE+ ports (IEEE802.3at/af), 8 supports ePoE and EoC
- Netowrk protocols: HTTP, HTTPs, TCP/IP, IPv4/IPv6, UPnP, SNMP, RTSP, UDP, SMTP, NTP, DHCP, DNS, Filtro IP, PPPoE, DDNS, FTP, alarm server, IP search (IP Dahua, DVR, NVS, etc.)
- ONVIF 2.4
- Remote access up to 128 users
- Connections: 1 USB 2.0, 1 USB 3.0, 1 RS485, 1 RS232
- Local network and internet server access
- Remote control via Joystick connected by RS485 and/or TCP/IP
- Independent motion detection configuration by camera
- Compatible with 3D positioning function (compatible PTZ domes)
- Software and hardware watchdog
- Watermark
- Limited access to users to cameras on local/remote mode
- Masking areas, alarm by video loss and blank camera
- Multilanguage OSD
- Display, configuration and remote control by TCP/IP with client programm and web browser Internet Explorer (compatible with Firefox and Chrome)
- Email sended with attached picture
- Programmed FTP or alarm sending
- Display on iPhone, iPad and Android
- Fixed/dynamic IP via Dyndns service, NoIP, DDNS Evolution, etc.
- Power supply: 100V ~ 240V AC, 50 ~ 60 Hz
- NVR consumption: <17,5W (without discs)
- PoE consumption: 25,5W per port with 150W total
- Working temperature: -10°C ~ +55°C
- RH: 0~90%
- Dimensions: 440 x 451,5 x 95 mm (1U)
- Weight: 9,5 kg (without HDD)

- DAHUA-1396-FO
