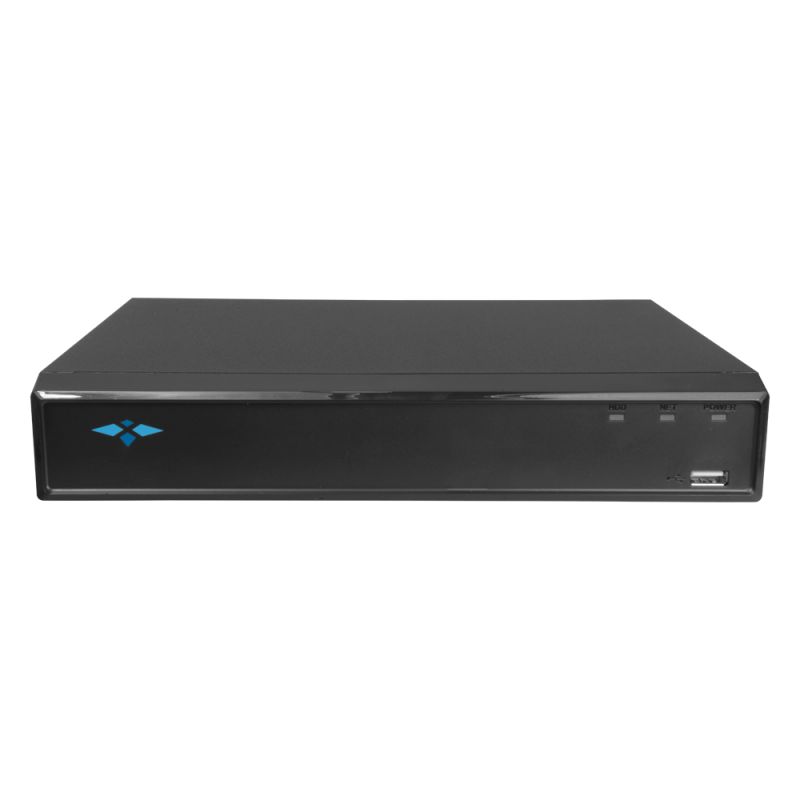

X-Security XS-NVR2108-4K8P - X-Security NVR for IP cameras, 8 CH IP and 8 PoE…
search
  • X-Security XS-NVR2108-4K8P - X-Security NVR for IP cameras, 8 CH IP and 8 PoE…

X-Security XS-NVR2108-4K8P - X-Security NVR for IP cameras, 8 CH IP and 8 PoE…

X-Security NVR for IP cameras - 8 CH IP and 8 PoE ports - Maximum recording resolution 8 Mpx - Compression H.265 / H.264 - Outputs 4K HDMI & VGA - Supports 1 hard disk
€163.80 €252.00 Save 35%
Tax included
Reference XS-NVR2108-4K8P
Brand X-Security
Quantity
Available in 24/48h

Free shipping
X-Security XS-NVR2108-4K8P - X-Security NVR for IP cameras, 8 CH IP and 8 PoE…

X-Security XS-NVR2108-4K8P - X-Security NVR for IP cameras, 8 CH IP and 8 PoE…

€163.80 €252.00 Save 35%

You might also like

  • X-Security
  • NVR for IP cameras
  • 8 CH
  • 80 Mbps bandwidth supported
  • Maximum resolution 8 Megapixel
  • Compression H.265 / H.264
  • VGA and HDMI 4K output
  • IP Dual Stream Access
  • Mouse
  • Space for 1 HDD
  • 8 PoE ports IEEE802.3af/at
  • WEB, CMS (DSS/PSS), Smartphone and NVR interface
  • ONVIF Compatible

Features

  • X-Security NVR for IP cameras
  • 8 CH IP and 8 PoE ports
  • Maximum recording resolution 8 Mpx
  • Compression H.265 / H.264
  • Outputs 4K HDMI & VGA
  • Supports 1 hard disk

Specs

BrandX-SECURITY
Inputs for IP camerasLAN port up to 8 channels
PoESwitch of 8 PoE channels IEEE802.3af/at
IP compatible camerasX-SECURITY (proprietary protocol), HIKVISION, SAFIRE, ONVIF
Video outputs1 HDMI 4K, 1 VGA
Bidirectional audio1 input, 1 output, RCA
Video compression formatH.265 / H.264
Display resolution3840× 2160, 1920× 1080, 1280× 1024, 1280× 720, 1024× 768
Total bandwidth80 Mbps
Recording resolution8Mp, 6Mp, 5Mp, 4Mp, 3Mp, 1080P, 720P, D1...
Simultaneous multifunctionPentaplex: Live, Recording, Playback, Backup and Remote Access
AlarmsNo
Recording methodManual, programmed, motion detection
BackupUSB (Memory, HDD, CD-RW, DVR-RW) / Network / SATA internal interface
Internal memory1 SATA HDD 3.5" of up to 6 TB (not included)
Communication2x USB 2.0 (Mouse and backup) /1 RJ45 10/100M (Ethernet)
Remote accessBrowser (ActiveX), mobile app or softwarePSS
PowerDC 48 V / 1.25 A
Dimensions1U, 48 (H) x 260 (W) x 225 (D) mm / 0.8 Kg (without HDD)

Package content

  • X-SECURITY NVR
  • Mouse
  • Adapter AC/DC 48 V / 1.25 A
  • User instructions

Data sheet

Power
DC 48 V / 1.25 A
Dimensions
1U, 48 (H) x 260 (W) x 225 (D) mm / 0.8 Kg (without HDD)
Power supply
DC 48 V / 1.25 A
Communication
2x USB 2.0 (Mouse and backup) /1 RJ45 10/100M (Ethernet)
Inputs for IP cameras
LAN port up to 8 channels
PoE
Switch of 8 PoE channels IEEE802.3af/at
IP compatible cameras
X-SECURITY (proprietary protocol), HIKVISION, SAFIRE, ONVIF
Bidirectional audio
1 input, 1 output, RCA
Video compression format
H.265 / H.264
Display resolution
3840× 2160, 1920× 1080, 1280× 1024, 1280× 720, 1024× 768
Total bandwidth
80 Mbps
Simultaneous multifunction
Pentaplex: Live, Recording, Playback, Backup and Remote Access
Alarms
No
Recording method
Manual, programmed, motion detection
Internal memory
1 SATA HDD 3.5\" of up to 6 TB (not included)
Remote access
Browser (ActiveX), mobile app or softwarePSS
Video outputs
1 HDMI 4K, 1 VGA
Recording resolution
8Mp, 6Mp, 5Mp, 4Mp, 3Mp, 1080P, 720P, D1...
Backup
USB (Memory, HDD, CD-RW, DVR-RW) / Network / SATA internal interface
