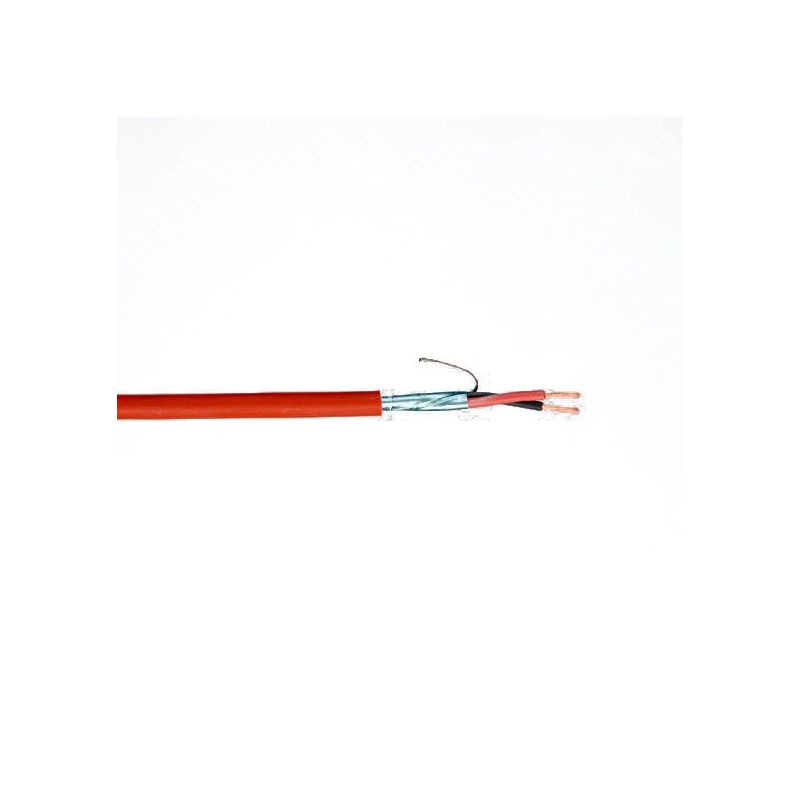

DEM-1272. Roll of 100 meters of pyrofren SOZ1-K (AS +) V-500 cable of 2x1,5 mm², RJ cased / screened Cable pirofren soz1-k (as+) v-500 2x1.5mm2 rj.entubado/apantallado.

Description
Shielded cable with intrinsic fire resistance intended for safety circuits. Manufactured with EI2 crosslinked elastomer insulation, screened with aluminum / polyester tape plus tinned wood drainage and thermoplastic polyolefin outer shell. SOZ1-K (AS +) cables comply with fire safety regulations and their side effects. Manufactured according to the criteria of standard UNE 211025.

Specifications

Conductor: flexible polished copper Class 5 (s / UNE-EN 60228)

Insulation: crosslinked elastomer type EI2 (s / EN-50363-1)

Formation: Conductors wired in concentric layers

Wired pass: 15 turns approximately meter

Separator: polyester tape

Drainage: 0.50 mm² flexible tinned copper (s / UNE-EN 60228)

Display: aluminum / polyester tape

Housing: thermoplastic polyolefin type TM7 (s / EN-50363-8)

Usual color: red

Rated voltage: 300/500 V

Test voltage: 2,000 V
