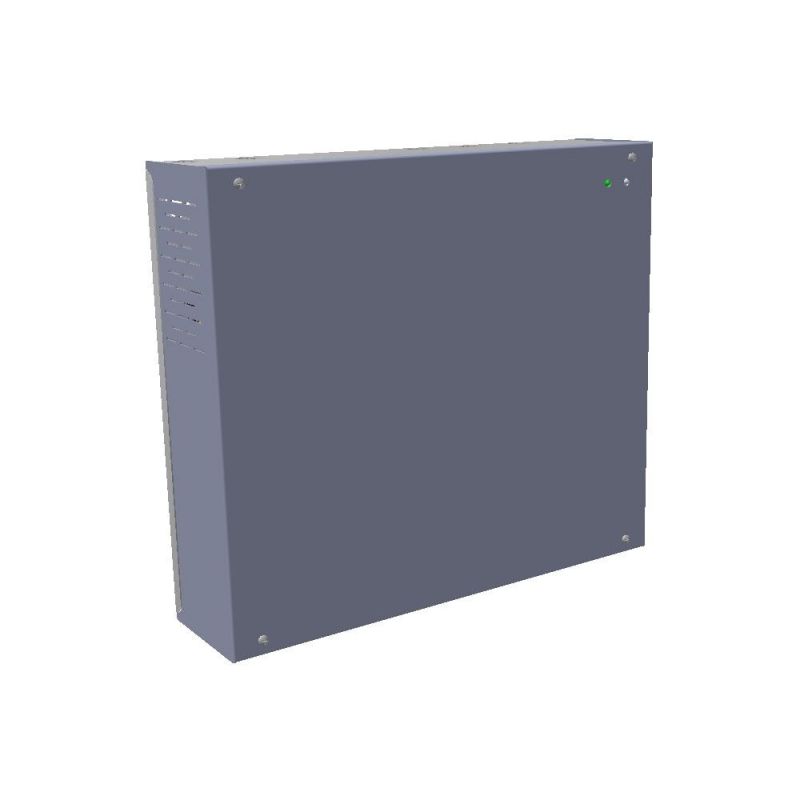

FOC-611. 24V /2A power supply. EN54-4 certified. Fuente de alimentacion 24v-2a certificada en54-4.

Features

- Power supply oriented as an auxiliary component for powering elements and devices that are part of fire detection and alarm systems

- It has monitoring relay and status indicators (network, batteries, outputs and charger)

- Input voltage range: 195V ~ 255V AC, 50 / 60Hz

- 2 power outputs with a voltage range of 20V ~ 28V DC

- Maximum output current of 2A (between both outputs) with battery charge disabled and 1.2A charging batteries

- Operating from batteries, the power supply is capable of supplying 2.5A

- Space for 2 batteries of 12V DC / 20Ah (380 x 175 x 90 mm)

- Charging current of 0.8A batteries

- 24 mA control circuit consumption

- Maximum resistance of the batteries of 1.5 Ohms

- Fault relay: C, NC, NA; maximum 30V DC / 1A

- 4A mains fuse

- 4A Battery Fuse

- Degree of protection IP30

- Dimensions: 400 x 350 x 100 mm
