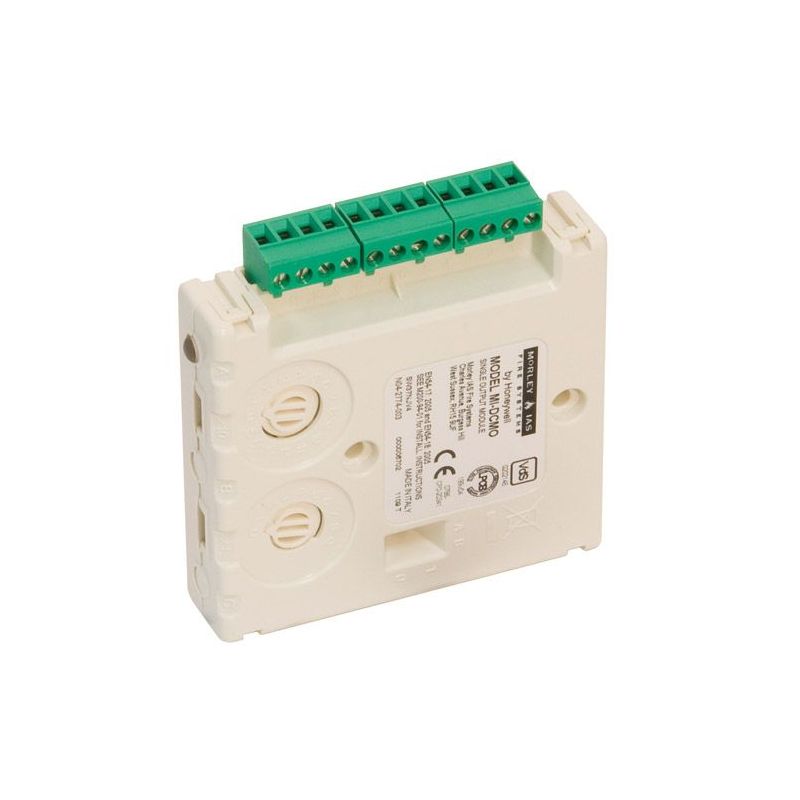

Morley MI-DCMO Addressable control module with 1 supervised…

Addressable control module with 1 supervised output with EOL or in relay form. Addressable control module for MorleyIAS analog system (activation of sirens, doors and fire dampers...). With an output configurable by means of a switch as a supervised output or as a NO/NC voltage-free contact.. . Includes short circuit isolator. Easy addressing by means of two decadic rotary switches placed both on the front of the module and on the side (accessible and visible on DIN rail mounting).. . It has a tricolor LED (green: flashes when the unit is asked; red: fixed active relay; yellow: flashes due to a fault in the input circuit). Connection via removable terminals (up to 2.5mm2 section). Multiple mounting possibilities: On the surface using a M200SMB or SMB6-V0 box, on a DIN rail using an M200E-DIN adapter or on a panel using a M200PMB support.. . . • Weight: 110g. • Dimensions in mm: 94 width 93 height 23 depth. • Line supervision: resistive 47K Ohms. • Approved according to: EN54-18 and EN54-17. • CPD Certificate: 0786-CPD-20341
