Advanced ADV-ESMX-5402V - Advanced analogue central from 2 loops extendable to…

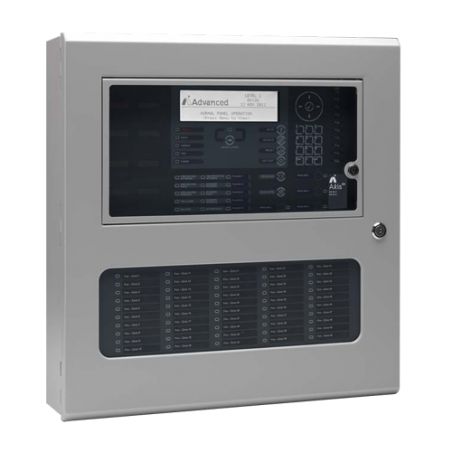

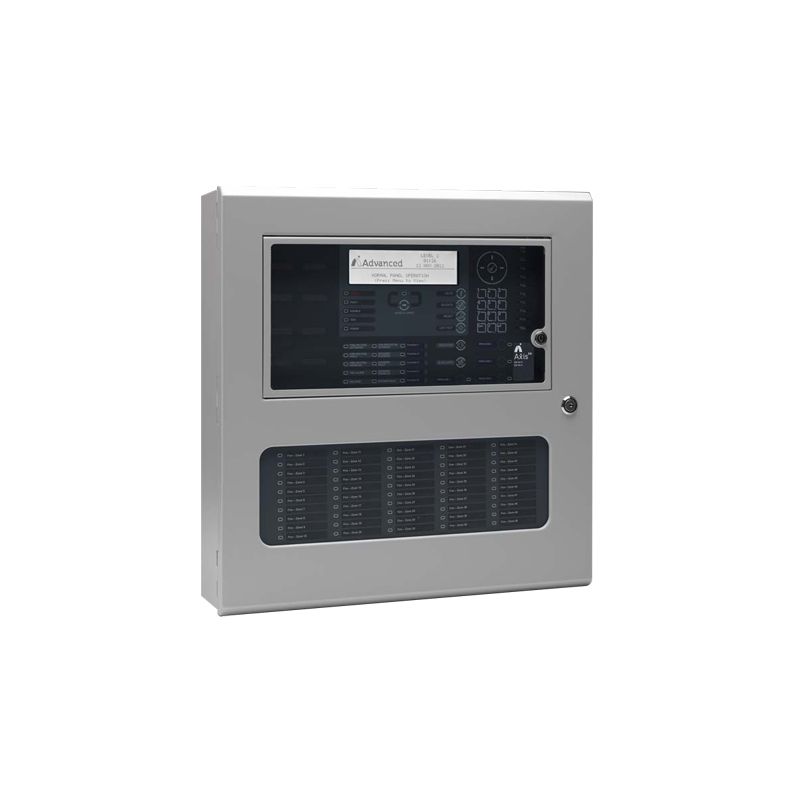

Advanced analogue central from 2 loops extendable to 4 - Up to 240 devices per loop - Argus Protocol (compatible with Hochiki and Apollo) - Customizable LCD screen - Certificates EN54-2, EN54-4, EN54-13 and Part 2 and 4 by FM Approvals

€1,618.00

Tax included

Reference ADV-ESMX-5402V

Brand Advanced

Advanced ADV-ESMX-5402V - Advanced analogue central from 2 loops extendable to…

€1,618.00

Description
Product Details

Advanced
Central of 2 loops expandable to 4
Possibility of expansion through Ad-net network card (between exchanges and control stations)
Multiprotocol compatible with Argus Vega, Apollo, Hochiki and Nittan Evolution (Argus Vega preinstalled, other protocols require firmware update)
Up to 240 devices per loop
Auto-addressing of devices
Ad-Net peer-to-peer network capable of managing up to 2000 zones
Programmable function buttons
4 siren outputs
USB communication ports and RS232
20 LED for programmable zones
Graphical LCD user interface and support for up to 200 default fire zones, enabling full compliance with the EN54 standard.
Compatible with IP module (installed in network, 1 only module for the whole system)
Removable terminals for hot extraction
Quick-extraction main plate. Easy removal of PCB from the housing
Rack mountable
Customizable LCD logo
Multi-language
Certified EN 54-2:1997, EN 54-4:1997 and EN 54-13:2005 Certificate in EN54 Parts 2 and 4 by FM Approvals

Features

Advanced analogue central from 2 loops extendable to 4
Up to 240 devices per loop
Argus Protocol (compatible with Hochiki and Apollo)
Customizable LCD screen
Certificates EN54-2, EN54-4, EN54-13 and Part 2 and 4 by FM Approvals

Specs

Brand	Advanced
Core technology	Dual flash-based processors with real-time clock, diagnostics, programmable languages and character sets
Display	240 x 64 white backlit LCD screen.
LED indicators	22 red (1 x fire, 1 x more alarms, 20 x programmable zone), 1 green (power), 13 amber and 12 bicolor (fault and system)
Controls	Alphanumeric keypad that allows navigation, Reset, Mute buzzer, Mute sirens, Resonate, Evacuate and x4 programmable push-buttons
Protocols	Argus Vega (preinstalled), Apollo (XP95 / Discovery), Hochiki ESP and Nittan Evolution
Number of zones	2000 (200 per panel)
Number of loops	2 expandable to 4
Loop devices	240 in Argus Vega protocol (pre-installed), in the others it depends on the protocol
Loop	500mA
Siren outputs on plate	4 x 1 Programmable Amp
Relay outputs on plate	2 x 1 Amp 30v AC/DC programable(10mA, 5v min) - expandable to 4
Programmable inputs	1 x programmable supervised input in plate
Auxiliary output	24V 500mA
Programmable key switch inputs	8 x Free voltage input
Total output current available	5A maximum available for loop current + siren outputs + auxiliary power
Main power supply	200 - 240v 47-63 Hz AC (+10%, -15% tolerance) 1.4A Max
Charger current	2A with temperature compensation
Serial port interface	1 x in plate, connection for PC RS232, modem, IP, or portable printer
USB interface	1 x USB Type B for PC connection
Program	Keypad and LCD (built-in) or PC with Windows software
Event Buffer	5000 for events and diagnosis + 500 fires
Networks	Optional network card (ADV-MXP-503 - standard, or ADV-MXP-509 - fault tolerant)
Printer (optional)	In plate (only in the M, L, D boxes)
Box / Color	Steel IP30 / RAL7035
Metalwork Options	Flush Mount Bezel, Battery Box, Special Utility Boxes, Termination Boxes and Rack Mount Profile
Dimensions (H x W x D mm)	Standard: 475 x 450 x 120 Large: 475 x 450 x 190 Big Deep: 750 x 450 x 190
Cable entry (20mm knockouts)	Standard: 19 x above, 11 x rear and 2 x below Large: 30 x above, 11 x rear and 3 x below Big Deep: 30 x above, 6 x rear and 3 x below
Battery capacity (Min - Max)	Standard: 24V 4Ah - 24V 18Ah Large: 24V 4Ah - 24V 45Ah Big Deep: 24V 4Ah - 24V 45Ah

Package content

Battery cables
Supervision resistors
Fuses
Access keys
Mounting brackets

Data sheet

LED indicators: 22 red (1 x fire, 1 x more alarms, 20 x programmable zone), 1 green (power), 13 amber and 12 bicolor (fault and system)
Dimensions: Estándar: 13 x arriba, 8 x trasera Mediana: 17 x arriba, 11 x trasera Grande: 19 x arriba, 11 x trasera Grande Deep: 30 x arriba, 11 x trasera y 3 x abajo
Estándar: 13 x arriba, 8 x trasera Mediana: 17 x arriba, 11 x trasera Grande: 19 x arriba, 11 x trasera Grande Deep: 30 x arriba, 11 x trasera y 3 x abajo
Estándar: 13 x arriba, 8 x trasera Mediana: 17 x arriba, 11 x trasera Grande: 19 x arriba, 11 x trasera Grande Deep: 30 x arriba, 11 x trasera y 3 x abajo
Estándar: 13 x arriba, 8 x trasera Mediana: 17 x arriba, 11 x trasera Grande: 19 x arriba, 11 x trasera Grande Deep: 30 x arriba, 11 x trasera y 3 x abajo
Estándar: 13 x arriba, 8 x trasera Mediana: 17 x arriba, 11 x trasera Grande: 19 x arriba, 11 x trasera Grande Deep: 30 x arriba, 11 x trasera y 3 x abajo
Estándar: 13 x arriba, 8 x trasera Mediana: 17 x arriba, 11 x trasera Grande: 19 x arriba, 11 x trasera Grande Deep: 30 x arriba, 11 x trasera y 3 x abajo
Estándar: 13 x arriba, 8 x trasera Mediana: 17 x arriba, 11 x trasera Grande: 19 x arriba, 11 x trasera Grande Deep: 30 x arriba, 11 x trasera y 3 x abajo
Number of zones: 2000 (200 per panel)
Display: 240 x 64 white backlit LCD screen.
Protocols: Argus Vega (preinstalled), Apollo (XP95 / Discovery), Hochiki ESP and Nittan Evolution
Tecnología de base: Procesadores duales basados en flash con reloj en tiempo real, diagnóstico, lenguajes programables y conjuntos de caracteres
Indicadores LED: 22 rojos (1 x fuego, 1 x más alarmas, 20 x zonal programable), 1 verde (alimentación), 13 ámbar y 12 bicolor (falla y sistema)
Controles: Teclado alfanumérico que permite la navegación, Reseteo, Silenciar buzzer, Silenciar sirenas, Resonar, Evacuacion y x4 pulsadores programables
Numero de lazos: 2 ampliable a 4
Dispositivos por lazo: 240 en protocolo Argus Vega (preinstalado), en los demas depende del protocolo
Lazo: 500mA
Salidas de sirena en placa: 4 x 1 Amp programable
Salidas de Rele en placa: 2 x 1 Amp 30v AC/DC programable(10mA, 5v min) - expandible a 4
Salida auxiliar: 24V 500mA
Entradas programables: 1 x entrada supervisada programable en placa
Entradas programables de interruptor de llave: 8 x Entrada libre de tension
Corriente de salida total disponible: 5A máximo disponible para corriente de lazo + salidas de sirena + alimentación auxiliar
Alimentacion principal: 200 - 240v 47-63 Hz AC (+10%, -15% de tolerancia) 1.4A Max
Corriente del cargador: 2A con compensacion de temperatura
Interfac puerto serie: 1 x En placa, conexion para PC RS232, modem, IP, o impresora portatil
Interfaz USB: 1 x USB Tipo B para conexion de PC
Programacion: Teclado y LCD (incorporados) o PC con software de Windows
Buffer de eventos: 5000 para eventos y diagnóstico + 500 incendios
Redes: Tarjeta de red opcional (ADV-MXP-503 - estándar, o ADV-MXP-509 - tolerante a fallos)
Impresora (opcional): En placa (sólo en las cajas M, L, D)
Caja / Color: Acero IP30 / RAL7035
Opciones de metalistería: Bisel de empotrar, caja para batería, Cajas para utilidades especiales, Cajas de terminación y Perfil de montaje en rack
Core technology: Dual flash-based processors with real-time clock, diagnostics, programmable languages and character sets
Controls: Alphanumeric keyboard that allows navigation, Reset, Mute buzzer, Mute sirens, Resonate, Evacuate and x4 programmable push-buttons
Alphanumeric keypad that allows navigation, Reset, Mute buzzer, Mute sirens, Resonate, Evacuate and x4 programmable push-buttons
Number of loops: 2 expandable to 4
Loop devices: 240 in Argus Vega protocol (pre-installed), in the others it depends on the protocol
Loop: 500mA
Siren outputs on plate: 4 x 1 Programmable Amp
Relay outputs on plate: 2 x 1 Amp 30v AC/DC programable(10mA, 5v min) - expandable to 4
Auxiliary output: 24V 500mA
Programmable inputs: 1 x programmable supervised input in plate
Programmable key switch inputs: 8 x Free voltage input
Total output current available: 5A maximum available for loop current + siren outputs + auxiliary power
Main power supply: 200 - 240v 47-63 Hz AC (+10%, -15% tolerance) 1.4A Max
Charger current: 2A with temperature compensation
Serial port interface: 1 x in plate, connection for PC RS232, modem, IP, or portable printer
USB interface: 1 x USB Type B for PC connection
Program: Keypad and LCD (built-in) or PC with Windows software
Event Buffer: 5000 for events and diagnosis + 500 fires
Networks: Optional network card (ADV-MXP-503 - standard, or ADV-MXP-509 - fault tolerant)
Printer (optional): In plate (only in the M, L, D boxes)
Box / Color: Steel IP30 / RAL7035
Metalwork Options: Flush Mount Bezel, Battery Box, Special Utility Boxes, Termination Boxes and Rack Mount Profile
Dimensiones (H x W x D mm): Estándar: 345 x 345 x 85 Media: 345 x 430 x 120 Grande: 475 x 450 x 120 Grande Deep: 475 x 450 x 190
Estándar: 345 x 345 x 85 Media: 345 x 430 x 120 Grande: 475 x 450 x 120 Grande Deep: 475 x 450 x 190
Estándar: 345 x 345 x 85 Media: 345 x 430 x 120 Grande: 475 x 450 x 120 Grande Deep: 475 x 450 x 190
Estándar: 345 x 345 x 85 Media: 345 x 430 x 120 Grande: 475 x 450 x 120 Grande Deep: 475 x 450 x 190
Estándar: 345 x 345 x 85 Media: 345 x 430 x 120 Grande: 475 x 450 x 120 Grande Deep: 475 x 450 x 190
Estándar: 345 x 345 x 85 Media: 345 x 430 x 120 Grande: 475 x 450 x 120 Grande Deep: 475 x 450 x 190
Estándar: 345 x 345 x 85 Media: 345 x 430 x 120 Grande: 475 x 450 x 120 Grande Deep: 475 x 450 x 190
H x W x D mm
H x W x D mm
H x W x D mm
H x W x D mm
H x W x D mm
H x W x D mm
H x W x D mm
Dimensions (H x W x D mm): Standard: 475 x 450 x 120 Large: 475 x 450 x 190 Big Deep: 750 x 450 x 190
Cable entry (20mm knockouts): Standard: 19 x above, 11 x rear and 2 x below Large: 30 x above, 11 x rear and 3 x below Big Deep: 30 x above, 6 x rear and 3 x below
Battery capacity (Min - Max): Standard: 24V 4Ah - 24V 18Ah Large: 24V 4Ah - 24V 45Ah Big Deep: 24V 4Ah - 24V 45Ah
Cable entry (20mm knockouts): Standard: 19 x above, 11 x rear and 2 x below Large: 30 x above, 11 x rear and 3 x below Big Deep: 30 x above, 6 x rear and 3 x below
