SELECT * FROM ps_od_oosbutton_manufacturer WHERE id_manufacturer = 192SELECT * FROM ps_od_oosbutton JOIN ps_od_oosbutton_lang USING (id_product) WHERE id_product = 8398 AND id_lang = 1 Advanced ADV-AXIS-CWS - Conventional siren Advanced, Needs ADV-AXIS-WSM module…
  • -35%
Advanced ADV-AXIS-CWS - Conventional siren Advanced, Needs ADV-AXIS-WSM module…
search
  • Advanced ADV-AXIS-CWS - Conventional siren Advanced, Needs ADV-AXIS-WSM module…

Advanced ADV-AXIS-CWS - Conventional siren Advanced, Needs ADV-AXIS-WSM module…

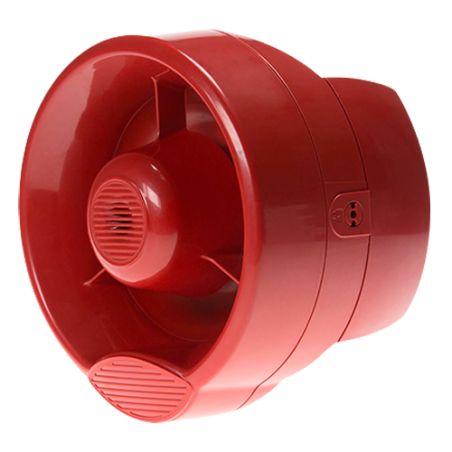

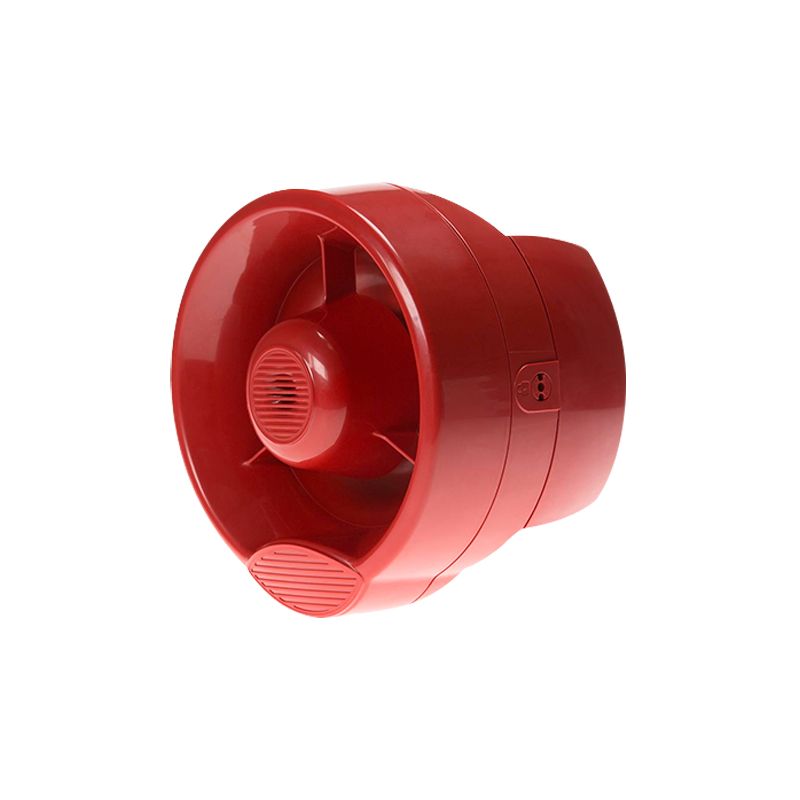

Conventional siren Advanced - Needs ADV-AXIS-WSM module to connect to analog loop - Maximum sound pressure level 100dBA - 4 volume levels and 32 configurable tones - Certificates EN54-3
€31.85 €49.00 Save 35%
Tax included
Reference ADV-AXIS-CWS
Brand Advanced
Quantity
Available Now

Free shipping
Advanced ADV-AXIS-CWS - Conventional siren Advanced, Needs ADV-AXIS-WSM module…

Advanced ADV-AXIS-CWS - Conventional siren Advanced, Needs ADV-AXIS-WSM module…

€31.85 €49.00 Save 35%
  • Advanced
  • Conventional siren
  • Needs ADV-AXIS-WSM module to connect to analog loop
  • Equipped with 4 volume adjustment levels and 32 recognized tones that can be configured through the control equipment or locally on the siren
  • Certified in EN54-3
  • Two-stage alarm capability

Features

  • Conventional siren Advanced
  • Needs ADV-AXIS-WSM module to connect to analog loop
  • Maximum sound pressure level 100dBA
  • 4 volume levels and 32 configurable tones
  • Certificates EN54-3

Specs

BrandAdvanced
Voltage DCNominal Relay Switching current 24V (18~40V)
Activated current load (high vol)Maximum acoustic output: 5-8mA @ 24VDC
Acoustic frequency range400-2900Hz
Sound power100dB to 1m
Operating temperature range-25ºC ~ +70ºC
Humidity (non condensing)95% RH
Dimensions132 x 126 x 90 (H x W x D)
Weight290g
IP protectionIP65
CertificationEN54-3

Package content

  • Siren interface

Data sheet

Weight
290g
290g
Dimensions
132 x 126 x 90 (H x W x D)
IP protection
IP65
Certification
EN54-3
Voltaje DC
Nominal 24V (18~40V)
Voltage DC
Nominal Relay Switching current 24V (18~40V)
Sound power
100dB to 1m
Rango de temperatura de funcionamiento
-25ºC ~ +70ºC
Humedad (sin condensación)
95% RH
Carga del circuito activado
Máximo volumen con sirena: 5-8mA @ 24VDC
Rango de frecuencia acústica
400-2900Hz
Operating temperature range
-25ºC ~ +70ºC
Humidity (non condensing)
95% RH
Activated current load (high vol)
Maximum acoustic output: 5-8mA @ 24VDC
Acoustic frequency range
400-2900Hz
