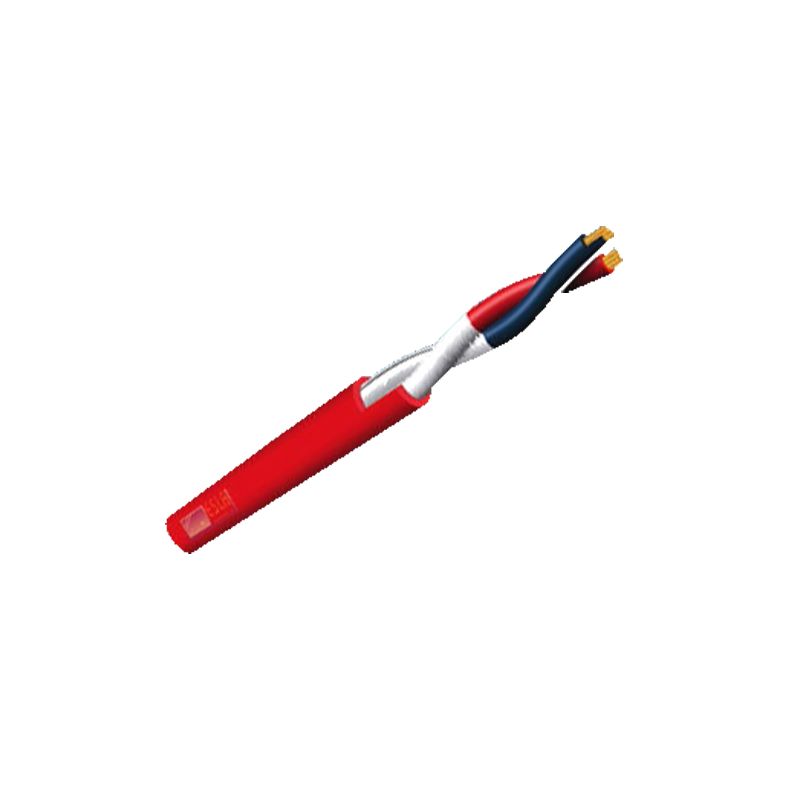

FRC15-100-C - Shielded braided cable drum, Fire resistant 90\' CR1,…

Shielded braided cable drum - Fire resistant 90' CR1 - Bobbin of 100 meters - Copper conductor 2x1.5mm2 - CPR certificate Cca -1sb, a1, d1 - Certified EN 50575 - Resistance 13.9 ?/Km
€100.10 €154.00 Save 35%
Tax included
Reference FRC15-100-C
Brand Branded
Quantity
Out-of-Stock

Free shipping
  • Fire-resistant twisted pair cable bobbin
  • 100 m
  • Specially for fire
  • Shielding
  • 2 conductors
  • Inner conductor Flexible polished copper Class 5 1.5mm2
  • 25 turns/meter
  • Silicone Ceramic CR1 Fire Resistant 2.8mm
  • Screen Aluminium Mylar+Drain CuSn
  • Cover Polyolefin EVA 7.0 mm
  • Certified EN 50575
  • Resistance 13.9 Ω/Km

Features

  • Shielded braided cable drum
  • Fire resistant 90' CR1
  • Bobbin of 100 meters
  • Copper conductor 2x1.5mm2
  • CPR certificate Cca -1sb, a1, d1
  • Certified EN 50575
  • Resistance 13.9 ?/Km

Specs

Length100 m
Interior conductorFlexible polished copper Class 5 1.5mm2
IsolationSilicone Ceramic CR1 Fire Resistant 2.8mm
Active time to fire90 minutes
ColourRed and Black - more than 25 turns/meter
ScreenMylar Aluminum Tape to Assembly / Coverage 96 % RFI / CuSn drain wire 7x0,20
External coverHalogen Free EVA Polyolefin 7-7.4mm
Resistance13.9 Ω/Km
Working voltage500V
Capacity98 pF/m
Working voltage-40º ~ +70º
CertificationCPR (Cca -1sb, a1, d1), UNE EN 50575, UNE EN 60332-1-2,50399,61034-2, UNE EN 60754-2

Package content

  • Bobbin of cable

Data sheet

Longitud
100 m
Capacity
98 pF/m
Screen
Cinta de Aluminio Mylar al Conjunto / Cobertura 96 % RFI / Hilo drenaje CuSn 7x0,20
Mylar Aluminum Tape to Assembly / Coverage 96 % RFI / CuSn drain wire 7x0,20
Length
100 m
Interior conductor
Flexible polished copper Class 5 1.5mm2
Isolation
Silicona Ceramizante CR1 Resistente al Fuego 2.8mm
Silicone Ceramic CR1 Fire Resistant 2.8mm
External cover
Halogen Free EVA Polyolefin 7-7.4mm
Poliolefina EVA Libre de Halógenos 7-7.4mm
Resistance
13.9 Ω/Km
Colour
Red and Black - more than 25 turns/meter
Certification
CPR (Cca -1sb, a1, d1), UNE EN 50575, UNE EN 60332-1-2,50399,61034-2, UNE EN 60754-2
CPR (Cca -1sb, a1, d1), UNE EN 50575, UNE EN 60332-1-2, UNE EN 50399, UNE EN 61034-2, UNE EN 60754-2
CPR, UNE EN 50575, UNE EN 60332-1-2, UNE EN 50399, UNE EN 61034-2, UNE EN 60754-2
Conductor interior
Cobre pulido flexible Clase 5 1.5mm2
Colores
Rojo y Negro - más de 25 vueltas/metro
Resistencia
13.9 Ω/Km
Tensión trabajo
-40º ~ +70º
500V
Tiempo activo al fuego
90 minutos
Working voltage
-40º ~ +70º
500V
Active time to fire
90 minutes
