  • FRC25-500-C - Bobina de cable trenzado apantallado, Resistente al…

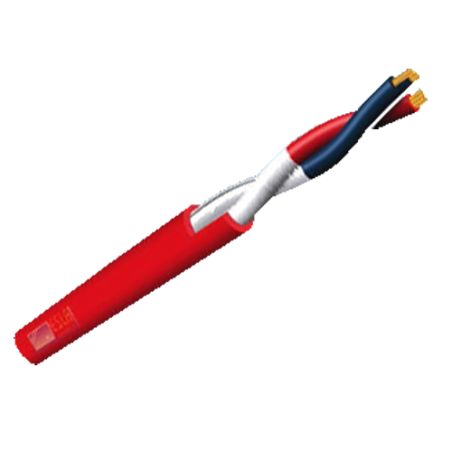

FRC25-500-C - Shielded braided cable drum, Fire resistant 90\' CR1,…

Shielded braided cable drum - Fire resistant 90' CR1 - Bobbin of 500 meters - Copper conductor 2x2.5mm2 - CPR certificate Cca -1sb, a1, d1 - Certified EN 50575 - Resistance 8.3 ?/Km
€682.50 €1,050.00 Save 35%
Tax included
Reference FRC25-500-C
Brand Branded
Quantity
Available in 24/48h

Free shipping
FRC25-500-C - Bobina de cable trenzado apantallado, Resistente al…

FRC25-500-C - Shielded braided cable drum, Fire resistant 90\' CR1,…

€682.50 €1,050.00 Save 35%
  • Fire-resistant twisted pair cable bobbin
  • 500 m
  • Specially for fire
  • Shielding
  • 2 conductors
  • Inner conductor Flexible polished copper Class 5 2.5mm2
  • 25 turns/meter
  • Silicone Ceramic CR1 Fire Resistant 3.4mm
  • Screen Aluminium Mylar+Drain CuSn
  • Cover Polyolefin EVA 8.0 mm
  • Certified EN 50575
  • Resistance 8.3 Ω/Km

Features

  • Shielded braided cable drum
  • Fire resistant 90' CR1
  • Bobbin of 500 meters
  • Copper conductor 2x2.5mm2
  • CPR certificate Cca -1sb, a1, d1
  • Certified EN 50575
  • Resistance 8.3 ?/Km

Specs

Length 500 m
Interior conductor Flexible polished copper Class 5 2.5mm2
Isolation Silicone Ceramic CR1 Fire Resistant 3.4mm
Active time to fire 90 minutes
Colour Red and Black - more than 25 turns/meter
Screen Mylar Aluminum Tape to Assembly / Coverage 96 % RFI / CuSn drain wire 7x0,20
External cover Halogen Free EVA Polyolefin 8.3mm
Resistance 8.3 Ω/Km
Working voltage 500V
Capacity 98 pF/m
Working voltage -40º ~ +70º
Certification CPR (Cca -1sb, a1, d1), UNE EN 50575, UNE EN 60332-1-2,50399,61034-2, UNE EN 60754-2

Package content

  • Bobbin of cable

Data sheet

Longitud
500 m
Capacity
98 pF/m
Screen
Cinta de Aluminio Mylar al Conjunto / Cobertura 96 % RFI / Hilo drenaje CuSn 7x0,20
Mylar Aluminum Tape to Assembly / Coverage 96 % RFI / CuSn drain wire 7x0,20
Length
500 m
Interior conductor
Flexible polished copper Class 5 2.5mm2
Isolation
Silicona Ceramizante CR1 Resistente al Fuego 3.4mm
Silicone Ceramic CR1 Fire Resistant 3.4mm
External cover
Halogen Free EVA Polyolefin 8.3mm
Poliolefina EVA Libre de Halógenos 8.3mm
Resistance
8.3 Ω/Km
Colour
Red and Black - more than 25 turns/meter
Certification
CPR (Cca -1sb, a1, d1), UNE EN 50575, UNE EN 60332-1-2,50399,61034-2, UNE EN 60754-2
CPR (Cca -1sb, a1, d1), UNE EN 50575, UNE EN 60332-1-2, UNE EN 50399, UNE EN 61034-2, UNE EN 60754-2
CPR, UNE EN 50575, UNE EN 60332-1-2, UNE EN 50399, UNE EN 61034-2, UNE EN 60754-2
Conductor interior
Cobre pulido flexible Clase 5 2.5mm2
Colores
Rojo y Negro - más de 25 vueltas/metro
Resistencia
8.3 Ω/Km
Tensión trabajo
-40º ~ +70º
500V
Tiempo activo al fuego
90 minutos
Working voltage
-40º ~ +70º
500V
Active time to fire
90 minutes
