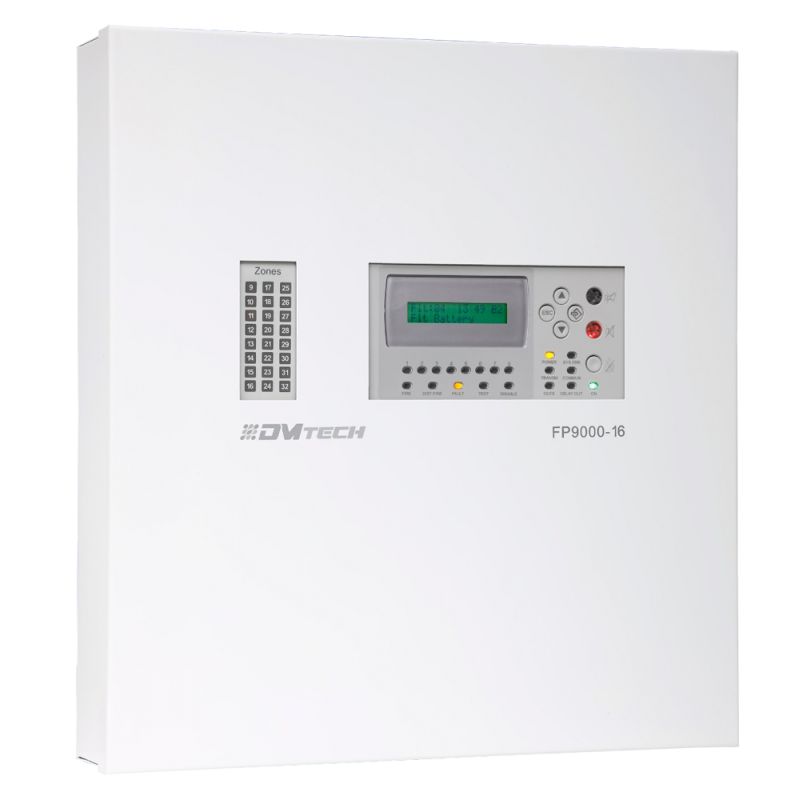

Dmtech DMT-FP9000-16-IT - Conventional central 16 areas with LCD screen, 2 Siren…
Conventional central 16 areas with LCD screen - 2 Siren output - 2 alarm and fault outputs and 6 configurable relay outputs - Repeater output - Up to 30 detectors per zone - End-of-line resistance auto detection
€510.00
Tax included
Reference
DMT-FP9000-16-IT
Brand
Dmtech
Dmtech DMT-FP9000-16-IT - Conventional central 16 areas with LCD screen, 2 Siren…
€510.00
You might also like
- DMTECH
- Conventional fire alarm panel of 16 zones
- Certificate EN54-2 and EN54-4
- 2 independent siren outputs
- 2 auxiliary alarm and fault outputs
- 6 configurable relay outputs
- Individual output for repeaters
- Capacity for 2 12V batteries
- 4 access levels ((3 user and 1 manufacturer)
- LCD display with menu for advanced programming
Features
- Conventional central 16 areas with LCD screen
- 2 Siren output
- 2 alarm and fault outputs and 6 configurable relay outputs
- Repeater output
- Up to 30 detectors per zone
- End-of-line resistance auto detection
Specs
| Primary power supply | Switching source 187-252V AC 50-60 Hz 65W max. |
| Backup power supply | 2 batteries 12VDC (up to 18 Ah). Ensures minimum 72 hours duration. |
| Available languages | Spanish, English, Portuguese, Italian, French, and German. |
| Number of zones | 16 zones, up to 30 detectors by area. |
| Siren outputs | 2 siren outputs 24VDC. Independent and monitored open collector outputs |
| Relay outputs | 8 Relay outputs: [VAR%] Alarm output, 1 Fault output and 1 configurable relay outputs. All support 30VDC 3A max. |
| End of line resistance | Areas fully monitored by end-of-line resistance (4.7K) |
| Auxiliary Output Voltage | 24VDC. Protected by resettable electronic fuse 1.85A |
| Protection Index | IP30 |
| Temperature | -5ºC~+45ºC |
| Material and colour | ABS, colour: White |
| Dimensions | 370 x 410 x 80 mm |
| Weight | 2.5Kg |
| Recommended cable | Fire cable with a minimum section of 1.0mm (18AWG). |
Package content
- Panels
- Battery cables
- Fusible
- End of line resistors
Data sheet
- Weight
- 2.5Kg
- Power
- Primary Battery: CR123A 5 years of life Secondary Battery: CR2032A 2 months of life
- Dimensions
- 88 x 88 x 59 mm (H x W x D)
370 x 410 x 80 mm - Frequency channels
- 7
- Temperature
- -5ºC~+45ºC
- Transmission frequency
- 60s default
- Operating Frequency
- 868.15MHz - 869.85MHz
- IP protection
- IP21
- Primary power supply
- Switching source 187-252V AC 50-60 Hz 65W max.
- Backup power supply
- 2 batteries 12VDC (up to 18 Ah). Ensures minimum 72 hours duration.
- Number of zones
- 16 zones, up to 30 detectors by area.
- Siren outputs
- 2 siren outputs 24VDC. Independent and monitored open collector outputs
- Relay outputs
- 8 Relay outputs: [VAR%] Alarm output, 1 Fault output and 1 configurable relay outputs. All support 30VDC 3A max.
- End of line resistance
- Areas fully monitored by end-of-line resistance (4.7K)
- Auxiliary Output Voltage
- 24VDC. Protected by resettable electronic fuse 1.85A
- Protection Index
- IP30
- Material and colour
- ABS, colour: White
- Recommended cable
- Fire cable with a minimum section of 1.0mm (18AWG).
- Certification
- EN54-11, EN54-25
- Communication distance
- 200m in open field
- Available languages
- Spanish, English, Portuguese, Italian, French, and German.
- Operating temperature range
- -30ºC ~ +55ºC
- Humidity (non condensing)
- 95% RH
- Type of modulation
- FSK
- Radiation power
- 5dBm (3mW)
Conventional central 16 areas with LCD screen - 2 Siren output - 2 alarm and fault outputs and 6 configurable relay outputs - Repeater output - Up to 30 detectors per zone - End-of-line resistance auto detection
