SELECT * FROM ps_od_oosbutton_manufacturer WHERE id_manufacturer = 230SELECT * FROM ps_od_oosbutton JOIN ps_od_oosbutton_lang USING (id_product) WHERE id_product = 14097 AND id_lang = 1 Hochiki SDP-3 Mounting box for Hochiki detectors in ducts with…
  • -35%
Hochiki SDP-3 Sdp-3
search
  • Hochiki SDP-3 Sdp-3

Hochiki SDP-3 Mounting box for Hochiki detectors in ducts with…

Mounting box for Hochiki detectors in ducts with 0.6 m pipe. allows a range of addressable, conventional or addressable photoelectric smoke detection devices to be installed on the outside of an air duct in order to control air within the duct.
€426.91 €656.79 Save 35%
Tax included
Reference SDP-3
Brand Hochiki
Quantity
Last items in stock

Free shipping
Hochiki SDP-3 Sdp-3

Hochiki SDP-3 Mounting box for Hochiki detectors in ducts with…

€426.91 €656.79 Save 35%

Hochiki SDP-3. Mounting box for Hochiki detectors in ducts with 0.6 m pipe. allows a range of addressable, conventional or addressable photoelectric smoke detection devices to be installed on the outside of an air duct in order to control air within the duct. Sdp-3.

Description

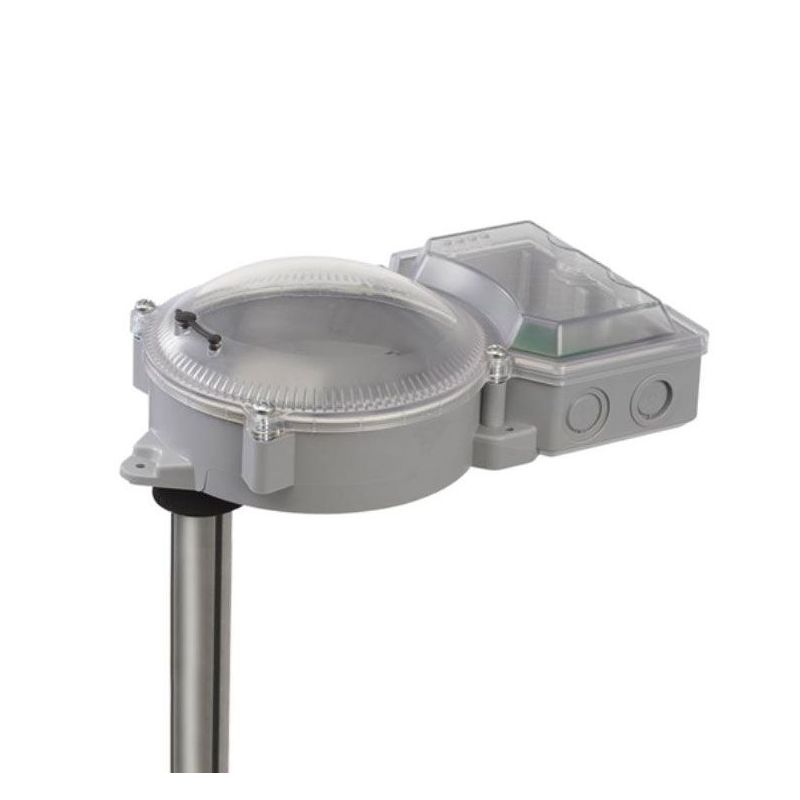

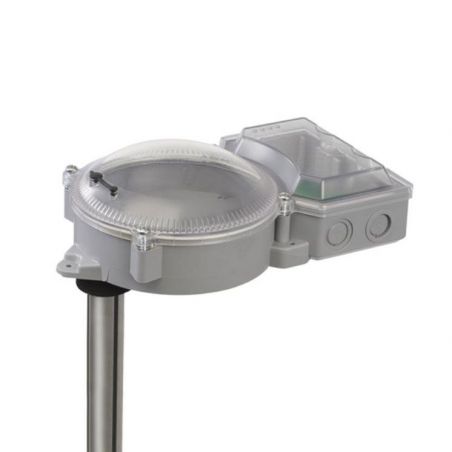

The SDP-3 is a Duct Probe housing allowing a standard photoelectric smoke detection device, either a conventional detector or an analogue sensor, to be mounted on the outside of an air duct for the purpose of monitoring the air within the duct. For installations where possible condensation could arise an optional cover is available (SDP-3 COVER).

Using an aspirating technique, the air within the duct is drawn via a pipe into the duct probe’s housing. This allows constant sampling with a standard, LPCB approved smoke detector, which makes smoke detection within the duct simple, effective and easy to maintain.

Features

  • Permite muestrear conductos de aire utilizando un detector o sensor estándar
  • Fits either square or round section ducting (with additional brackets)
  • One-tube air sampling system
  • Test hole on cover
  • Simple maintenance and installation
  • Easy wire installation
  • Suplied with a 1x0,6m tube

  • Acceps a range of Hochiki addressable or conventional smoke sensors/detectors (sold separately)


    Analog detectors: FOC-560 (ALN-EN-WHT), FOC-561 (ACC-EN-WHT), FOC-562

     (ATJ-EN-WHT)

    Analog base: FOC-566 (YBN-R/3-WHT) FOC-567

     (YBN-R/3-SCI-WHT)

    Conventional detectors: FOC-582

     (SLR-E3NM-WHT)

    Conventional base: FOC-585 (YBN-R/6M), FOC-595 (YBN-R/6-WHT)

Specs

- Working tempeature: -20°C ~ +50°C

- Storage temperature: -20°C ~ +70°C

- Maximum RH: 99% without condensation (a 40°C)

- Color: green

- Material: ABS plastic

- IP54

- Dimensions: 150 (An) x 100 (Al) x 280 mm

- Weight: 640 g

- FOC-706

Hochiki
