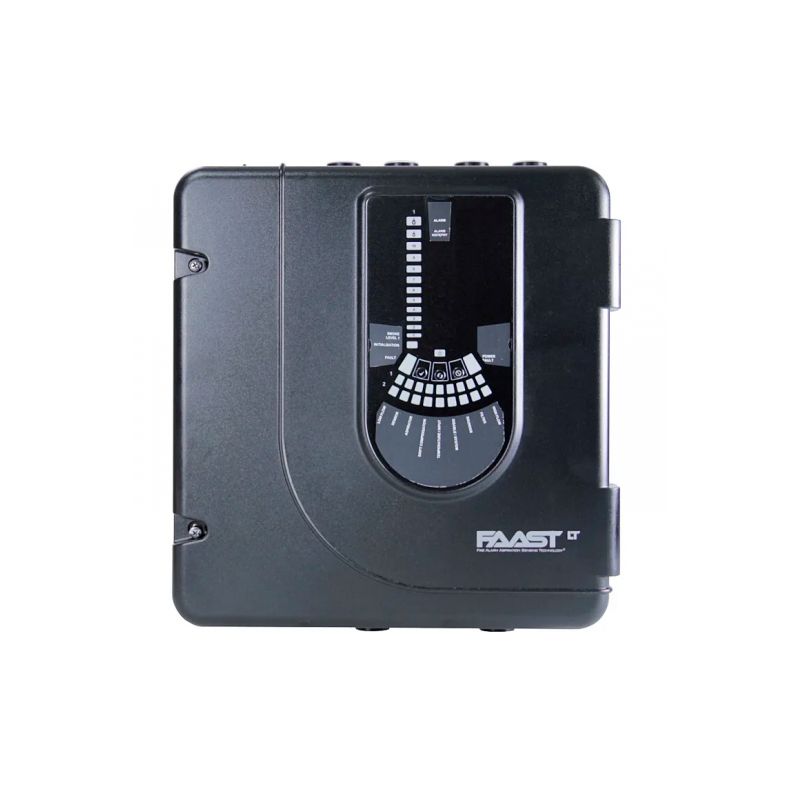

Notifier by Honeywell FL2022EI-HS. FAAST-LT suction system P / 2-channel analog loop / 2 Detectors. AM-8200 compatible Sistema de aspiracion faast-lt p/ lazo analogico 2 canal/2 detectores.compatible con central am-8200.

Features

FAAST-LT system of smoke analysis by aspiration of 2 independent channels / IP65, with direct connection to the AM-8200 loop model FL2022EI-HS with built-in isolator and local supervised siren output for each channel, also includes a control module of 2 addresses (01-159) on the door to monitor power and / or flow failure and two VIEW point sensors with 9 alarm levels and sensitivity prealarms that can be parameterized from the analogue control unit.

• System information by means of a pendulum-shaped graphic bar with 9 air flow levels to verify that the air flows according to the requirements of EN54-20.
• Internal point detector that incorporates manual and automatic test functions and decadic addressing (01-159) easily replaceable.
• Internal record of 2,244 events.
• Principle of dust discrimination by AWACS ™ algorithms.
• Includes easy access internal filter (FL-IF) and ultrasonic flow sensor.
• Configuration via standard USB cable and PipeIQ LT software (included).
• Compatible with OPAL 159 + 159 protocols (shows speed / flow values ??per channel).
• It has 2 sample pipe entries for each channel Max. 50 meters each, in a single line of 100 meters and 160 meters in T with up to 18 holes per channel in class C, 6 in class B and 3 in class A.
• Requires 24 Vdc power supply according to EN54-4.
• Maximum current consumption: 570 mA at 24 Vdc (without sirens (2 channels) and is supplied with software justifying design and PipeIQ LT configuration.
