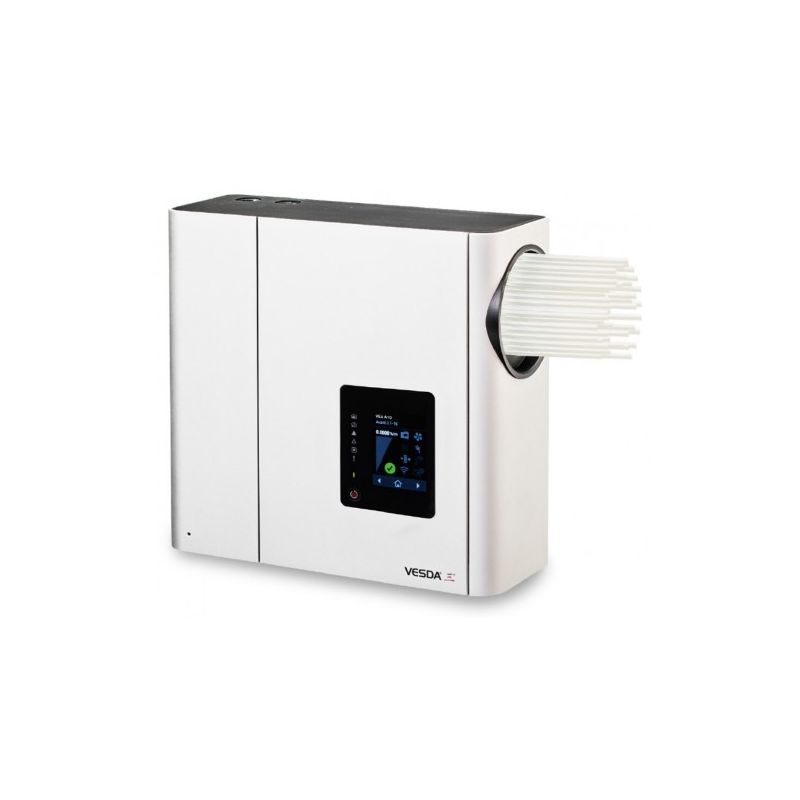

Notifier by Honeywell VEA-040-A10 VESDA-E-VEA-40 suction system…

Notifier by Honeywell VEA-040-A10. VESDA-E-VEA-40 suction system with 3.5 "screen Sistema de aspiracion vesda-e-vea-40 con pantalla de 3.5''.

Features

Aspiration Smoke Detector with Flair analysis chamber, consisting of double laser beam and microscopic vision for Artificial Intelligence analysis of particles. 3.5 ”color touch screen. Status indicator panel with 7 LED lights and multifunction button

• IP-40 Duralumin case. 7 programmable relays.
• 40 inputs for microtubes, which make up 40 different identifiable detection zones.
• 100 m maximum microtube length per input.
• Air flow monitoring for each sampling pipe inlet.
• Supervision to the point of sampling by air compression. Built-in and programmable microtube cleaning.
• Supervised air filter.
• Sensitivity range from 0.001 to 20% dimming per meter.
• 4 alarm levels (Alert, Action, 1st level of fire and 2nd level of fire), with sensitivity adjustment in each one.
• Maximum coverage area: 2,000 m2.
• Maximum pipe length of up to 800 m. (not included).
• Advanced data connection: VesdaNet, Ethernet and WiFi. E-mail engine and services for connection with Smartphone.
• Event log for more than one year of operation history.
• AutoLearn: Examines the environment, selects the most appropriate alarm levels and adjusts the air flow sensors automatically.
• Requires external 24 Vdc power. EN-54/20 Certificate - CPR and CE Marking.
• Class B High: 40 sampling shots - 1.6% obs / m.
• Class B Average: 40 sampling shots - 4.0% obs / m.
• Standard Class C: 40 sampling points - 8.0% obs / m.
