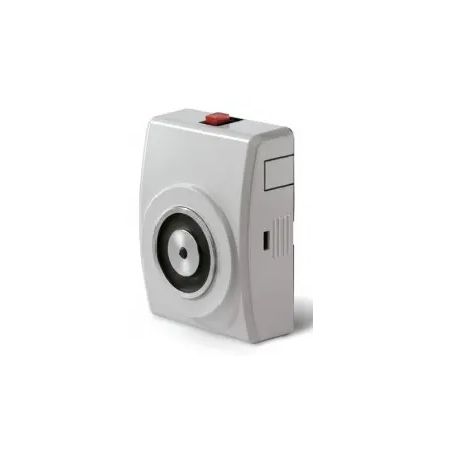

Honeywell 960119. Wall retainer 960119 800N with box and button, for fire door. 960119.

Features

• Wall retainer 960119 800N with box and button, for fire door.
• Plastic box reinforced with fiber and red release button.
• The device releases the door when the 24Vdc voltage stops being applied.
• Includes protection and polarization diode and articulated ferromagnetic plate.
• Current consumption: 92mA at 24V (2.2W).
• Force: 800N
• Door closer spring size: 3 to 7.
• Degree of protection: IP42 (Coil IP54).
• Weight: 1kg
• Mounting: Wall or floor with optional bracket 960129
• Dimensions: 110x85x38 mm
• Specification: EN1155: 1997 and EN14637: 2008
