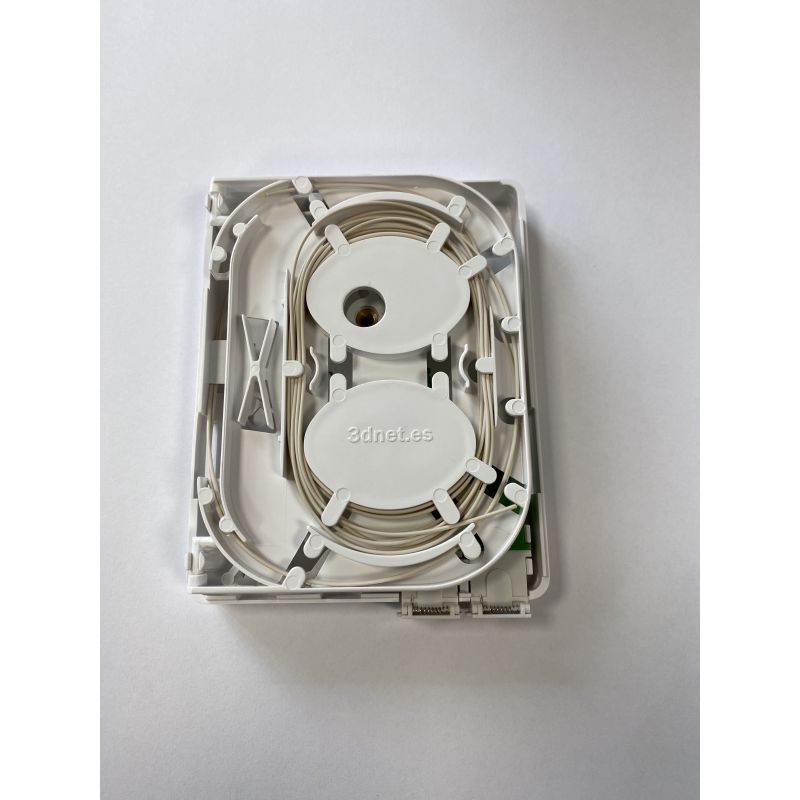

3dnet F.O terminal box with 2 pigtail SC/APC (2 SC/APC adapters + 2 SC/APC 1.5m pigtails)

ENDBOX-FO by 3dnet.es is designed to satisfy all the requirements of passive optical networks to the home or to the office (FTTx). It has been designed as the endpoint for up to two optical fibers in the interior of buildings. It has an area for the storing and organizing of the fibers, which ensures the maintaining of a minimum bend radius of 20 mm at any point in the box.

€9.13 €11.41 Save 20%
Tax included
Reference 7012901
Brand 3dnet
Quantity
Available in 24/48h

Free shipping

3dnet F.O terminal box with 2 pigtail SC/APC (2 SC/APC adapters + 2 SC/APC 1.5m pigtails)

€9.13 €11.41 Save 20%

ENDBOX-FO by 3dnet.es is designed to satisfy all the requirements of passive optical networks to the home or to the office (FTTx).

It has been designed as the endpoint for up to two optical fibers in the interior of buildings. Despite its simple design, it has an area for the storing and organizing of the fibers, which ensures the maintaining of a minimum bend radius of 20 mm at any point in the box.

It allows a fast termination of the fibers, which ensures a quick deployment and easy access in subsequent interventions.

Applications

  • FTTH
  • FTTD
  • FTTB

Features

  • Low cost solution.
  • Space efficiency.
  • Versatile solution.
  • Fiber reserve storage.
  • Storage area for splices, both mechanical and heatshrinkable fusion.
  • Allows for the patching of fibers to SC adapters.
  • Optional lock through a safety-pin screw.
  • Wall-mounting.

Specifications

Mechanics

  • Dimmensions 106 mm (height) x 83 mm (width) x 24 mm (depth)
  • Weight 0,1 Kg
  • Assembling On wall
  • Material ABS
  • Minimum bending radius 30 mm all the way
  • Laser radiation protection The adapters locations comes from the exposition to laser.

Connections

  • 2 Pigtails SC/APC SM 9/125 G-657 1,5m
  • 2 SC/APC Simplex Adapters
  • Multifiber cables allowed Monofiber, Bifibra, microduct
  • Pigtails types 900 µm fiber recommended

Enviromental conditions

  • Temperature range -20° a 40° C
  • Humidity range 0 a 90% without condensation
3dnet
