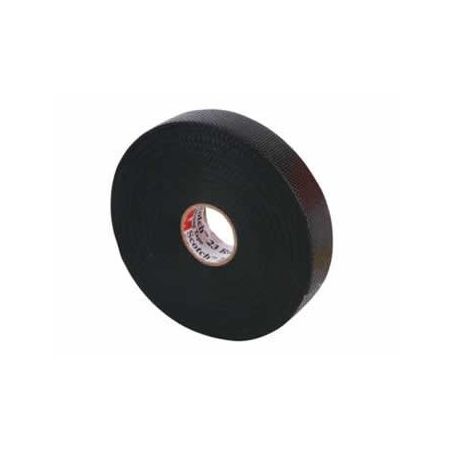

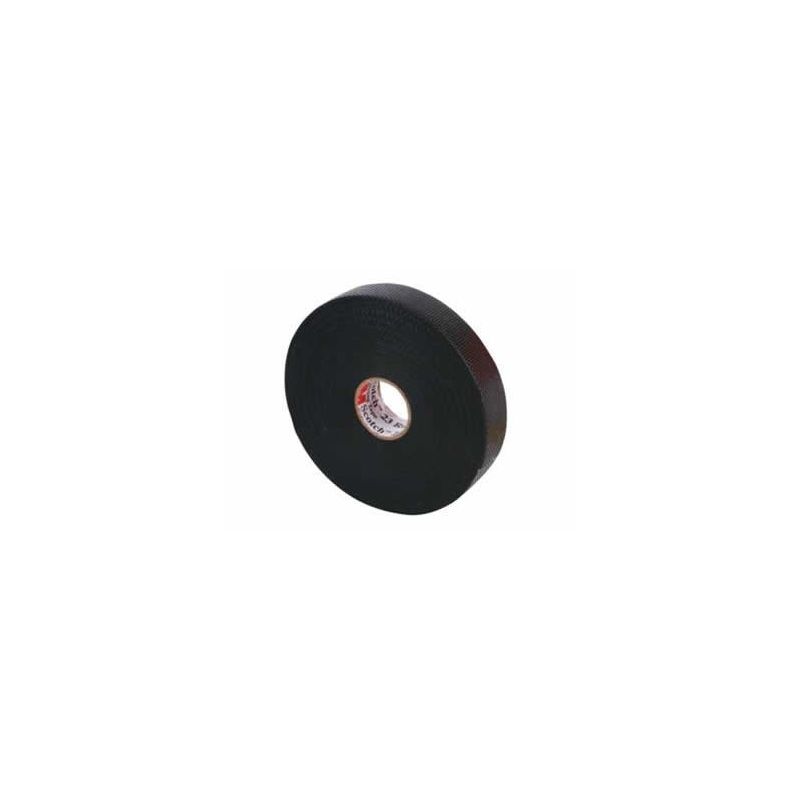

Professional self-sealing High Tension Vulcanized Tape 10m x 19mm
Professional self-sealing vulcanized tape length 10m by 19mm wide, without support, for the insulation of cables and connections up to 69 kV. Excellent electrical, chemical and physical properties. After drying, a total waterproofing is achieved.
€13.37
Tax included
Reference
ht-711-00402
Professional self-sealing High Tension Vulcanized Tape 10m x 19mm
€13.37
Features
Self-amalgamating, linerless tape for insulating and jacketing splices up to 69 kV
Excellent electrical, chemical and physical properties
Building stress cones and jacketing of terminations, bus bars and joints
Quicker application due to linerless design
Uniform and void-free layering
Very flexible to conform to the most complex shapes
Compatible with all extruded cable insulations
Certifications & Approvals
Application
HellermannTyton offers a comprehensive range of Vinyl, Rubber and Cloth Tapes for bundling, insulating, fixing, sealing and marking applications around all kinds of electrical applications. Vinyl electrical tapes are designed for low voltage applications and available in different dimensions and colours. Rubber tapes are suitable for sealing and insulating cables and splices in low, medium and high voltage applications. HelaTape Cloth tapes are extremely strong and ideal for identification, fixing, bundling and repair purposes. HelaTape Protect is used to build professional cable and wiring harnesses.
HelaTape Power 820 is suitable for following markets and industries
Electrical Installation
Electronics Industry
Telecommunication
Wind Energy Sector
Chemical Industry
Offshore Industry
Solar Energy Sector
Shipbuilding
Automotive Industry
Aerospace Industry
Defence Industry
Rail Transportation Sector
Product Dimensions
| Length (L) | 9.1m |
| Thickness (T) | 0.76mm |
| Width (W) | 19mm |
Material and Specifications
| Dielectric Strength | 31.5 kV/mm |
| Elongation at break | 750 % |
| ELV compliant Dir. Art. 4 (2) | YES |
| Halogenfree | No |
| Hazardous goods | No |
| Insulating (Yes/No) | Yes |
| Intermittent Operating Temperature | +130°C |
| Material | Ethylene Propylene Rubber (EPR) |
| Operating Temperature - °C | +90 °C |
| Self extinguishing (Yes/No) ETIM | Yes |
| Specifications |  |
| Suitable for high voltage (Yes/No) | Yes |
| Tensile Strength | 2.8N/mm² |
| Volume Resistance | 10¹⁶ Ω cm |
| Water Absorption | 0.06% |
Professional self-sealing vulcanized tape length 10m by 19mm wide, without support, for the insulation of cables and connections up to 69 kV. Excellent electrical, chemical and physical properties. After drying, a total waterproofing is achieved.
