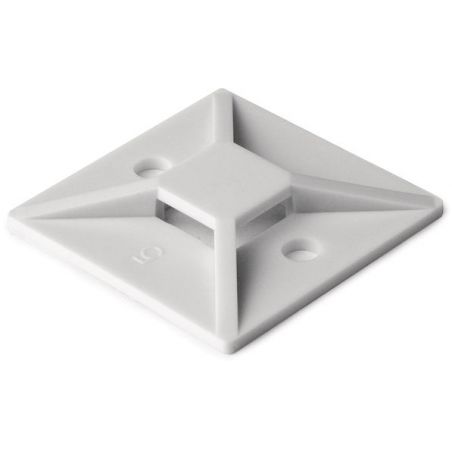

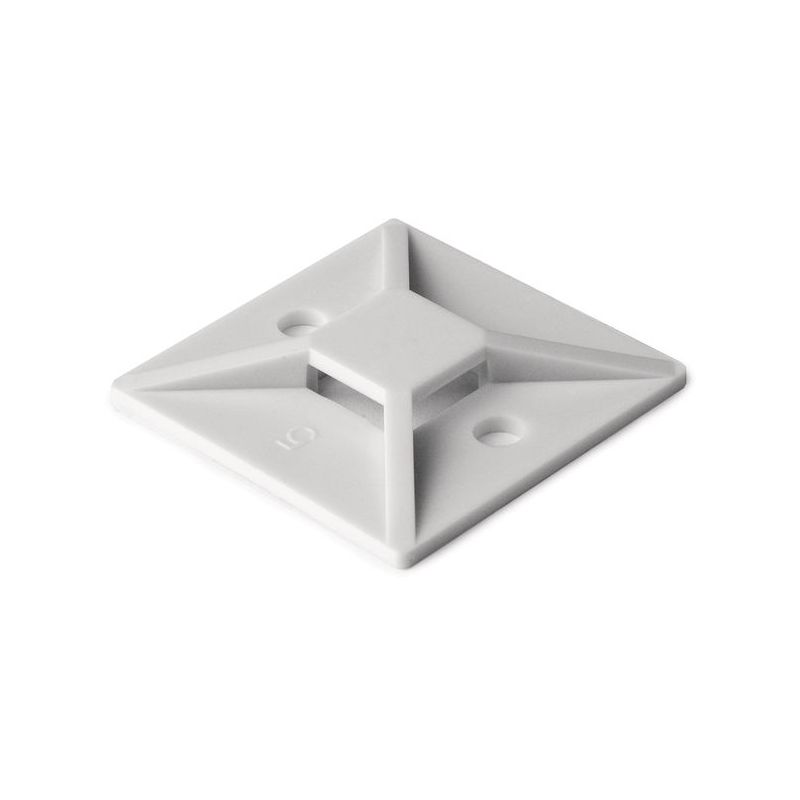

Adhesive Bases / Flange Screw MB3A HellermannTyton (100u)

Adhesive or screw versions. Simple to install with screw or bolt / stud. Very high safety, particularly in areas of high vibration.

€10.68

Tax included

Reference ht-151-28349

Brand HellermannTyton

Adhesive Bases / Flange Screw MB3A HellermannTyton (100u)

€10.68

Description
Product Details

Product characteristics

Adhesive or screw versions
Simple to install with screw or bolt / stud
Very high safety, particularly in areas of high vibration
Large area with adhesive for maximum adhesion and high peel strength
With 4 entries for cable ties for fast and flexible installation

Approvals and Homologations

Application

Adhesive bases are ideal where speed, simplicity, and firm fixation are required. Particularly suitable for use in control cabinets, telecommunications equipment or domestic appliances, where the use of holes, screws, or rivets are impractical or undesirable.

Series MB Square Cut, Adhesives, for Screwing is suitable for the following markets and industries:

Solar energy
Wind power
Railway transport
Electrical industry
Aerospace industry
Shipyards
Defending

Database

Amount per	pz
Product categories	Adhesive Bases / by Flange Screw
Color	White (WH)
Content	100Pzas
Description	Clip Adhesive MB3A
Product family	MB Series Square Cut, Adhesive, for Screwing
GLOBAL PART NAME	MB3A-PA66-WH
Fixing Method	Screw and Adhesive MountingDimensiones de Producto

Product Dimensions


Alt. (H)	3.8mm
Width (W)	19.0mm
Flange width max. (G)	4.1mm
Long. (L)	19.0mm
Long.Ejes.Aguj. (F)	13.2mm
Tensib.Adhes. (TA)	0.8
∅ Tal.Fij. (FH)	3.1 mm

Material and Specifications

Adhesive	Adhesive Synthetic Rubber with Polyethylene Foam
Certification for UNS Logos
ELV conform.	Yes
Flammability	UL 94 V2 (excluding adhesive)
Material	Polyamide 6.6 (PA66)
Hazardous Products	No
Temp. Work - °C	-40 °C a +85 °C
Temp. Adhesive work (ºC)	-40 °C a +60 °C
