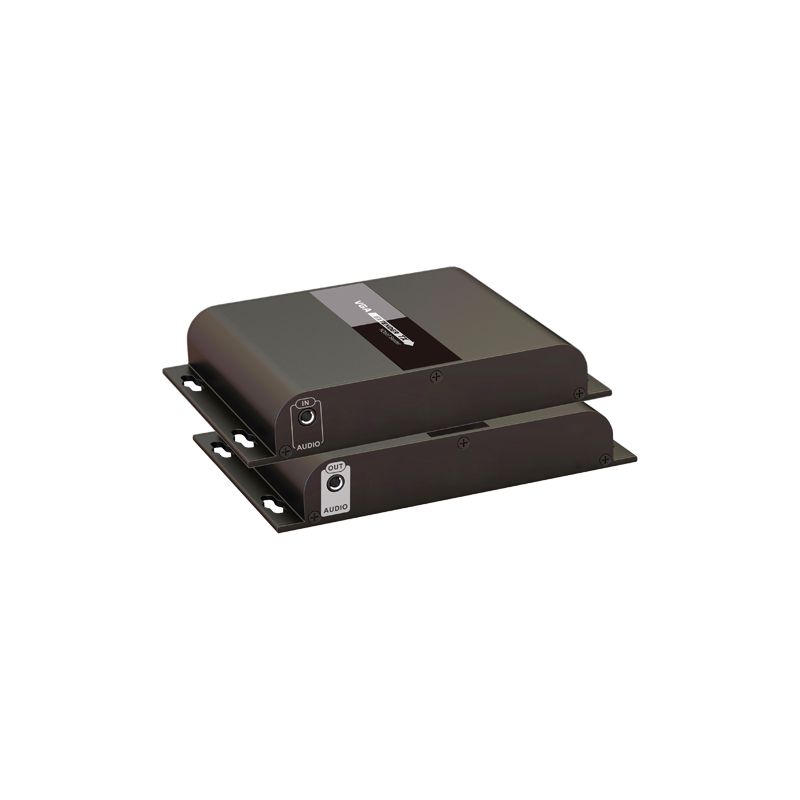

VGA-EXT-PRO - Active VGA extender, Transmitter and receiver, Range…

Active VGA extender - Transmitter and receiver - Range 120 m - Over cable UTP Cat 5/5e/6 - 1080P Full HD resolution - Point-to-point connection
Reference VGA-EXT-PRO
Brand Branded
Quantity

Free shipping
  • Pair of extenders (TX and RX) of VGA signal thru UTP cable
  • Maximum length 120 metres
  • Supports resolution 1080p
  • Allows point-to-point, router or multipoint connection (up to 253 receivers)

Features

  • Active VGA extender
  • Transmitter and receiver
  • Range 120 m
  • Over cable UTP Cat 5/5e/6
  • 1080P Full HD resolution
  • Point-to-point connection

Specs

Maximum distance 120 m
Extension cable UTP Cat 5/5e/6 (RJ45)
Signal Type VGA & Audio
Maximum resolution 1920x1080
Power 2 x DC 5 V / 2A
Dimensions transmitter/receiver 23.8 (H) x 138 (W) x 90 (D) mm
Receiver dimensions 68 (H) x 75 (W) x 25 (D) mm
Weight 215 g

Package content

  • TX Transmitter and RX Receiver
  • 2 x Power supply 5VDC / 2A
  • User instructions

Data sheet

Weight
215 g
Power
2 x DC 5 V / 2A
Power supply
2 x DC 5 V / 2A
Maximum resolution
1920x1080
Receiver dimensions
68 (H) x 75 (W) x 25 (D) mm
Maximum distance
120 m
Extension cable
UTP Cat 5/5e/6 (RJ45)
Signal Type
VGA & Audio
Dimensions transmitter/receiver
23.8 (H) x 138 (W) x 90 (D) mm
