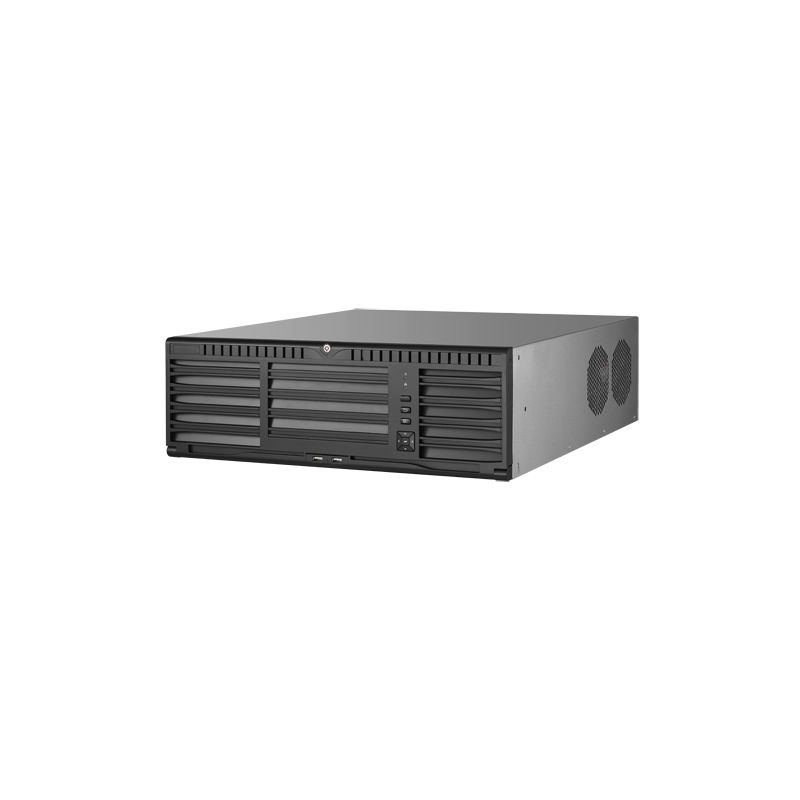

Safire SF-NVR816256H-4KY -

Data sheet

Power supply

2 x AC 100-240V, 550 W

Dimensions / Weight

146 (H) x 442 (W) x 494 (D) mm / 16 Kg

Communication

1 x USB 3.0 / 1 x USB 2.0 / 4 x RJ45 (Ethernet) 10/100/100M / 1 x eSATA

Inputs for IP cameras

LAN port up to 256 channels
Puerto LAN hasta 256 canales

IP compatible cameras

SAFIRE (native protocol), ONVIF

Bidirectional audio

1 input / 1 RCA output

Video compression format

H.265+ / H.265 / H.264+ / H.264

Display resolution

4000x3000, 3840x2160, 2560x1440, 1920x1080, 1280x1024, 1280x720, 1024x768

Total bandwidth

512 Mbps downstream / 512 Mbps upstream

Main Stream recording

12MP/8MP/6MP/5MP/3MP/1080P /UXGA /720P /VGA /4CIF /DCIF /2CIF /CIF /QCIF

Simultaneous multifunction

Pentaplex: Live, Recording, Playback, Backup and Remote Access

Alarms

16 in / 8 relay

Recording method

Manual, programmed, motion detection

External Backup

USB memory / HDD USB / CD-RW USB / DVR-RW USB

Internal memory

16 SATA HDD 3.5\" of up to 10 TB (not included)

Remote access

Web browser, Safire Control Center Smartphone App and PC Software

Video outputs

2 HDMI 4K, 1 VGA

PoE power supply

No

Raid

RAID0, RAID1, RAID5, RAID6, RAID10

Power over Ethernet

No
