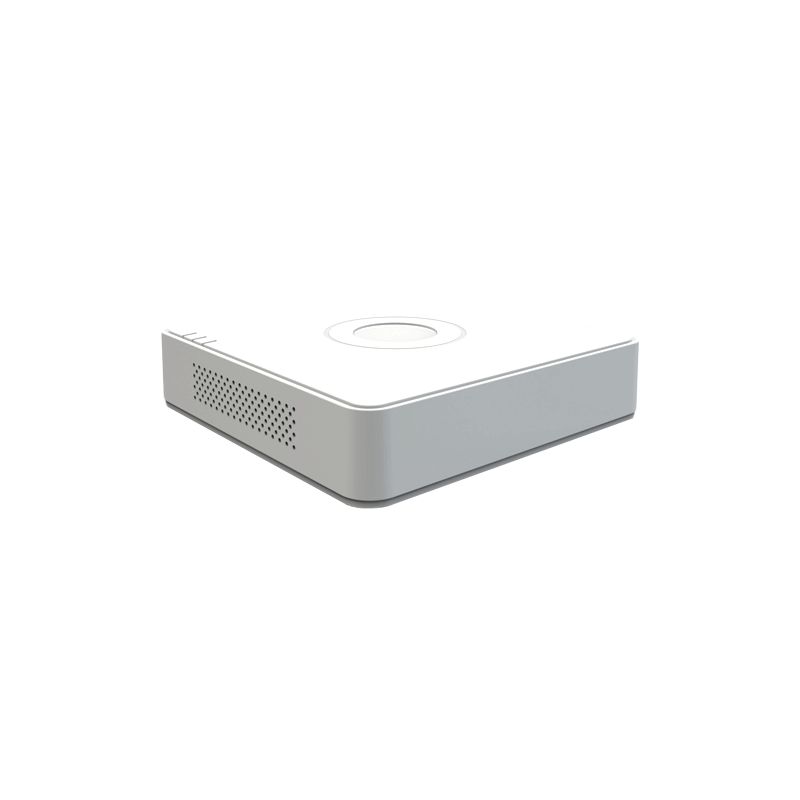

Hikvision DS-7104HGHI-SH -

Data sheet

Power supply

DC 12 V / 1.5 A

Dimensions / Weight

45 (H) x 200 (W) x 200 (D) mm / 0.8 Kg

Communication

2 x USB (Mouse and backup) / RJ45 (Ethernet)

Video format

HDTVI & Analogue CVBS

Video inputs

4 Channels BNC, HDTVI or CVBS interchangeable

Bidirectional audio

Reusing the audio input/output

Display resolution

1920x1080, 1280x1024, 1280x720, 1024x768

Simultaneous multifunction

Pentaplex: Live, Recording, Playback, Backup and Remote Access

Alarms

No

Recording method

Manual, programmed, motion detection

Internal memory

1 SATA 3.5\" HDD up to 4TB (not included)

Remote access

Web browser, Smartphone App IVMS4500 and PC Software IVMS4200

Video outputs

1 HDMI Full HD, 1 VGA

Main Stream coding

Channel 1~4: 1080p (1~12 FPS), 720p/VGA/WD1/D1/CIF (1~25 FPS)

Hybrid configuration

No

Audio inputs

1 Channel RCA

Recording resolution

1920x1080(1080p), 1280x720(720p), 960x576(WD1), 704x576(D1)...

Extra Stream coding

Channel 1~4: WD1/D1 (1~12 fps), CIF/QCIF (1~25 fps)

Backup

USB (Memory, HDD, CD-RW, DVR-RW) / Network

Video/Audio compression

H.264 / G.711
