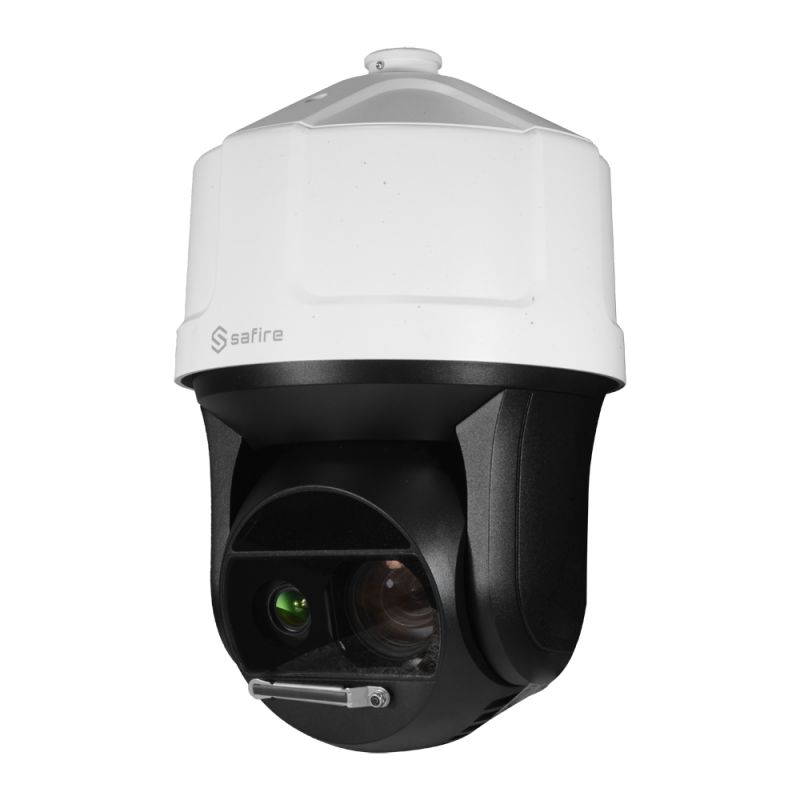

Safire SF-IPSD9936-2Y-L500 - 2 MP Motorised IP Camera, 1/1.8\" Progressive Scan…
search
  • Safire SF-IPSD9936-2Y-L500 - 2 MP Motorised IP Camera, 1/1.8\" Progressive Scan…

Safire SF-IPSD9936-2Y-L500 - 2 MP Motorised IP Camera, 1/1.8\" Progressive Scan…

2 MP Motorised IP Camera - 1/1.8" Progressive Scan CMOS - Compression H.265+/ H.265 / H.264+/ H.264 - 5.7~205.2 mm Lens (36X) Auto Iris - Intelligent Autotracking (People and Vehicles) | Audio | Alarm - Laser range up to 500 m
Reference SF-IPSD9936-2Y-L500
Brand Safire
Quantity

Free shipping

You might also like

  • Safire
  • PTZ IP Camera
  • High speed 280º/segundo
  • 36X Optical zoom
  • 1/1.8" Progressive Scan CMOS Ultra Low Light
  • 2 Megapixel (1920x1080)
  • 5.7-205.2 mm Varifocal lens
  • Laser range 500 m
  • Colour 0.002 Lux / B&W 0.0002 Lux
  • Intelligent Autotracking (people and vehicles)
  • Compression H.265+/H-265/H.264+/H.264
  • RJ-45 10/100 BaseT
  • High PoE
  • Weatherproof IP67
  • IR Cut
  • WDR
  • Alarms
  • Audio
  • SD card recording
  • WEB, CMS, Smartphone and NVR interface
  • ONVIF Compatible

Features

  • 2 MP Motorised IP Camera
  • 1/1.8" Progressive Scan CMOS
  • Compression H.265+/ H.265 / H.264+/ H.264
  • 5.7~205.2 mm Lens (36X) Auto Iris
  • Intelligent Autotracking (People and Vehicles) | Audio | Alarm
  • Laser range up to 500 m

Specs

BrandSAFIRE
Image sensor1/1.8" Progressive Scan CMOS
Resolution2 Megapixel (1920x1080)
Minimum illumination0.002 Lux (color) / 0.0002 Lux (B/W) / 0 Lux (Laser up to 500m)
CompressionH.265+/ H.265 / H.264+/ H.264
LensVarifocal 5.7~205.2 mm (Optical Zoom 36X)
Digital zoom16X
Electronic shutter1/1s~1/30,000s
Day / NightRemovable mechanical ICR filter
Image improvementsBLC, HLC, WDR, 3D-NR, AGC, AWB, MD, Privacy Masking, ROI
Video analysisIntelligent Autotracking (People and Vehicles), VCA: Tripwire | Area intrusion | Audio exception
Pan/Tilt RangeHorizontal: 0°~360°, Vertical: -20°~90° auto flip
Manual speedHorizontal: 0.1° ~ 350°/sec, Vertical: 0.1° ~150°/s
Speed between PresetsHorizontal: 280° /s, Vertical: 250° /s
Preset positions300 preset, 4 auto pattern, 8 auto tour, auto pan, auto scan
Internal memoryMicroSD card, Max 256 GB
Audio1 input (Line In) / 1 output (Line Out)
Alarms7 in / 2 out
PTZ ControlRS-485 and through network access
Network interfaceEthernet 10 / 100M BaseT
Remote accessWeb browser, Safire Control Center Smartphone App and PC Software
InteroperabilityONVIF, PSIA, CGI
PowerAC 24 V / 60W, Hi-PoE
Temp. operation-40º C ~ +70º C
Degree of protectionIP67 / Surges 6000V
MaterialAluminium alloy
Dimensions (without bracket)410 mm (H) x 266 (Ø) mm
Weight (without bracket)8000 g

Package content

  • SAFIRE Motorised IP dome camera
  • Installation material
  • 24VAC Power supply

Data sheet

Power
AC 24 V / 60W, Hi-PoE
Resolution
2 Megapixel (1920x1080)
Temp. operation
-40º C ~ +70º C
Degree of protection
IP67 / Surges 6000V
Power supply
AC 24 V / 60W, Hi-PoE
Material
Aluminium alloy
Audio
1 input (Line In) / 1 output (Line Out)
Image sensor
1/1.8\" Progressive Scan CMOS
Minimum illumination
0.002 Lux (color) / 0.0002 Lux (B/W) / 0 Lux (Laser up to 500m)
Lens
Varifocal 5.7~205.2 mm (Optical Zoom 36X)
Image improvements
BLC, HLC, WDR, 3D-NR, AGC, AWB, MD, Privacy Masking, ROI
Day / Night
Removable mechanical ICR filter
Pan/Tilt Range
Horizontal: 0°~360°, Vertical: -20°~90° auto flip
Manual speed
Horizontal: 0.1° ~ 350°/sec, Vertical: 0.1° ~150°/s
Preset positions
300 preset, 4 auto pattern, 8 auto tour, auto pan, auto scan
Alarms
7 in / 2 out
Internal memory
MicroSD card, Max 256 GB
Remote access
Web browser, Safire Control Center Smartphone App and PC Software
Compression
H.265+/ H.265 / H.264+/ H.264
Network interface
Ethernet 10 / 100M BaseT
Video analysis
Intelligent Autotracking (People and Vehicles), VCA: Tripwire | Area intrusion | Audio exception
Interoperability
ONVIF, PSIA, CGI
Digital zoom
16X
Electronic shutter
1/1s~1/30,000s
Speed between Presets
Horizontal: 280° /s, Vertical: 250° /s
PTZ Control
RS-485 and through network access
Dimensions (without bracket)
410 mm (H) x 266 (Ø) mm
Weight (without bracket)
8000 g
