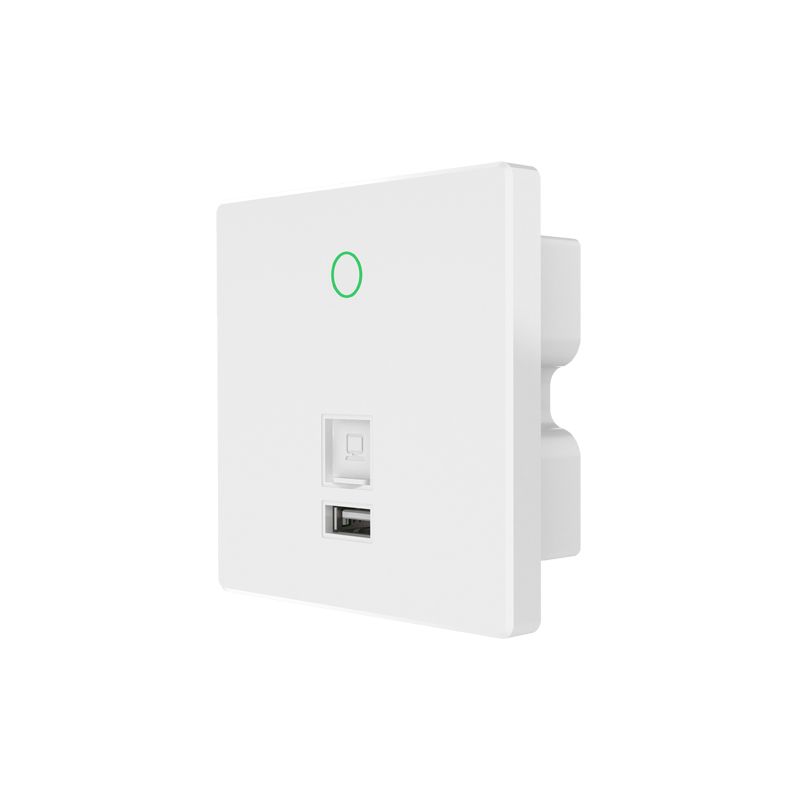

WIFI5-AP750-INWALL-AC - Access point Wifi 5, Frequency 2.4 and 5 GHz, Supports…

Access point Wifi 5 - Frequency 2.4 and 5 GHz - Supports 802.11 ac/n/g/b - Transmission speed up to 750 Mbps - Installation in mechanism boxes - INWALL WiFi Controller compatible
Reference WIFI5-AP750-INWALL-AC
Brand Branded
Quantity

Free shipping
  • WiFi 5 wireless access point
  • Wifi 802.11ac/n/g/b in 2.4 GHz and 5 GHz
  • Allows connections up to 750 Mbps
  • Double internal 2 dBi antenna
  • Qualcomm Chipset QCA9531+QCA9887
  • MultiSSID
  • Power by PoE
  • USB 2.0 port for charging 1A
  • LAN port 10/100 Mbps
  • WAN port 10/100 Mbps
  • Wi-Fi led on/off button
  • FAT and FIT firmware for centralized management through INWALL WiFi Controller
  • Wall installation in mechanism boxes
  • Temperature range from -20 to 55 °C
  • By installing in several rooms, they can provide complete Wi-Fi coverage to a home, business or SME with a single SSID, avoiding interference from overlapping wireless signals

Features

  • Access point Wifi 5
  • Frequency 2.4 and 5 GHz
  • Supports 802.11 ac/n/g/b
  • Transmission speed up to 750 Mbps
  • Installation in mechanism boxes
  • INWALL WiFi Controller compatible

Specs

Wireless standard WiFi 5 - 802.11 ac/n/g/b
Transmission speed Up to 433Mbps in 5GHz or 300Mbps in 2.4GHz
Frequencies 2.4GHz & 5GHz
Maximum power transmission EVM -28 dB
Maximum sensitivity -90dbm@MCS0
Integrated antenna 2 internal 2 dBi antennas in 2.4 GHz and 5 GHz
Operating modes Wireless Access Point, Repeater, Gateway
Security WEP/WPA2/SSID hidden/filtered by MAC and IP, Wireless isolation between clients
SSIDs Up to 4 SSID in 2.4 GHz and 4 SSID in 5 GHz
Management Configuration by FIT/FAT web interface and INWALL WiFi Controller
Interface 1 LAN 10/100Mbps, 1Port WAN Port 10/100Mbps
Power VDC IEEE PoE 48 802.3af
Operating temperature -20 °C ~ + 55 °C
Chipset Qualcomm QCA9531+QCA9887
Dimensions 86 (H) x 86 (W) x 35 (D) mm

Package content

  • Access Point
  • Mounting kit
  • Installation guide

Data sheet

Power
VDC IEEE PoE 48 802.3af
Dimensions
86 (Al) x 86 (An) x 35 (Fo) mm
86 (H) x 86 (W) x 35 (D) mm
Operating temperature
-20 °C ~ + 55 °C
Power supply
PoE 48 VDC IEEE 802.3af
VDC IEEE PoE 48 802.3af
Wireless Standard
WiFi 5 - 802.11 ac/n/g/b
Frequencies
2.4GHz & 5GHz
Maximum power transmission
EVM -28 dB
Maximum sensitivity
-90dbm@MCS0
Operating modes
Punto de acceso inalámbrico, Repetidor, Gateway
Wireless Access Point, Repeater, Gateway
Security
WEP/WPA2/SSID hidden/filtered by MAC and IP, Wireless isolation between clients
Management
Configuración por interfaz web FIT/FAT y Controller WiFi INWALL
Configuration by FIT/FAT web interface and INWALL WiFi Controller
Transmission speed
Up to 433Mbps in 5GHz or 300Mbps in 2.4GHz
Integrated antenna
2 antenas internas de 2 dBi en 2.4 GHz y 5 GHz
2 internal 2 dBi antennas in 2.4 GHz and 5 GHz
Interface
1 LAN 10/100Mbps, 1Port WAN Port 10/100Mbps
1 Puerto LAN 10/100Mbps, 1 Puerto WAN 10/100Mbps
SSIDs
Up to 4 SSID in 2.4 GHz and 4 SSID in 5 GHz
Chipset
Qualcomm QCA9531+QCA9887
Temperatura funcionamiento
-20 °C ~ + 55 °C
