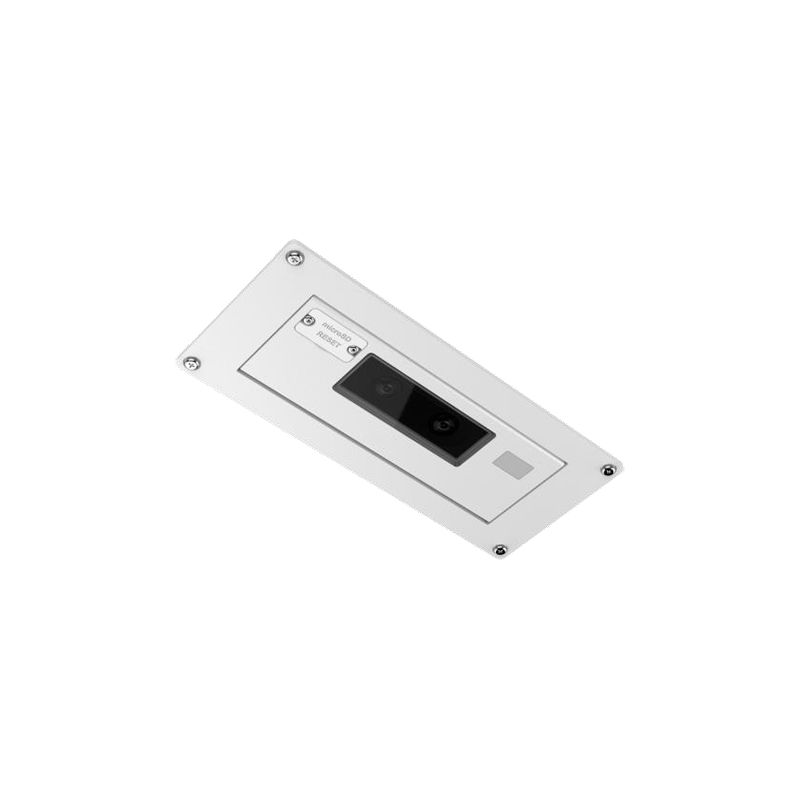

Safire SF-IPCOUNT-M -

Data sheet

Weight

850 g

Power

DC 12 V / 600 mA, PoE (IEEE802.3af)

Temp. operation

-30º C ~ +60º C

Degree of protection

Interior (Suitable for vehicle embarking)

Dimensions

100 (H) x 230 (W) x 50 (D) mm

Transfer Rate

32 Kbps ~ 16 Mbps

Power supply

DC 12 V / 600 mA, PoE (IEEE802.3af)

Material

Body: Metallic

Functions

3D-DNR, BLC

Audio

Integrated microphone

Image sensor

1/2.8” Progressive Scan CMOS

Lens

2 mm (H: 108º, V: 84º)

Maximum resolution

1920 x 1200

Day / Night

Auto / Programmable / Manual

Base dimensions

216 x 86 mm / 4 screws

Alarms

2 input / 2 output
2 input / 2 output (Supports up to 12 VDC, 30mA)

Internal memory

MicroSD Card, Max 128 GB (not included)

Remote access

Web browser, Safire Control Center Smartphone App and PC Software

Main Stream rate

1920 x 1200 (1 ~ 30 FPS)

Compression

H265+ / H.265 / H.264+ / H.264

Interoperability

ONVIF

People counting

Statistics of entries, exits and transit | Daily, weekly, monthly and annual reports

Other functions

Height Filter | Door Status Indicator

Infrared Illumination

3 m

Communication interface

1 x Ethernet 10/100M BaseT

Instalación recomendada

Installation height: 1.9 m | Área de detección: 0.55 m Installation height: 2.4 m | Área de detección: 1.93 m
