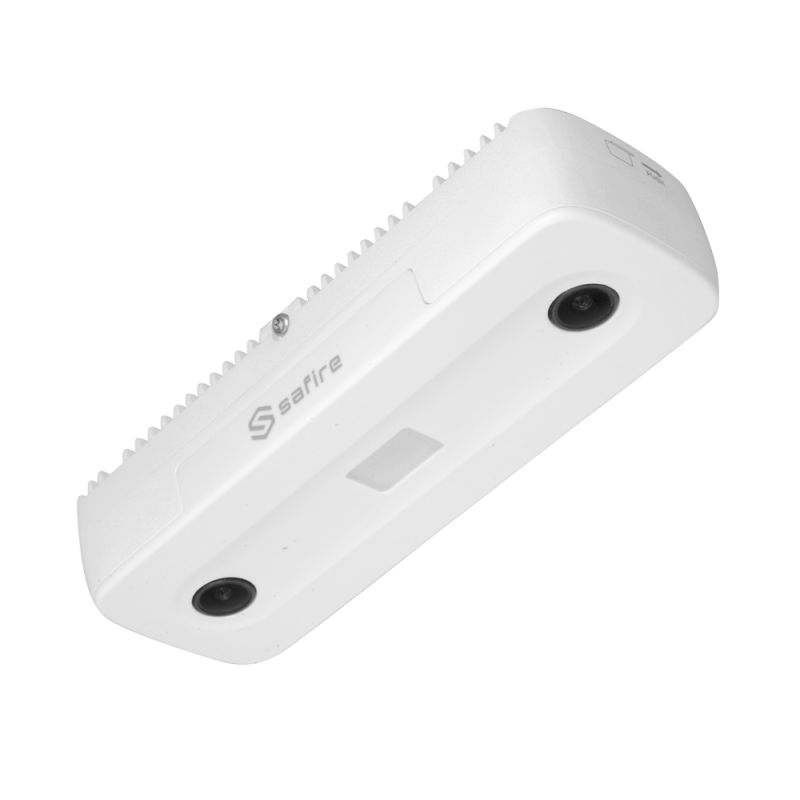

Safire SF-IPCOUNT-Y0200 - Safire people counting IP camera, 2 mm Lens, 1080P,…
search
  • Safire SF-IPCOUNT-Y0200 - Safire people counting IP camera, 2 mm Lens, 1080P,…

Safire SF-IPCOUNT-Y0200 - Safire people counting IP camera, 2 mm Lens,…

Safire people counting IP camera - 2 mm Lens - Resolution 1080P - Entry, exit and transit statistics - Alarms | PoE (IEEE802.3af) - Indoor use
Reference SF-IPCOUNT-Y0200
Brand Safire
Quantity

Free shipping

You might also like

  • Safire
  • IP people counting
  • Projects Range
  • Double sensor
  • 1/2.7" Progressive Scan CMOS
  • 2 mm Lens
  • Color Image (1920x1080)
  • IR LED Range 6 m
  • Ceiling installation
  • Displays on screen the count of entries, exits and transit
  • Compression H.265+ / H.265
  • RJ-45 10/100 Base
  • Built-in microphone
  • Alarms
  • PoE IEEE802.3af
  • WEB, CMS, Smartphone and NVR interface
  • ONVIF Compatible

Features

  • Safire people counting IP camera
  • 2 mm Lens
  • Resolution 1080P
  • Entry, exit and transit statistics
  • Alarms | PoE (IEEE802.3af)
  • Indoor use

Specs

BrandSafire
Image sensor1/2.7” Progressive Scan CMOS
Maximum resolution1920 x 1080
Main Stream rate1920 x 1080 (1 ~ 30 FPS)
CompressionH.265+ / H265 / H.264+ / H.264
Day / NightAuto / Programmable / Manual
Infrared Illumination6 m
Bitrate32 Kbps ~ 8 Mbps
Lens2 mm (H: 104º, V: 70.5º)
Functions3D-DNR, BLC, DWDR
Communication interface1 x Ethernet 10/100M BaseT
Alarms1 input / 1 output (Supports up to 24 VDC, 1 A)
AudioIntegrated microphone
People countingStatistics of entries, exits and transit | Daily, weekly, monthly and annual reports
Other functionsHeight Filter | Door Status Indicator
Remote accessWeb browser, Safire Control Center Smartphone App and PC Software
InteroperabilityONVIF
PowerDC 12 V / 600 mA, PoE (IEEE802.3af)
Temp. operation-30º C ~ +60º C
Degree of protectionInterior
MaterialBody: Metallic
Dimensions61 (H) x 168 (W) x 36 (D) mm
Base dimensions152 x 69 mm / 4 screws
Weight450 g

Package content

  • IP people counting
  • Bracket
  • CD with software and instructions
  • Sticker for installation

Data sheet

Weight
450 g
Power
DC 12 V / 600 mA, PoE (IEEE802.3af)
Temp. operation
-30º C ~ +60º C
Degree of protection
Interior
Suitable for outdoor installation IP66
Dimensions
61 (H) x 168 (W) x 36 (D) mm
Transfer Rate
32 Kbps ~ 8 Mbps
Power supply
DC 12 V / 600 mA, PoE (IEEE802.3af)
Material
Body: Metallic
Functions
3D-DNR, BLC, DWDR
Audio
Integrated microphone
Image sensor
1/2.7” Progressive Scan CMOS
Lens
2 mm (H: 104º, V: 70.5º)
Maximum resolution
1920 x 1080
Day / Night
Auto / Programmable / Manual
Base dimensions
152 x 69 mm / 4 screws
Alarms
1 input / 1 output
1 input / 1 output (Supports up to 24 VDC, 1 A)
Remote access
Web browser, Safire Control Center Smartphone App and PC Software
Main Stream rate
1920 x 1080 (1 ~ 30 FPS)
Compression
H.265+ / H265 / H.264+ / H.264
Interoperability
ONVIF
People counting
Statistics of entries, exits and transit | Daily, weekly, monthly and annual reports
Other functions
Height Filter | Door Status Indicator
Recommended installation
Installation height: 2.1 m | Detection area: 1.02 m Installation height: 2.6 m | Detection area: 2.30 m Installation height: 3.1 m | Detection area: 3.58 m Installation height: 3.6 m | Área de detección: 4.86 m Installation height
Infrared Illumination
6 m
Communication interface
1 x Ethernet 10/100M BaseT
