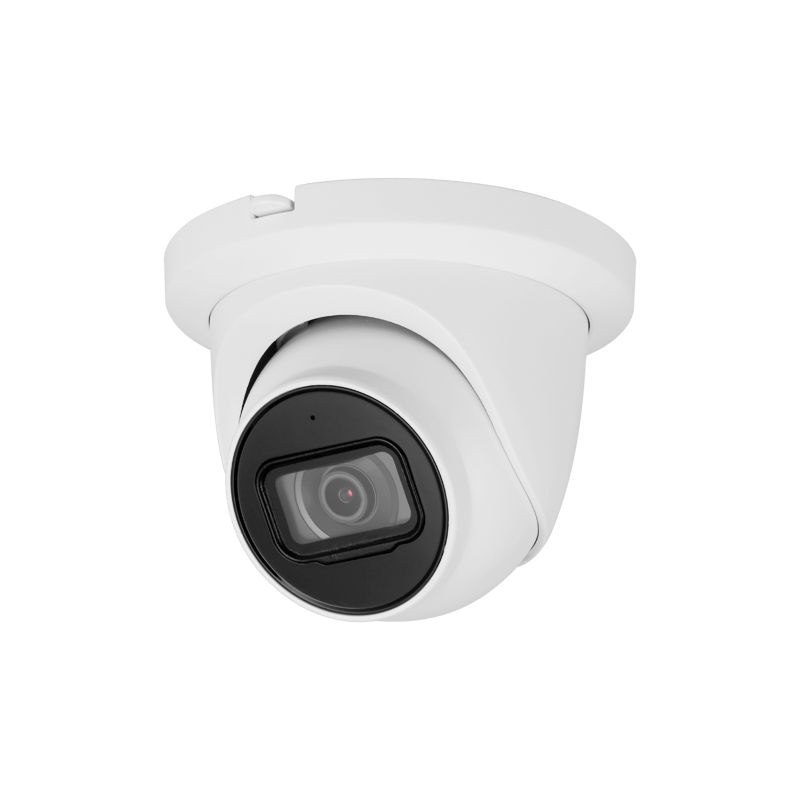

X-Security XS-IPT744SWHA-4U - Turret IP 4 Megapixel Camera Ultra Range, 1/3”…

Turret IP 4 Megapixel Camera Ultra Range - 1/3” Progressive Scan CMOS - Compression H.265+/H.265/H.264+/H.264 - 2.8 mm lens / 50 m IR LEDs Scope - WDR | | IP67 Integrated microphone - Recognition of humans and vehicles
Reference XS-IPT744SWHA-4U
Brand X-Security
Quantity

Free shipping

You might also like

  • X-Security
  • IP camera
  • Ultra Range
  • 1/3" Progressive CMOS
  • 4 Megapixel (2688x1520)
  • 2.8mm lens
  • High sensitivity Starlight
  • 0.005 Lux
  • IR Array Range 50 m
  • Compression H.265+/H.265/H.264+/H.264
  • RJ-45 10/100 BaseT
  • PoE IEEE802.3af
  • Weatherproof IP67
  • Recognition of humans and vehicles
  • Intelligent motion detection
  • WDR
  • IR Cut
  • Intelligent IVS functions
  • Integrated microphone
  • SD card recording
  • WEB Interface, CMS (DSS/ PSS), Smartphone and NVR
  • ONVIF Compatible

Features

  • Turret IP 4 Megapixel Camera Ultra Range
  • 1/3” Progressive Scan CMOS
  • Compression H.265+/H.265/H.264+/H.264
  • 2.8 mm lens / 50 m IR LEDs Scope
  • WDR | | IP67 Integrated microphone
  • Recognition of humans and vehicles

Specs

Brand X-SECURITY
Image sensor 1/3” Progressive CMOS
Maximum resolution 4 Megapixel (2688x1520)
Main Stream rate 2688x1520 (1~25/30fps)
Extra Stream rate 2º:704x576 (1~25fps), 704x480 (1~30fps) 3º:1280x720 (1~25/30fps)
Compression H.265+/H.265/H.264+/H.264
Lens 2.8 mm
Infrared lighting 0.005 Lux / IR LEDs (50 m)
Image improvements WDR, BLC, HLC, AWB, AGC, 3D-DNR
Day / Night Removable mechanical ICR filter
Network interface Ethernet 10/100 BaseT
Intelligent functions People and vehicle recognition, line crossing, intrusion,
Remote access WEB, CMS (DSS/PSS), Smartphone and NVR interface
Interoperability ONVIF
Power DC 12 V / 642 mA, PoE IEEE802.3af
Temp. operation -40º C ~ +60º C
Degree of protection Weatherproof IP67
Dimensions 99 mm (D) x 122 (Ø) mm
Weight 480 g

Package content

  • X-Security IP camera
  • Installation material
  • User instructions
  • CD with software and instructions

Data sheet

Weight
480 g
Power
DC 12 V / 642 mA, PoE IEEE802.3af
Temp. operation
-40º C ~ +60º C
Degree of protection
Weatherproof IP67
Dimensions
99 mm (D) x 122 (Ø) mm
Power supply
DC 12 V / 642 mA, PoE IEEE802.3af
Image sensor
1/3” Progressive CMOS
Lens
2.8 mm
Maximum resolution
4 Megapixel (2688x1520)
Infrared lighting
0.005 Lux / IR LEDs (50 m)
Image improvements
WDR, BLC, HLC, AWB, AGC, 3D-DNR
Day / Night
Removable mechanical ICR filter
Remote access
WEB, CMS (DSS/PSS), Smartphone and NVR interface
Main Stream rate
2688x1520 (1~25/30fps)
Extra Stream rate
2º:704x576 (1~25fps), 704x480 (1~30fps) 3º:1280x720 (1~25/30fps)
Compression
H.265+/H.265/H.264+/H.264
Network interface
Ethernet 10/100 BaseT
Interoperability
ONVIF
Intelligent functions
People and vehicle recognition, line crossing, intrusion,
