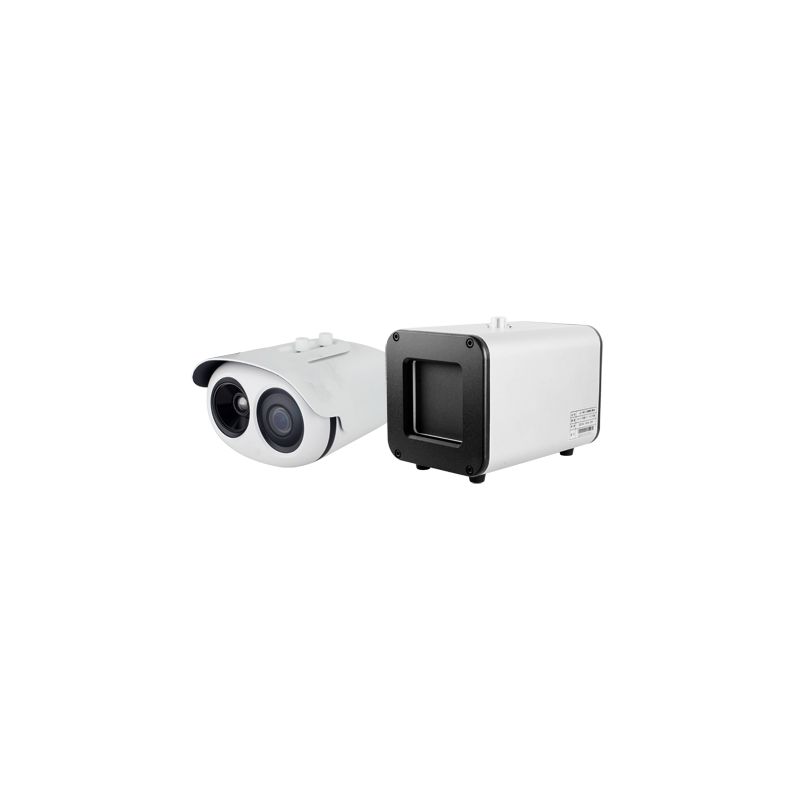

KIT-PANDA-BLACKBODY -

Data sheet

Weight

2 Kg

Power

12VDC (max. 10 W) / POE IEEE 802.3 af

Temp. operation

-30º C ~ +60º C

Degree of protection

Weatherproof IP66

Dimensions

212 mm (Fo) x 182 (An) x 136 (Al) mm

Power supply

12VDC (max. 10 W) / POE IEEE 802.3 af

Alarm

1 IN / 1 OUT

Audio

1 In / 1 Out

Lens

8 mm (Term) / 2.7 ~ 13.5 mm (Opt)
8 mm (Therm) / Motorised 2.7 ~ 12mm (Opt)

Viewing angle

46°×35.3° (Term) / 105º ~ 32º (Opt)

Internal memory

Micro SD card up to 128GB

Remote access

WEB, CMS and NVR interface

Main Stream rate

D1 (25fps) Thermal / 1920x1080, 1280x720(25fps) Optical

Extra Stream rate

CIF (25fps) Term, D1 / VGA / 640x360 / CIF / QCIF / QVGA (25fps) Optical

Compression

H.265 / H.264 / MJPEG

Network interface

1 x Ethernet 10/100 BaseT

Interoperability

ONVIF

Intelligent functions

Body temperature measurement, Face recognition with face search from an image (includes temperature information

Thermal sensor

400x300 Vanadium Oxide

Optical sensor

1/1.9” Progressive Scan CMOS 2 Megapixel

Thermal sensitivity

≤ 40mK (0.05 º C)

Thermal measurement range

-20 ~ 60ºC / High precision ± 0.3ºC (Only using blackbody)

Spectral range

8~14μm

Recommended installation

2 m of height

Minimum illumination (for optical part)

Colour: 0.01 Lux @ (F1.2, AGC ON), IR up to 50 m distance

Pixel size

17μm

Image Enhancement

True WDR (120 dB), Mirror, Defog, Motion Detection, Privacy Masking, Image Enhance DVE, ROI

Measurement Characteristics

Detection of up to 16 faces / second. Between 3 ~ 5 m detection distance
