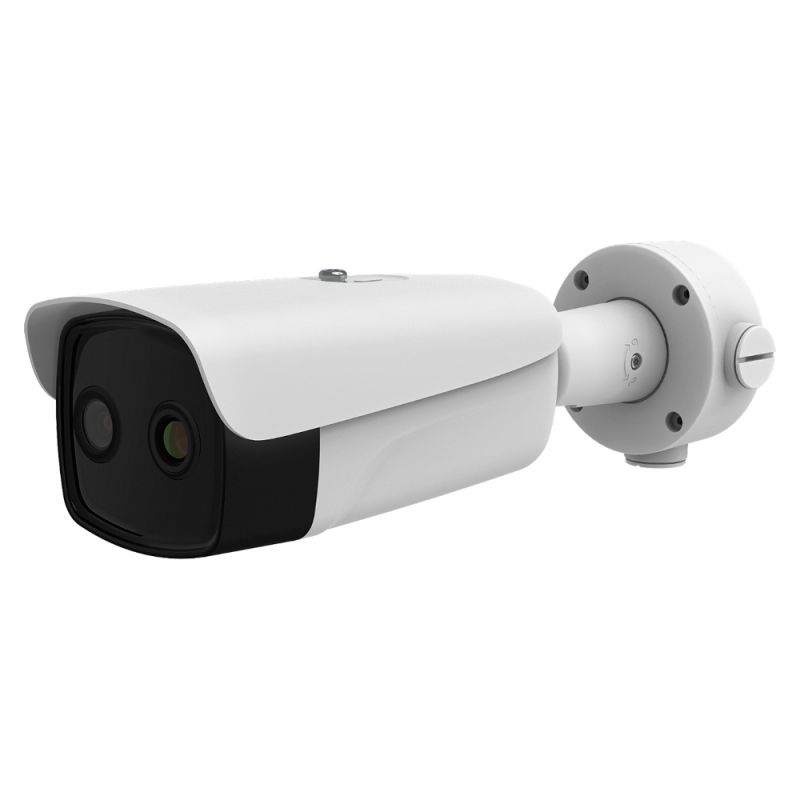

Safire SF-IPTB305THA-10Y -

Data sheet

Weight

1.82 Kg

Power

18~30VAC, 9~15VDC, PoE IEEE802.3at

Temp. operation

10º C ~ +35º C

Degree of protection

Weatherproof IP66

Dimensions

376.1 mm (Fo) x 118.1 (An) x 119.1 (Al) mm

Power supply

18~30VAC, 9~15VDC, PoE IEEE802.3at

Alarm

2 / 2 In / Relay

Audio

1 Input / 1 line level output 600 ohm

Lens

10 mm (Therm) / 4 mm (Opt)

Viewing angle

24.2°×18.4° (Term) / 84°×44.8° (Opt)
37.5°×28.5° (Term) / 84°×44.8° (Opt)

Internal memory

Micro SD card up to 256GB

Remote access

WEB, CMS (DSS/PSS), Smartphone and NVR interface

Main Stream rate

384x288(50fps) Thermal / 2560x1520 (25fps) Optical

Extra Stream rate

384x288 (50fps) Thermal / 704x576 (25fps) Optical

Compression

H.265+ / H.265 / H.264+ / H.264 / MJPEG

Network interface

Ethernet 10/100 BaseT

Interoperability

ONVIF

Installation height

1.7 - 2.5m

Intelligent functions

Body temperature measurement

Thermal sensor

384x288 Vanadium Oxide

Optical sensor

1/2.7” Progressive Scan CMOS 4 Megapixel

VCA ranges

3 temperature measurement rules, up to 21 rules in total (10 points, 10 areas and 1 line)

Thermal sensitivity

≤ 35mK (0.05 º C)

Thermal measurement range

30 ~ 45ºC / Alta precisión ± 0.5ºC (± 0.3ºC incluyendo Blackbody)
30 ~ 45ºC / High accuracy ± 0.5ºC (± 0.3ºC including Blackbody)
30 ~ 45ºC / High precision ± 0.5ºC

Spectral range

8~14μm

Pitch detector

17μm

Minimum illumination (for optical part)

Colour: 0.0089 Lux @ (F1.6, AGC ON), IR up to 50 m distance

Features in Measurement

Up to 30 face detections in the same scene / Between 2 ~ 7 m of distance in the detection
Up to 30 face detections in the same scene / Between 3 ~ 7 m of distance in the detection
