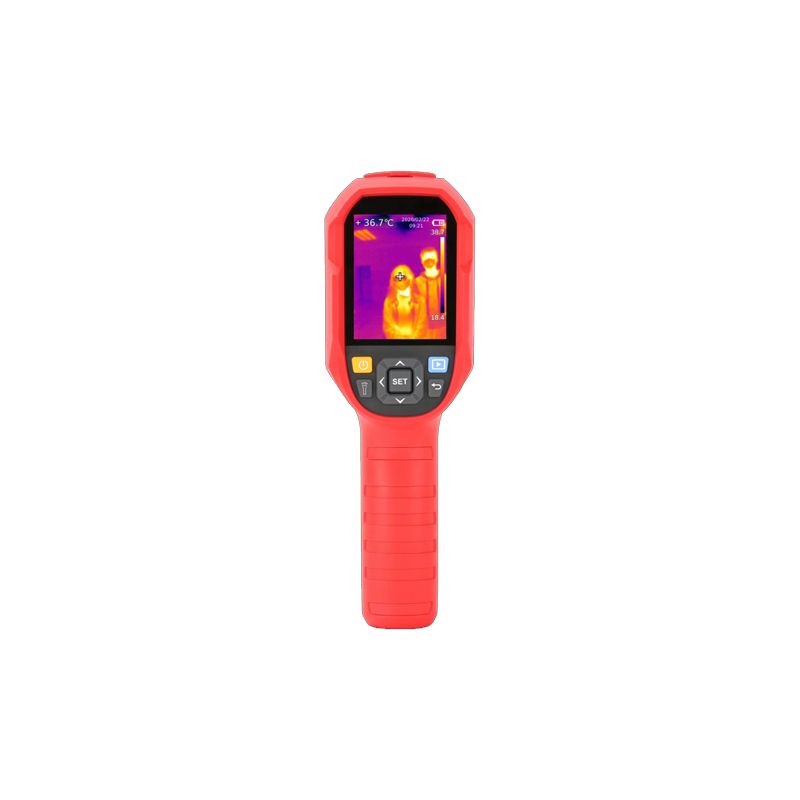

Safire SF-HANDHELD-160T05-E -

Data sheet

Weight

2200 g

Grado de protección

Impermeable IP66

Temp. operation

-40º C ~ + 65º C
15º C ~ + 30º C

Degree of protection

Weatherproof IP66

Dimensions

86 (Fo) x 236 (Al) x 75.5(An) mm
86(D) x 236(W) x 75.5(An)mm

Power supply

Batería de Litio 3.7V / 5000mAh
Batería de Litio 3.7V / 5000mAh Recargable
Lithium Battery 3.7V / 5000mAh Rechargeable
Lithium battery 3.7V / 5000mAh

Communication

USB Tipo C (para carga de batería)
USB Type C (for battery charging)

Viewing angle

56º x 42º

Internal memory

Micro SD card up to 16 GB
Micro SD card up to 16 GB (included)

Battery duration

5 horas
5 hours

Display

2.8\" TFT LCD Display (320x240)

Intelligent functions

Body temperature measurement
Temperature measurement

Thermal sensor

160x120 Vox

Thermal sensitivity

≤ 50mK

Spectral range

8~14um

Measurement range

30ºC ~ 45ºC

Precisión

± 0.5ºC

Accuracy

± 0.5ºC

Rango de Medición

30ºC ~ 45ºC

Field of view (thermal)

56º x 42º

Thermal sensitivity (NETD)

≤ 50mK

Usage Modes

Center Point, Measurement of Maximum and Minimum Temperature Point

Image Modes

Thermal

Image captures

Manual (trigger)

Light / Flashlight

Manual activation / Activation due to increase or decrease in temperature
