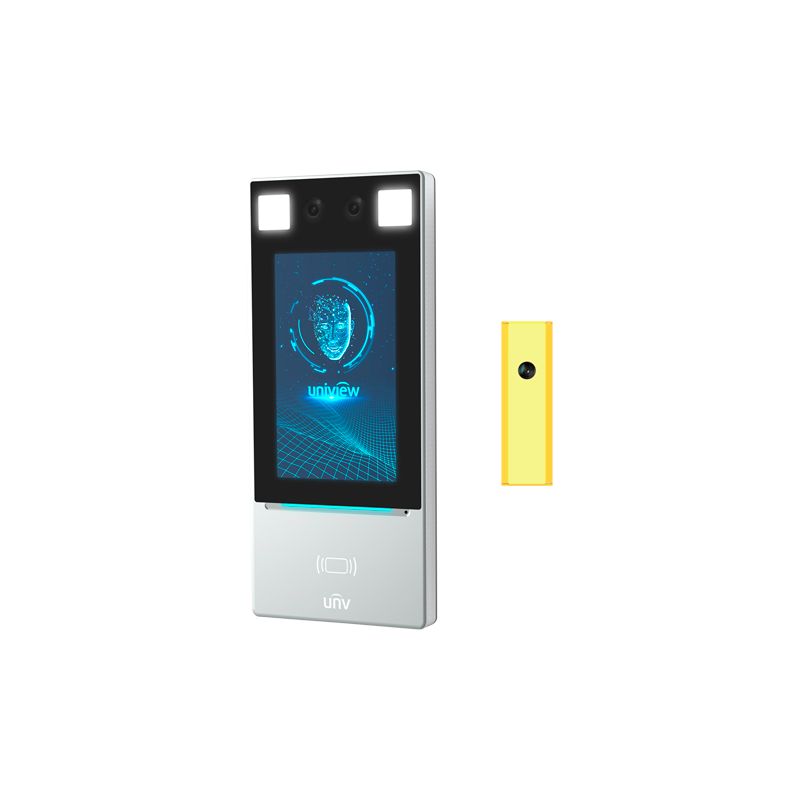

Uniview Easy UV-OET-213H-BTS1 - Access Control with Bracket, Detection of fever and…
search
  • Uniview Easy UV-OET-213H-BTS1 - Access Control with Bracket, Detection of fever and…

Uniview Easy UV-OET-213H-BTS1 - Temperature Access Control, Detection of fever and…

Temperature Access Control - Detection of fever and mask - Face recognition and Mifare card - 10.000 faces, 100.000 registrations - TCP/IP, USB | Wrist detection - Mounting on the wall or with a floor stand
Reference UV-OET-213H-BTS1
Brand Uniview Easy
Quantity

Free shipping
  • Uniview
  • Stand-alone biometric access control reader
  • Identification with facial recognition and Mifare card
  • Body temperature measurement
  • Accuracy ±0.3℃
  • Fever detection
  • Configurable alarm if the person isn't wearing a mask
  • 7" LCD color touch screen
  • Up to 10.000 faces & 100.000 registers
  • TCP/IP Communication
  • Integrated controller (Door sensor, Push-button & Relay)
  • Dual sensor camera for face recognition

Features

  • Temperature Access Control
  • Detection of fever and mask
  • Face recognition and Mifare card
  • 10.000 faces, 100.000 registrations
  • TCP/IP, USB | Wrist detection
  • Mounting on the wall or with a floor stand

Specs

Brand Uniview
Model OET-213H-BTS1
CPU Linux
Sensor Dual lens with IR and WDR
Activation sensor Infrared auto-activation
Read time < 0.5 Sec.
Capacity Up to 10.000 faces/cards
Records 100.000 registers
Identification modes Facial recognition
Sensor Thermopile
Temperature Range 30℃ - 45℃
Accuracy ±0.3℃
Temperature measuring distance 1 cm ~ 2.5 cm
Temperature Functions Mask detection alarm (Configurable), Fever detection alarm (Configurable), Opening only with mask (Configurable)
Proximity card Mifare card 13.56MHz
Screen 7" LCD Touch Screen
Screen Resolution 1024x600
Camera 2 MP with dual facial recognition sensor
Communication TCP/IP, USB, RS485
Integrated controller Door sensor, push button, door bell and relay
Inputs / Outputs 2 Alarm Inputs / Alarm 1 Output / Wiegand IN / Wiegand OUT
Software No. Stand alone device
Power DC 12 V / 2 A max.
Degree of protection Interior IP54
Temp. operation -20º C ~ +65º C
Dimensions 305 (W) x 134 (H) x 33 (D) mm
Weight 300 g

Package content

  • Uniview Biometric Device
  • Thermopile sensor
  • Wall bracket included
  • Mounting material
  • User instructions
Uniview Easy

Data sheet

Weight
300 g
Power
DC 12 V / 2 A max.
CPU
Linux
Temp. operation
-20º C ~ +65º C
Degree of protection
Interior IP54
Dimensions
305 (W) x 134 (H) x 33 (D) mm
Capacity
Up to 10.000 faces/cards
Screen
7\" LCD Touch Screen
Records
100.000 registers
Identification modes
Facial recognition
Proximity card
Mifare card 13.56MHz
Power supply
DC 12 V / 2 A max.
Communication
TCP/IP, USB, RS485
Activation sensor
Infrared auto-activation
Temperature range
30℃ - 45℃
Sensor
Dual lens with IR and WDR
Thermopile
Read time
≤ 0.5 sec.
Software
No. Stand alone device
Inputs / Outputs
2 Alarm Inputs / Alarm 1 Output / Wiegand IN / Wiegand OUT
Camera
2 MP with dual facial recognition sensor
Screen Resolution
1024x600
Integrated controller
Door sensor, push button, door bell and relay
Accuracy
±0.3℃
Temperature Functions
Mask detection alarm (Configurable), Fever detection alarm (Configurable), Opening only with mask (Configurable)
Temperature measuring distance
1 cm ~ 2.5 cm
