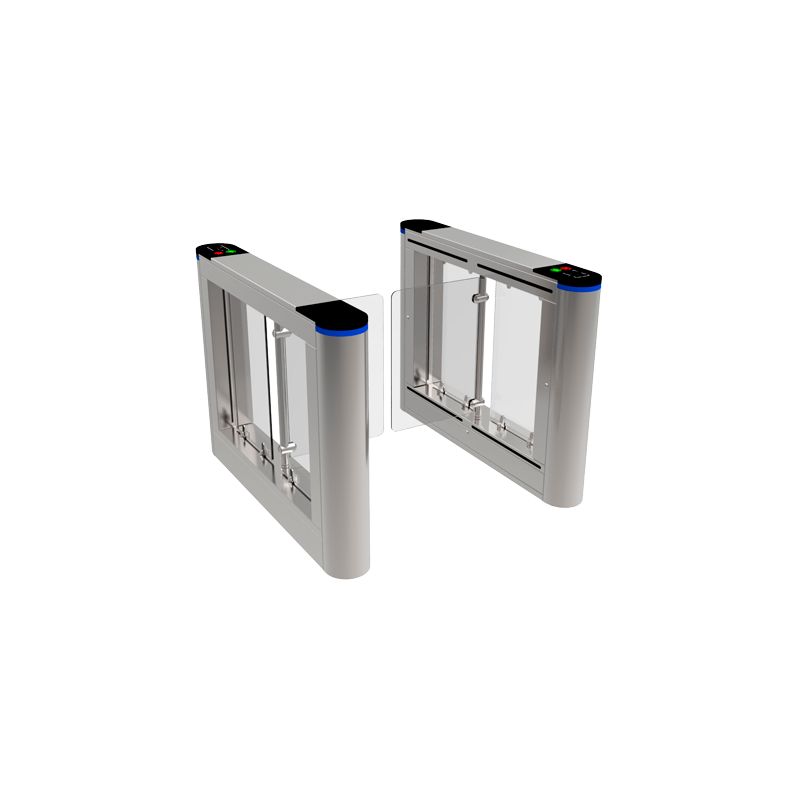

TS-SG801 - Two-way access turnstile, Double motorised aisle,…
Two-way access turnstile - Double motorised aisle - Times, Alarms, Opening Modes - Step dimensions 800 mm - Made of stainless steel SUS304 - Compatible with third party systems
Reference
TS-SG801
Brand
Branded
- Single-access double motorized turnstile
- Automatic movement of the acrylic barrier in the walking direction
- Access width 800 mm with ultra-thin poles
- Valid for disabled access
- Led indicator
- Emergency mode
- Main board with display for configuration of the turnstile (opening times, counter, relay inputs)
- Secondary board for connection to main board
- Made of stainless steel SUS304 and acrylic barriers
- Configuration Modes: One or two-way, One or two-way free movement
- Plug & Play compatible with third party access control systems
- Ergonomic design
- Universal covers for card readers
Features
- Two-way access turnstile
- Double motorised aisle
- Times, Alarms, Opening Modes
- Step dimensions 800 mm
- Made of stainless steel SUS304
- Compatible with third party systems
Specs
| Model | TS-SG801 |
| Controller | Turnstile control board compatible with any Access Control system with display |
| Led indicator | LED status indicator |
| Barrier movement | Opening angle of the acrylic barrier. In the direction of travel Input or Output |
| Emergency mode | Emergency barrier opening with fire signal |
| Security | Configurable anti-tailigating with sound and lock |
| Compatibility | Can be integrated with any third party access control Plug & Play / Universal Covers for RFID readers |
| Configuration Modes | One or two directions / Free passage in one direction and access control in the opposite direction |
| Manufacturing material | Stainless steel SUS304 with motorized acrylic doors and PC covers |
| Passage speed | 35-40 persons/minute |
| Reliability | 5.000.000 of cycles |
| Power | AC 110/220 V / 35W max. |
| Temp. operation | -25º C ~ +70º C |
| Lane Width | 800 mm |
| Dimensions of pass | 800 (W) x 1400 (D) mm (Suitable for persons with reduced mobility) |
| Dimensions | 1020 (H) x 185 (W) x 1400 (D) mm |
| Weight | 65 Kg |
Package content
- Turnstile
- Mounting material
- User instructions
- Security keys
Data sheet
- Weight
- 65 Kg
- Power
- AC 110/220 V / 35W max.
- Temp. operation
- -25º C ~ +70º C
- Dimensions
- 1020 (H) x 185 (W) x 1400 (D) mm
- Power supply
- AC 110/220 V / 35W max.
- Compatibility
- Can be integrated with any third party access control Plug & Play / Universal Covers for RFID readers
- Security
- Configurable anti-tailigating with sound and lock
- Led indicator
- LED status indicator
- Dimensions of pass
- 600 (w) x 1400 (d) mm
800 (W) x 1400 (D) mm (Suitable for persons with reduced mobility)
800 (W) x 1400 (D) mm (Suitable for the disabled) - Controller
- Not included, only turnstile control board compatible with any access control system
Turnstile control board compatible with any Access Control system with display - Barrier movement
- Opening angle of the acrylic barrier
Opening angle of the acrylic barrier. In the direction of travel Input or Output - Emergency mode
- Emergency barrier opening
Emergency barrier opening with fire signal - Lane Width
- 600 mm
800 mm - Configuration Modes
- One or two directions / Free passage in one direction and access control in the opposite direction
- Manufacturing material
- Stainless steel SUS304 with motorized acrylic doors and PC covers
- Passage speed
- 35-40 persons/minute
- Reliability
- 5.000.000 of cycles
Two-way access turnstile - Double motorised aisle - Times, Alarms, Opening Modes - Step dimensions 800 mm - Made of stainless steel SUS304 - Compatible with third party systems
