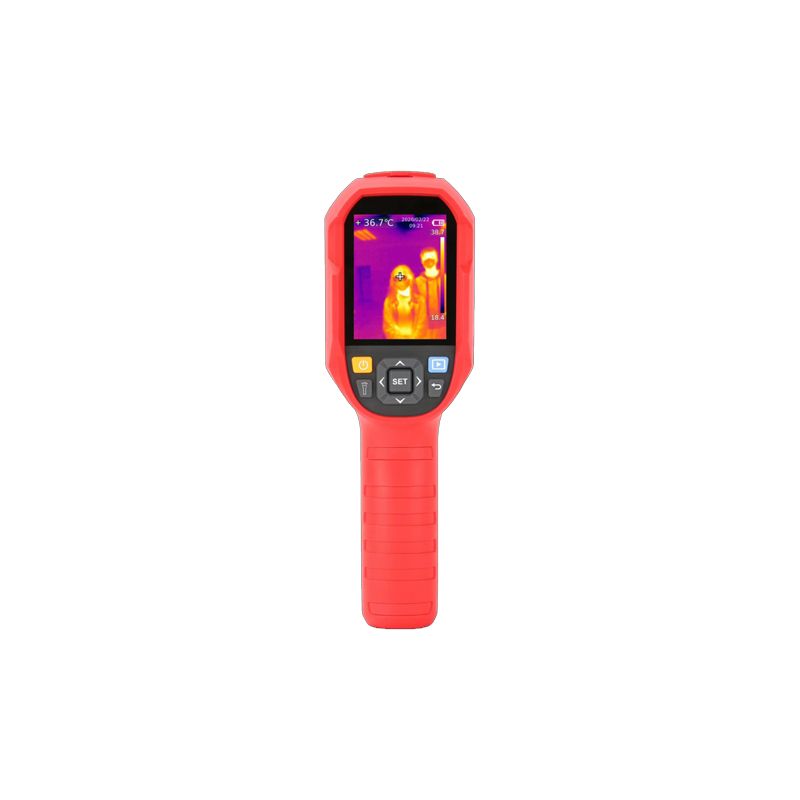

Uni-Trend SF-HANDHELD-260T05 - Handheld Thermographic Dual Camera, Real-time body…

Handheld Thermographic Dual Camera - Real-time body temperature measurement - Thermal resolution 256x192 | Accuracy ±0.5ºC - Thermal sensitivity ?50mK - Temperature measurement on faces at a distance of 3 m - Monitoring on external monitor through PC
Reference SF-HANDHELD-260T05
Brand Uni-Trend
Quantity

Free shipping

You might also like

  • Handheld Thermographic Dual Camera
  • Real-time body temperature measurement
  • Thermal resolution 256x192
  • Optical resolution 640x480
  • NETD ≤50mK
  • Accuracy ±0.5ºC
  • Temperature measuring range 30º ~ 45ºC
  • Detection distance 2 ~ 3m
  • Warning light in case of high temperature
  • Automatic image capture in visible spectrum with alarm for verification
  • Possible to switch between thermal and optical image in fusion percentage 0%, 25%, 50%, 75% and 100%
  • Display resolution 320x240
  • Tripod installation possible
  • Monitoring on external monitor via PC

Features

  • Handheld Thermographic Dual Camera
  • Real-time body temperature measurement
  • Thermal resolution 256x192 | Accuracy ±0.5ºC
  • Thermal sensitivity ?50mK
  • Temperature measurement on faces at a distance of 3 m
  • Monitoring on external monitor through PC

Specs

Thermal sensor256x192 Vox
Optical sensor640x480
Temperature Resolution0.1ºC
Field of view (thermal)56º x 42º
Accuracy± 0.5ºC
Thermal sensitivity (NETD)≤ 50mK
Spectral range8~14um
Intelligent functionsBody temperature measurement
Measurement Range30ºC ~ 45ºC
Usage ModesCenter point, Maximum and minimum temperature measurement, ROI function
Image ModesThermal, Visible, Fusion with optical image participation (Adjustable from 0%, 25%, 50%,75%and 100%), PIC
Image capturesManual (trigger) / Automatic
Internal memoryMicro SD card up to 16 GB (included)
Light / FlashlightManual activation / Activation due to increase or decrease in temperature
Display2.8" TFT LCD Display (320x240) / From external monitor via PC
CommunicationUSB Type C (for battery charging and PC connection for monitoring)
PC SoftwareLive Image, Event History, Audible Alarm Notification
InstallationTripod (Not included) or handheld
PowerLithium Battery 3.7V / 5000mAh Rechargeable
Battery duration5 hours
Temp. operation10º C ~ + 30º C
Degree of protectionWeatherproof IP66
Dimensions86(D) x 236(W) x 75.5(An)mm
Weight2200 g

Package content

  • Portable Thermographic Camera
  • User instructions
  • USB cable type C
  • 16GB MicroSD card
Uni-Trend

Data sheet

Weight
2200 g
Power
Lithium Battery 3.7V / 5000mAh Rechargeable
Temp. operation
10º C ~ + 30º C
Degree of protection
Weatherproof IP66
Dimensions
86(D) x 236(W) x 75.5(An)mm
Power supply
Lithium Battery 3.7V / 5000mAh Rechargeable
Communication
USB Type C (for battery charging and PC connection for monitoring)
Internal memory
Micro SD card up to 16 GB (included)
Battery duration
5 hours
Display
2.8\" TFT LCD Display (320x240) / From external monitor via PC
Installation
Tripod (Not included) or handheld
Intelligent functions
Body temperature measurement
Thermal sensor
256x192 Vox
Optical sensor
640x480
Spectral range
8~14um
Measurement range
30ºC ~ 45ºC
Accuracy
± 0.5ºC
Temperature Resolution
0.1ºC
Field of view (thermal)
56º x 42º
Thermal sensitivity (NETD)
≤ 50mK
Usage Modes
Center point, Maximum and minimum temperature measurement, ROI function
Image Modes
Thermal, Visible, Fusion with optical image participation (Adjustable from 0%, 25%, 50%,75%and 100%), PIC
Image captures
Manual (trigger) / Automatic
Light / Flashlight
Manual activation / Activation due to increase or decrease in temperature
PC Software
Live Image, Event History, Audible Alarm Notification
