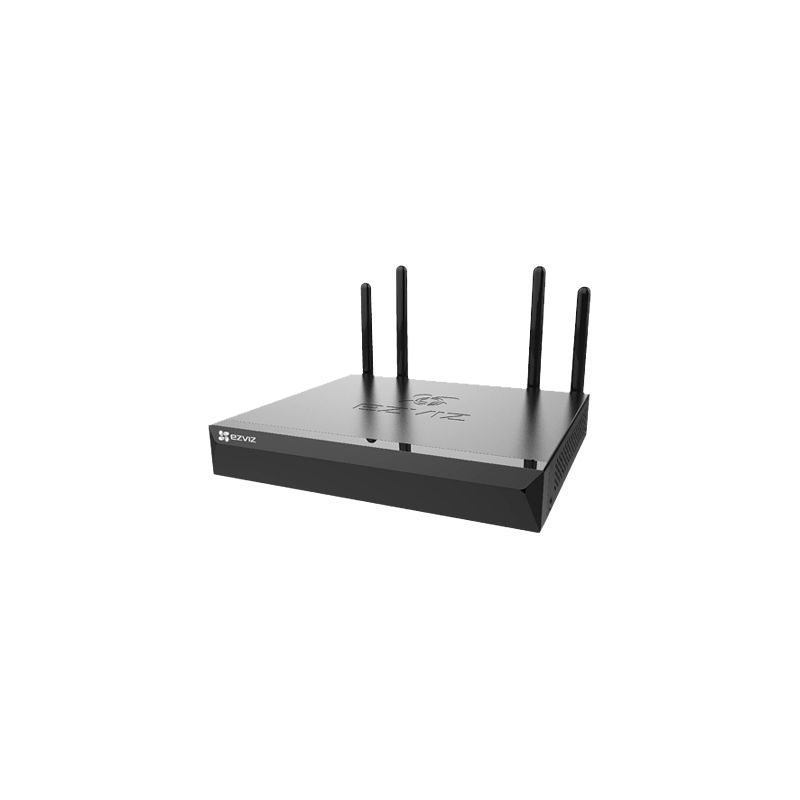

Ezviz Wifi NVR - 16 CH video / Compression H.265 - Resolution 5Mpx /200Mbps - Dual Wifi for cameras and router - HDMI & VGA Output - Supports 1 hard disk
Reference EZ-CS-X5S-16H
Brand Ezviz
Quantity

Free shipping

You might also like

  • EZVIZ
  • NVR WiFi for IP cameras
  • 16 CH
  • Dual 2.4 WiFi and 5 GHz for cameras
  • Open field WiFi 100m range
  • Wireless connection to WiFi router
  • Bandwidth 200 Mbps
  • 8 cameras on WiFi 2.4 GHz or 16 cameras on WiFi 5 GHz
  • Hasta 16 cámaras usando la conexión cableada
  • Maximum resolution 5 Megapixel
  • Compression H.265
  • 2K Simultaneous VGA and HDMI output
  • IP Dual Stream Access
  • Mouse
  • Space for 1 hard disk drive
  • Web interface, CMS and EZVIZ App

Features

  • Ezviz Wifi NVR
  • 16 CH video / Compression H.265
  • Resolution 5Mpx /200Mbps
  • Dual Wifi for cameras and router
  • HDMI & VGA Output
  • Supports 1 hard disk

Specs

BrandEZVIZ
Inputs for IP camerasLAN or WiFi port up to 16 channels
Communication via WiFi4 external antennas / Dual 2.4 band and 5 GHz with 100m an open field range
Dual link as access point for cameras and as client for WiFi router
Video compression formatH.265
Maximum resolution5 Mpx
Decoding capacity16 x 5 Mpx
Power over EthernetNo
IP compatible camerasEZVIZ (native protocol), ONVIF
Bidirectional audio1 input / 1 RCA output
Video outputs1 HDMI 2K, 1 VGA 1080p
Total bandwidth200 Mbps
Main Stream recording5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
Simultaneous multifunctionPentaplex: Live, Recording, Playback, Backup and Remote Access
AlarmsNo
Recording methodManual, programmed, motion detection
External BackupUSB / HDD USB memory
Internal memory1 SATA HDD 3.5" of up to 8 TB (not included)
Communication2 x USB 2.0 / 1 x RJ45 Gigabit (Ethernet)
Remote accessWeb Browser, EZVIZ Smartphone App
PowerDC 12V / 3A
Dimensions / Weight44.5 (H) x 270 (W) x 235 (D) mm / 1 Kg

Package content

  • EZVIZ NVR
  • Mouse
  • Power supply
  • Quick Guide
  • 8 MP / 6 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF

Data sheet

Power
DC 12V / 3A
Dimensions / Weight
44.5 (H) x 270 (W) x 235 (D) mm / 1 Kg
Communication
2 x USB 2.0 / 1 x RJ45 Gigabit (Ethernet)
Maximum resolution
5 Mpx
Inputs for IP cameras
LAN or WiFi port up to 16 channels
IP compatible cameras
EZVIZ (native protocol), ONVIF
Bidirectional audio
1 input / 1 RCA output
Video compression format
H.265
Total bandwidth
200 Mbps
Main Stream recording
5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
Simultaneous multifunction
Pentaplex: Live, Recording, Playback, Backup and Remote Access
Alarms
No
Recording method
Manual, programmed, motion detection
External Backup
USB / HDD USB memory
Internal memory
1 SATA HDD 3.5\" of up to 8 TB (not included)
Remote access
Web Browser, EZVIZ Smartphone App
Video outputs
1 HDMI 2K, 1 VGA 1080p
Decoding capacity
16 x 5 Mpx
Power over Ethernet
No
Communication via WiFi
4 external antennas / Dual 2.4 band and 5 GHz with 100m an open field range Dual link as access point for cameras and as client for WiFi router
