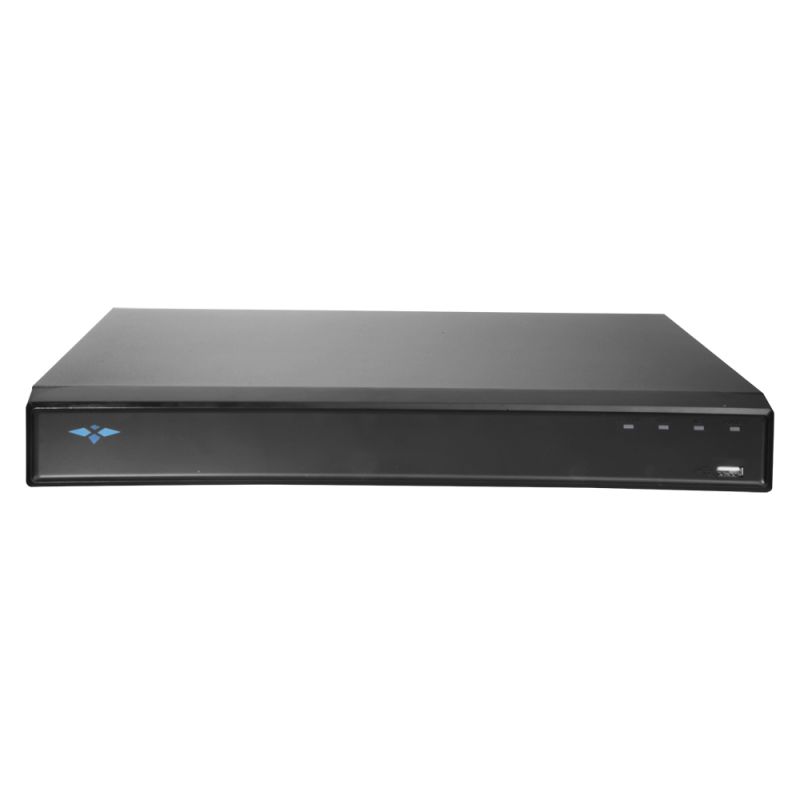

X-Security XS-XVR6116AH-2FACE -

Data sheet

Power

DC 12V / 2A

Dimensions / Weight

55 (H) x 325 (W) x 257 (D) mm / 1.3 Kg

Communication

RS485 (PTZ) /2 x USB (Mouse and backup) / RJ45 10/100 (Ethernet)

Video format

HDTVI / HDCVI / AHD / CVBS / IP

Video inputs

16 Channels BNC (HDTVI / HDCVI / AHD / CVBS)

Bidirectional audio

Reusing the audio input/output

Display resolution

1920x1080, 1280x1024, 1280x720

Total bandwidth

128 Mbps

Simultaneous multifunction

Pentaplex: Live, Recording, Playback, Backup and Remote Access

Recording method

Manual, programmed, motion detection, alarm

Internal memory

1 SATA HDD 3.5\" of up to 10 TB (not included)

Remote access

Web browser (ActiveX), mobile phone application or PSS software

Video outputs

1 HDMI 1080p, 1 VGA

Video / audio compression

H.265+/H.265/H.264+/H.264

Main Stream coding

5M-N(10 FPS), 4M-N/1080p(15 FPS), 1080N / 720p / 960H / D1 / CIF (25/30 FPS)

Hybrid configuration

Up to 24 IP Channels (6Mpx), replacing all the BNC channels

Audio inputs

16 Channel RCA

Audio outputs

1 Channel RCA

Recording resolution

5 M-N, 4 M-N,1080p, 1080N, 720p, 960H, D1, CIF

Extra Stream coding

D1 / CIF (1~15 FPS)

Backup

USB / Network

Video analysis

IVS: Tripwire | Area intrusion | Abandoned object | Face detection

Alarms IN/OUT

16 IN/3 Relay

Intelligent motion detection

Up to 16 channels capable of classifying targets amongst humans and vehicles

Facial recognition

Up to 2 analog channels for live face comparison
