Dahua XS-IPDM141-1EI - 720P IP Camera, 1/4” 1.0 Megapixel CMOS, H.264 /…

720P IP Camera - 1/4” 1.0 Megapixel CMOS - H.264 / MJPEG Compression - 3.6 mm Lens - 15 LED's Range 20 m - WEB, DSS/PSS, Smartphone and NVR
Reference XS-IPDM141-1EI
Brand Dahua
Quantity

Free shipping

You might also like

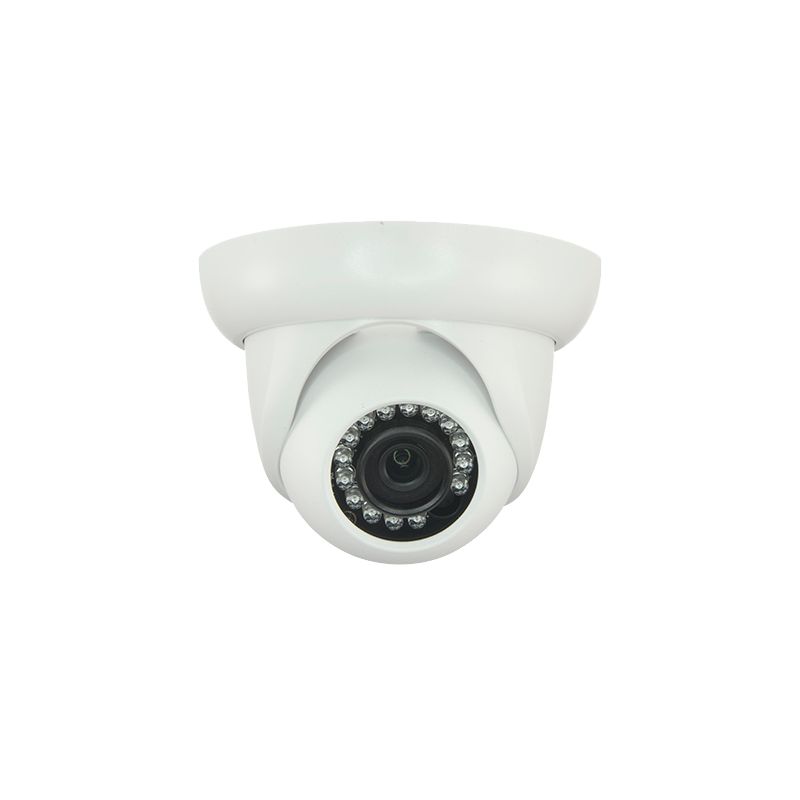

X-SECURITY IP camera IR dome format suitable for exterior.

It has an image sensor 1/4" 1.0 Megapixel Progressive Scan CMOS. Maximum resolution of 1.0 Megapixel (1280x720). Image compression format H.264 and MJPEG. Fixed lens of 3.6 mm, with a horizontal field of vision of 70º (wide angle). 15 IR LED's which activate automatically providing sharp images at 0 Lux (total darkness) at a maximum distance of 20m. It has automatic IR Cut filter that permits clear, real colour, daytime images.

Weatherproof, according to protocol IP66,, can be used for both interior and exterior. Supports PoE power supply, according to standard IEEE802.3af.

It has network output RJ45 that allows a powerful remote access via browser (multi-platform), by DSS/PSS software or free Application for smartphone. Supports Dual Stream, which gives fast and fluent access to the Internet. It supports DDNS of different suppliers for remote access from dynamic IPs. ONVIF Compatible.

Features

  • 720P IP Camera
  • 1/4” 1.0 Megapixel CMOS
  • H.264 / MJPEG Compression
  • 3.6 mm Lens
  • 15 LED's Range 20 m
  • WEB, DSS/PSS, Smartphone and NVR

Specs

Image sensor 1/4" 1.0 Megapixel Progressive Scan CMOS
Minimum illumination 0.1 lux @F1.2, 0 lux with IR
Maximum resolution 1.0 Megapixel (1280x720)
Main Stream rate 720P / D1 / CIF (1 ~ 25 FPS)
Extra Stream rate D1/CIF (1 ~ 25 FPS)
Compression H264 / MJPEG
Bitrate 56 Kbps ~ 8 Mbps
Lens 3.6 mm (H:70º)
Infrared lighting 0 Lux / 15 LED's (20 m)
Degree of protection Weatherproof IP66
Image improvements DWDR, BLC, HLC, AWB, AGC, 2D-NR, Privacy Masking
Day / Night Removable mechanical ICR filter
Network interface Ethernet 10/100 BaseT
Internal memory No
Alarms No
Audio No
Remote access WEB, CMS (DSS/PSS), Smartphone and NVR interface
Interoperability ONVIF
Power
 DC 12 V / 400 mA, PoE IEEE802.3af
Temp. operation
 -30º C ~ +60º C
Dimensions
 86 mm (H) x 108 (Ø) mm
Weight
 260 g

Package content

- X-Security IP Camera
- 3 plugs and 3 screws for mounting
- Sticker for installation
- Instructions
- CD with software and instructions

Data sheet

Weight
260 g
Power
DC 12 V / 400 mA, PoE IEEE802.3af
Temp. operation
-30º C ~ +60º C
Degree of protection
Weatherproof IP66
Dimensions
86 mm (H) x 108 (Ø) mm
Transfer Rate
56 Kbps ~ 8 Mbps
Audio
No
Image sensor
1/4\" 1.0 Megapixel Progressive Scan CMOS
Minimum illumination
0.1 lux @F1.2, 0 lux with IR
Lens
3.6 mm (H:70º)
Maximum resolution
1.0 Megapixel (1280x720)
Infrared lighting
0 Lux / 15 LED\'s (20 m)
Image improvements
DWDR, BLC, HLC, AWB, AGC, 2D-NR, Privacy Masking
Day / Night
Removable mechanical ICR filter
Alarms
No
Internal memory
No
Remote access
WEB, CMS (DSS/PSS), Smartphone and NVR interface
Main Stream rate
720P / D1 / CIF (1 ~ 25 FPS)
Extra Stream rate
D1/CIF (1 ~ 25 FPS)
Compression
H264 / MJPEG
Network interface
Ethernet 10/100 BaseT
Interoperability
ONVIF
