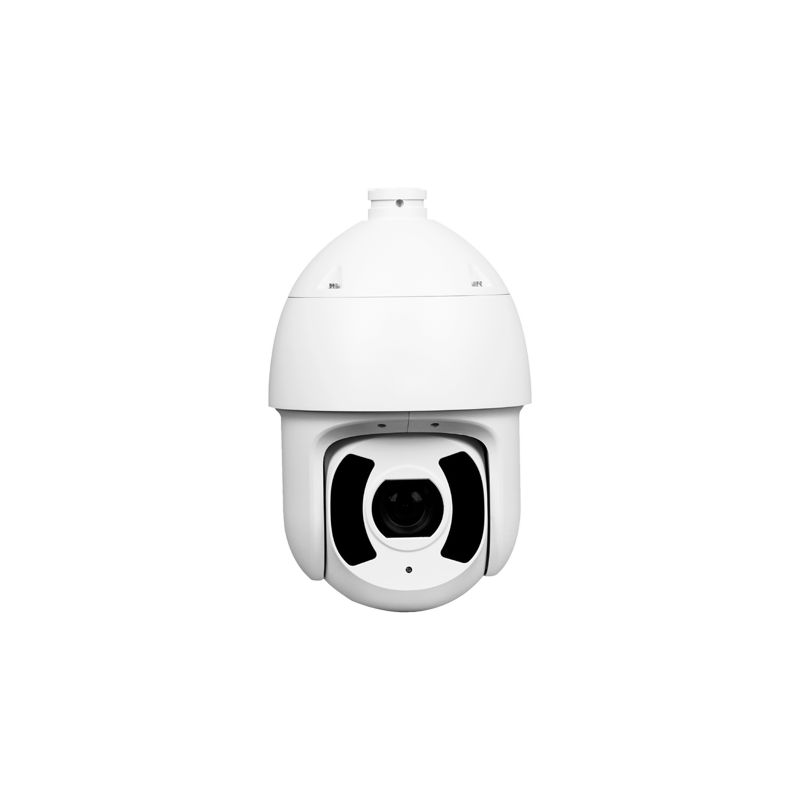

X-Security XS-IPSD8245ISWHTA-4U-AI - PTZ X-Security 4 Mpx Ultra Range IP Camera,…

PTZ X-Security 4 Mpx Ultra Range IP Camera - Autotracking / Face detection - WizSense: False alarm filter - Compression H.265+ / PoE+ - 3.95-177.75mm (X45) Vari-focal lens - Audio / Alarms / High speed 300º/segundo
Reference XS-IPSD8245ISWHTA-4U-AI
Brand X-Security
Quantity

Free shipping
  • X-Security
  • PTZ IP Camera
  • Ultra Range
  • High speed 300º/segundo
  • 45X Optical zoom
  • 1/2.8" Sony STARVIS™ CMOS Starlight
  • 4 Megapixel (2560x1440)
  • 3.95~177.75 mm Varifocal lens
  • High sensitivity Starlight
  • 0.005 Lux
  • IR Range 250 m
  • Compression H.265+/H.265/H.264+/H.264/MJPEG
  • RJ-45 10/100 BaseT
  • PoE+ 802.3at
  • Weatherproof IP67, Anti-vandal IK10
  • Audio
  • IR Cut
  • Alarms
  • Smart SMD features
  • EIS Stabilizing System
  • WizSense: False alarm filter for people and vehicles
  • Autotracking and face detection
  • SD card recording
  • WEB, CMS (DSS/PSS), Smartphone and NVR interface
  • ONVIF Compatible
  • Wall bracket included

Features

  • PTZ X-Security 4 Mpx Ultra Range IP Camera
  • Autotracking / Face detection
  • WizSense: False alarm filter
  • Compression H.265+ / PoE+
  • 3.95-177.75mm (X45) Vari-focal lens
  • Audio / Alarms / High speed 300º/segundo

Specs

Brand X-Security
Image sensor 1/2.8" STARVIS™ CMOS
Optical zoom 45X
Resolution 4 M (2560x1440) / 3 M (2948x1536) / 1080p (1920 × 1080) / 720P (1280× 720) / D1 (704 × 576/704 × 480) / CIF (352 × 288/352× 240)
Compression H.265+/H.265/H.264+/H.264/MJPEG (sub stream)
Main Stream rate 4M/3 M/1080p/1.3M/720p (1–30/25 fps)
Extra Stream rate 2º: D1 / CIF (1–25/30 fps), 3º:1080P / 720P (1–25/30 fps)
Bitrate H.265/H.264: 3 kbps–20480 kbps
Lens Varifocal 3.95 ~ 177.75 mm Auto Iris, Auto Focus
Digital zoom x16
Image improvements WDR (120dB),2D/ 3DNR, HLC, BLC, ATW, AGC, Privacy Mask, ROI
Minimum illumination 0.005 Lux (Color) / 0 lux (IR on)
Infrared lighting 0 Lux @ 250m range
Day / Night Removable mechanical ICR filter
Intelligent functions Autotracking, face detection, line crossing, abandoned object, intrusion, false alarm filtering for humans and vehicles
Audio 1 input (Line In) / 1 output (Line Out)
Alarms 7 inputs / 2 relay
Network interface Ethernet 10/100 BaseT
Remote access WEB interface, CMS software, mobile application and NVR
Memory Slot for Micro SD card (Max 256 GB)
Pan/Tilt Range Horizontal: 0°~360°, Vertical: -20°~90° auto flip 180°
Manual speed Horizontal: 0.1°~260° /s, Vertical: 0.1°~120° /s
Speed between Presets Horizontal: 300° /s, Vertical: 200° /s
Preset positions 300, 5 auto pattern, 8 auto tour, 5 auto scan
Communication DH-SD, ONVIF Compatible
Power AC 24 V / 3 A , PoE+(802.3at)
Degree of protection Weatherproof IP67, Anti-vandal IK10
Temp. operation -40º C ~ +70º C
Dimensions 337.4 mm (H) x 209 (Ø) mm
Weight 5900 g

Package content

  • Motorised IP PTZ camera
  • CD with software and instructions
  • PFB305W wall bracket

Data sheet

Weight
5900 g
Power
AC 24 V / 3 A, PoE+(802.3at)
Resolution
4 M (2560x1440) / 3 M (2948x1536) / 1080p (1920 × 1080) / 720P (1280× 720) / D1 (704 × 576/704 × 480) / CIF (352 × 288/352× 240)
Temp. operation
-40º C ~ +70º C
Degree of protection
Weatherproof IP67, Anti-vandal IK10
Dimensions
337.4 mm (H) x 209 (Ø) mm
Transfer Rate
H.265/H.264: 3 kbps–20480 kbps
Communication
DH-SD, ONVIF Compatible
Audio
1 input (Line In) / 1 output (Line Out)
Memory
Slot for Micro SD card (Max 256 GB)
Image sensor
1/2.8\" STARVIS™ CMOS
Minimum illumination
0.005 Lux (Color) / 0 lux (IR on)
Lens
Varifocal 3.95 ~ 177.75 mm Auto Iris, Auto Focus
Optical zoom
45X
Infrared lighting
0 Lux @ 250m range
Image improvements
WDR (120dB),2D/ 3DNR, HLC, BLC, ATW, AGC, Privacy Mask, ROI
Day / Night
Removable mechanical ICR filter
Pan/Tilt Range
Horizontal: 0°~360°, Vertical: -20°~90° auto flip 180°
Manual speed
Horizontal: 0.1°~260° /s, Vertical: 0.1°~120° /s
Preset positions
300, 5 auto pattern, 8 auto tour, 5 auto scan
Alarms
7 inputs / 2 relay
Remote access
WEB interface, CMS software, mobile application and NVR
Main Stream rate
4M/3 M/1080p/1.3M/720p (1–30/25 fps)
Extra Stream rate
2º: D1 / CIF (1–25/30 fps), 3º:1080P / 720P (1–25/30 fps)
Compression
H.265+/H.265/H.264+/H.264/MJPEG (sub stream)
Network interface
Ethernet 10/100 BaseT
Digital zoom
x16
Speed between Presets
Horizontal: 300° /s, Vertical: 200° /s
Intelligent functions
Autotracking, face detection, line crossing, abandoned object, intrusion, false alarm filtering for humans and vehicles
