X-Security XS-IPSD8245ITASW-2U-AI - PTZ X-Security 2 Mpx Ultra Range IP Camera,…

PTZ X-Security 2 Mpx Ultra Range IP Camera - Autotracking / Face detection - WizSense: False alarm filter - Compression H.265+ - 3.95-177.75mm (X45) Vari-focal lens - Audio / Alarms / High speed 300º/segundo
Reference XS-IPSD8245ITASW-2U-AI
Brand X-Security
Quantity

Free shipping

You might also like

  • X-Security
  • PTZ IP Camera
  • Ultra Range
  • High speed 300º/segundo
  • 45X Optical zoom
  • 1/2.8" Sony STARVIS™ CMOS Starlight
  • 2 Megapixel (2560x1440)
  • 3.95~177.75 mm Varifocal lens
  • High sensitivity Starlight
  • 0.005 Lux
  • IR Range 250 m
  • Compression H.265+/H.265/H.264+/H.264/MJPEG
  • RJ-45 10/100 BaseT
  • Weatherproof IP67, Anti-vandal IK10
  • Audio
  • IR Cut
  • Alarms
  • Smart SMD features
  • EIS Stabilizing System
  • WizSense: False alarm filter for people and vehicles
  • Autotracking and face detection
  • SD card recording
  • WEB, CMS (DSS/PSS), Smartphone and NVR interface
  • ONVIF Compatible
  • Wall bracket included

Features

  • PTZ X-Security 2 Mpx Ultra Range IP Camera
  • Autotracking / Face detection
  • WizSense: False alarm filter
  • Compression H.265+
  • 3.95-177.75mm (X45) Vari-focal lens
  • Audio / Alarms / High speed 300º/segundo

Specs

Brand X-Security
Image sensor 1/2.8" STARVIS™ CMOS
Optical zoom 45X
Resolution 2MP (1920 × 1080); 1.3M (1280 × 960); 720P (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 ×288/352 × 240)
Compression H.265+/H.265/H.264+/H.264/MJPEG (sub stream)
Main Stream rate 2MP / 1.3M / 720P (1–50/60 fps)
Extra Stream rate 2º: D1 / CIF (1–25/30 fps), 3º: 2MP / 1.3M / 720P (1–25/30 fps)
Bitrate H.265/H.264: 3 kbps–8192 kbps
Lens Varifocal 3.95 ~ 177.75 mm Auto Iris, Auto Focus
Digital zoom x16
Image improvements WDR (120dB),2D/ 3DNR, HLC, BLC, ATW, AGC, Privacy Mask, ROI
Minimum illumination 0.005 Lux (Color) @F1.6 / 0 lux (IR on)
Infrared lighting 0 Lux @ 250m range
Day / Night Removable mechanical ICR filter
Intelligent functions Autotracking, face detection, line crossing, abandoned object, intrusion, false alarm filtering for humans and vehicles
Audio 1 input (Line In) / 1 output (Line Out)
Alarms 7 inputs / 2 relay
Network interface Ethernet 10/100 BaseT
Remote access WEB interface, CMS software, mobile application and NVR
Memory Slot for Micro SD card (Max 256 GB)
Pan/Tilt Range Horizontal: 0°~360°, Vertical: -20°~90° auto flip 180°
Manual speed Horizontal: 0.1°~260° /s, Vertical: 0.1°~120° /s
Speed between Presets Horizontal: 300° /s, Vertical: 200° /s
Preset positions 300, 5 auto pattern, 8 auto tour, 5 auto scan
Communication DH-SD, ONVIF Compatible
Power AC 24 V / 2.5 A
Degree of protection Weatherproof IP67, Anti-vandal IK10
Temp. operation -40º C ~ +70º C
Dimensions 337.4 mm (H) x 209 (Ø) mm
Weight 6500 g

Package content

  • Motorised IP PTZ camera
  • CD with software and instructions
  • PFB305W wall bracket

Data sheet

Weight
2100 g
Degree of protection
IP20
Dimensions
100 (H) x 151 (W) x 65 (D) mm
Material
SPCC steel

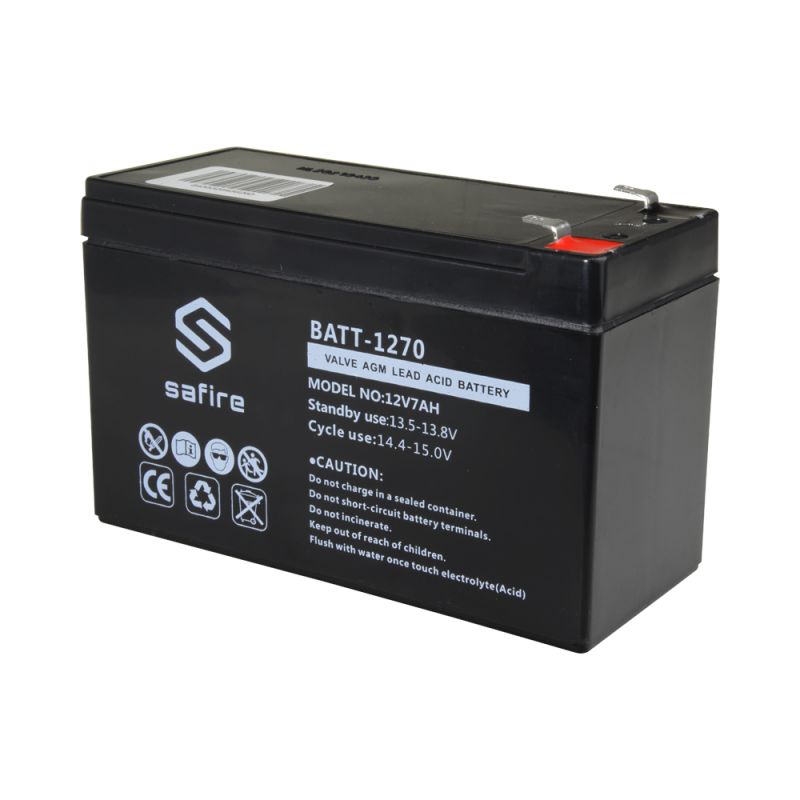

Nominal voltage
12 V
Nominal capacity
7.0 Ah (20HR)
Standby use
13.5 ~ 13.8 V
Cyclic use
14.4 ~ 14.8 V
Initial intensity
≥2.1 A
Maximum discharge intensity
70 A max.
Internal resistance
25 MΩ
Connection type
F1
Maximum load
60 kg
External dimensions
600 (H) x 380 (W) x 450 (D) mm
Interior dimensions
465 (w) x 450 (d) mm
Rack type
Wall closet
Storage capacity
Up to 6U rack of 19\"
Assembly
Yes
