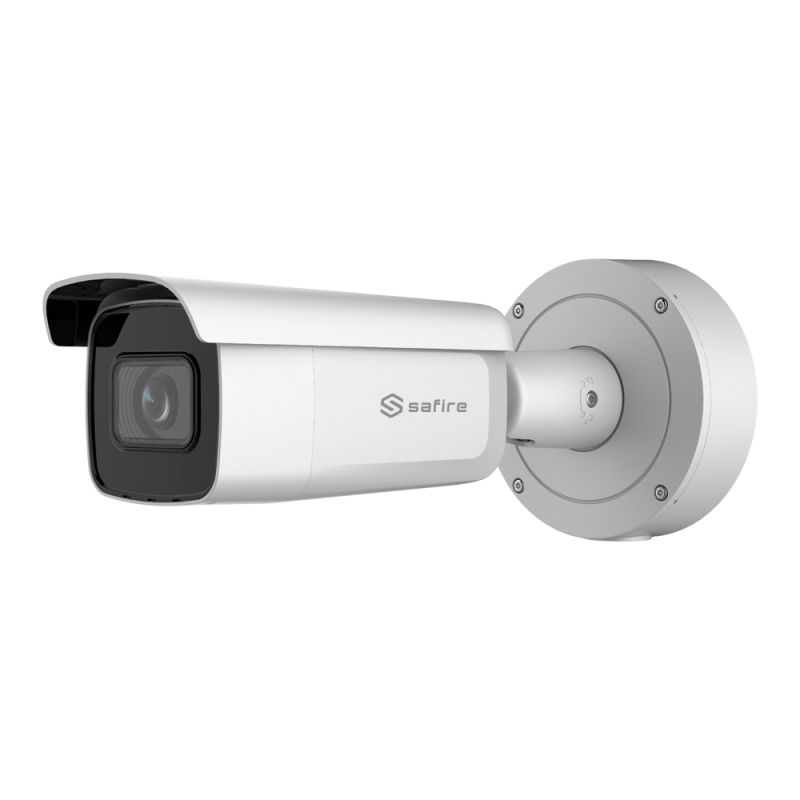

Safire SF-IPB798ZUWH-4ULPR-WG - IP Camera 4 Mpx LPR, 1/2.7\" Progressive Scan CMOS, OCR…

IP Camera 4 Mpx LPR - 1/2.7" Progressive Scan CMOS - OCR function, integrated license plate reader - 2.8~12mm motorised auto-focus lens - IR LEDs Range 60 m | Wiegand Protocol - Truesense2: Improved false alarm filter
Reference SF-IPB798ZUWH-4ULPR-WG
Brand Safire
Quantity

Free shipping

You might also like

  • Safire
  • IP camera with license plate recognition
  • 1/2.7" Progressive Scan CMOS
  • 4 Megapixel (2688x1520)
  • 2.8~12 mm motorised varifocal autofocus lens
  • WDR (120dB)
  • 0 Lux
  • IR Range 60 m
  • Number plate reading up to 40km/h
  • Monitoring of inputs and outputs ( (1 lane only)
  • Compression H.265+/H.265/H.264+/H.264
  • RJ-45 10/100 Mbps BaseT
  • RS-485
  • Wiegand
  • Alarms
  • Alarm when blacklisted number plate is detected
  • PoE IEEE802.3af
  • Weatherproof IP67
  • IR Cut
  • Recording and storage of license plates on SD card
  • WEB, CMS, Smartphone and NVR interface
  • ONVIF Compatible

Features

  • IP Camera 4 Mpx LPR
  • 1/2.7" Progressive Scan CMOS
  • OCR function, integrated license plate reader
  • 2.8~12mm motorised auto-focus lens
  • IR LEDs Range 60 m | Wiegand Protocol
  • Truesense2: Improved false alarm filter

Specs

BrandSAFIRE
Image sensor1/2.7" Progressive Scan CMOS
Maximum resolution4 Megapixel (2688x1520)
Main Stream rate4 Mpx / 1080p / 720p (1 ~ 50 FPS)
Extra Stream rateD1 / CIF (1 ~ 25 FPS)
CompressionH.265+ / H265 / H.264+ / H264 / MJPEG
Bitrate32 Kbps ~ 8 Mbps
Lens2.8~12mm Motorised auto-focus
FOVH: 107.6° - 30.3°, V: 56° - 17.1°
Minimum illumination0 Lux / IR LEDs (60 m)
Image improvementsWDR (120 dB), BLC, 3D-NR, AWB, Privacy Masking, ROI
LPR functionVehicle detection and number plate recognition up to 40 km/h
Vehicle detection in entrances and exits (only suitable for 1 lane)
Allowed and blocked list: up to 10.000 registrations
Capture of vehicles without registration
Supports Wiegand protocol: CARD ID 26bit, SHA-1 26bit and Hik 34 bit
Truesense 2Motion Detection, Line Crossing, Entry / Exit area
TrueSense, Face capture and People Counting cannot be active at the same time
Face CaptureYES (Compatible with Safire's Face Recognition recorders)
TrueSense, Face capture and People Counting cannot be active at the same time
Day / NightRemovable mechanical ICR filter
Internal memoryMicroSD Card, max 256 GB (required to operate LPR function)
Video output1 BNC CVBS output for test
Alarms1 input / 1 relay (max. 24 VDC, 1 A; 24 VAC, 1 A)
AudioNo
Communication InterfaceEthernet 10/100M BaseT | 1 RS485 1 [%VAR%] Wiegand
Remote accessWeb browser, Safire Control Center Smartphone App and PC Software
InteroperabilityONVIF, PSIA, CGI
PowerDC 12 V / 1.08 A, Max. 13W / PoE+ IEEE802.3at Max. 15W
Degree of protectionWeatherproof IP67
Temp. operation-30º C ~ +60º C
Dimensions340.9 (D) x 105 (Ø) mm
Weight1300 g

Package content

  • SAFIRE LPR IP Bullet Camera
  • Installation material
  • CD with software and instructions
  • Template for easy installation
  • Junction box

Data sheet

Weight
1300 g
1900 g
Power
12VDC / 5W, PoE IEEE802.3at
DC 12 V / 1.08 A, Max. 13W / PoE+ IEEE802.3at Max. 15W
Temp. operation
-30º C ~ +60º C
-40º C ~ +60º C
Degree of protection
Weatherproof IP66
Weatherproof IP67
Dimensions
340.9 (D) x 105 (Ø) mm
388 mm (D) x 110 (Ø) mm
Transfer Rate
32 Kbps ~ 8 Mbps
Alarm
2/2 In/Out
Video output
1 BNC CVBS output for test
Audio
1 input / 1 output line level 600 ohm
No
Image sensor
1/2.7\" Progressive Scan CMOS
Minimum illumination
0 Lux / IR LEDs (60 m)
Lens
2.8~12mm Motorised auto-focus
50 mm
Maximum resolution
4 Megapixel (2688x1520)
Image improvements
WDR (120 dB), BLC, 3D-NR, AWB, Privacy Masking, ROI
Day / Night
Removable mechanical ICR filter
Viewing angle
7º x 5º
Alarms
1 input / 1 relay (max. 24 VDC, 1 A, 24 VAC, 1 A)
Internal memory
MicroSD Card, max 256 GB (required to operate LPR function)
Micro SD card up to 128GB
Remote access
WEB interface, CMS (SunView), Smartphone and NVR
Web browser, Safire Control Center Smartphone App and PC Software
Main Stream rate
4 Mpx / 1080p / 720p (1 ~ 50 FPS)
D1 (25fps)
Extra Stream rate
D1 / CIF (1 ~ 25 FPS)
VAT NUMBER (25fps)
Compression
H.265 / H.264 / MJPEG
H.265+ / H265 / H.264+ / H264 / MJPEG
Network interface
Ethernet 10/100 BaseT
Interoperability
ONVIF
ONVIF, PSIA, CGI
Intelligent functions
Detection of fire and alarm, line crossing, intrusion
Thermal sensor
400x300 VOx
VCA ranges
Fire detection: 1471 m Person detection: 1471 m Vehicle detection: 4510 m Fire recognition: 490 m Person recognition: 368 m Vehicle recognition: 1127 m
Fire detection: 1471 m Person detection: 1471 m Vehicle detection: 4510 m Fire recognition: 490 m Person recognition: 368 m Vehicle recognition: 1127 m
Thermal sensitivity
≤40mK
Spectral range
8~14um
VCA
Up to 8 VCA rules (cross line, intrusion, area entry and exit)
Temperature rules
Even 19 rules (9 points, 9 areas and 1 line)
Range of Detectable Temperatures
-40 ℃ to 150 ℃ ( from -4 ℉ to ℉ 302 )
Communication interface
Ethernet 10/100M BaseT | 1 RS485 1 [%VAR%] Wiegand
Truesense 2
Motion Detection, Line Crossing, Entry / Exit area TrueSense, Face capture and People Counting cannot be active at the same time
Face Capture
YES (Compatible with Safire\'s Face Recognition recorders) TrueSense, Face capture and People Counting cannot be active at the same time
LPR function
Vehicle detection and number plate recognition up to 40 km/h Vehicle detection in entrances and exits (only suitable for 1 lane) Allowed and blocked list: up to 10.000 registrations Capture of vehicles without registration Supports Wiegand protocol:
FOV
H: 107.6° - 30.3°, V: 56° - 17.1°
