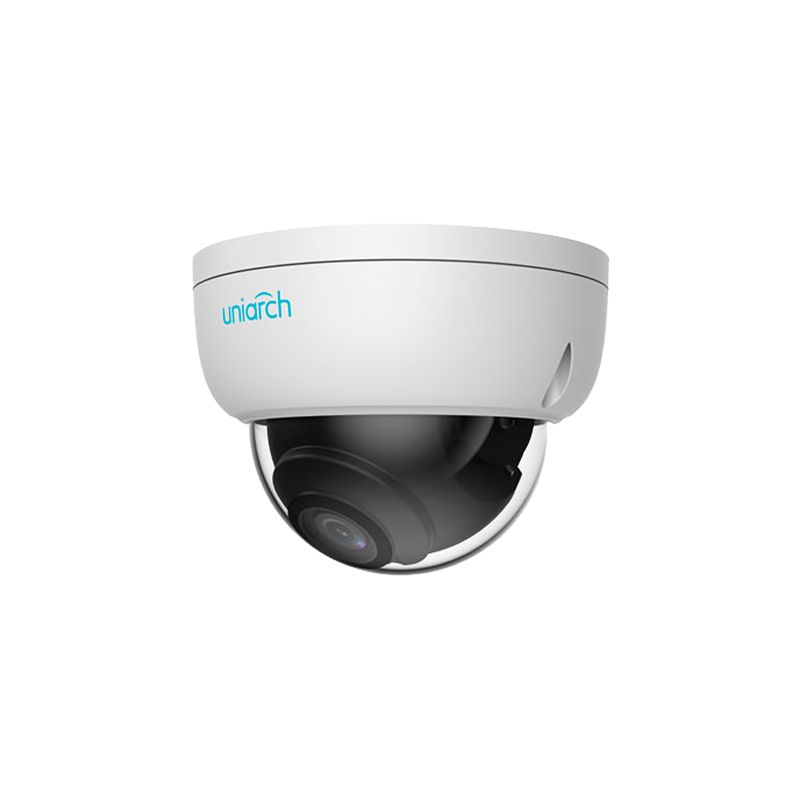

Uniarch UV-IPC-D114-PF28 - 4 MP IP Camera, Uniarch range, 1/2.7\" Progressive Scan…

4 MP IP Camera - Uniarch range - 1/2.7" Progressive Scan CMOS - 2.8 mm Lens - IR LEDs Range 30 m - WEB, CMS, Smartphone and NVR interface
Reference UV-IPC-D114-PF28
Brand Uniarch
Quantity

Free shipping

You might also like

  • Uniarch
  • IP Dome Camera
  • 1/2.7" Progressive Scan CMOS
  • 4 Megapixel (2560x1440)
  • 2.8 mm Lens
  • 0 Lux
  • IR Range 30 m
  • Compression Ultra265/H.265/H.264
  • RJ-45 10/100 BaseT
  • PoE IEEE802.3af
  • Weatherproof IP67
  • Vandal proof IK10
  • IR Cut
  • WEB, CMS, Smartphone and NVR interface
  • ONVIF Compatible

Features

  • 4 MP IP Camera
  • Uniarch range
  • 1/2.7" Progressive Scan CMOS
  • 2.8 mm Lens
  • IR LEDs Range 30 m
  • WEB, CMS, Smartphone and NVR interface

Specs

RangeUniarch
Image sensor1/2.7” Progressive Scan CMOS
Maximum resolution4 Megapixel (2560x1440)
Main Stream rate4 Mpx (1 ~ 20 FPS)
Extra Stream rate720p (1 ~ 20 FPS)
CompressionUltra265/H.265/H.264
Lens2.8 mm
Minimum illumination0.02 Lux (Colour)
Infrared range30 m
Image improvementsDWDR, AGC, 2D/3D-NR, Motion detection, ROI, Privacy Mask, Smart IR
Day / NightMechanical ICR filter
Internal memoryNo
AlarmsNo
AudioNo
Network interfaceEthernet 10/100 BaseT
Remote accessWeb Browser, CMS Software (EZStation), Smartphone (EZView/EZLive)
InteroperabilityONVIF
PowerDC 12 V / 4.5 W, PoE IEEE802.3af
Temp. operation-30º C ~ 60º C
Degree of protectionWaterproof IP67 / Anti-vandal IK10
Dimensions81.1 (H) x 108.7 (W) mm
Weight330 g

Package content

  • Uniview IP Camera
  • Installation material
  • User instructions
Uniarch

Data sheet

Weight
230 g
330 g
Power
DC 12 V / 4.5 W, PoE IEEE802.3af
DC 12 V / 266 mA / 3.2 W max
Resolution
1080P at 30 FPS
Temp. operation
-30º C ~ 60º C
-40º C ~ +60º C
Degree of protection
Waterproof IP67 / Anti-vandal IK10
Weatherproof IP67
Dimensions
81.1 (H) x 108.7 (W) mm
198.9 (D) x 80.2 (W) x 76.2 (H) mm
Material
Aluminium and Plastic
Range
Eco
Uniarch
Video output
1 x BNC switchable between HDTVI / HDCVI / AHD / CVBS
Audio
Built-in microphone (Audio via coaxial cable in HDCVI)
No
Image sensor
1/2.7\" CMOS
1/2.7” Progressive Scan CMOS
Minimum illumination
0.02 Lux (Colour)
0.02 Lux @(F1.85, AGC ON)
Basic functions
OSD menu (remote)
Configurable OSD functions
DWDR, 2D-DNR, HLC, BLC, AGC, Smart IR
Lens
2.8 mm
Maximum resolution
2 Mpx (1920x1080)
4 Megapixel (2560x1440)
Infrared lighting
0 Lux / SMART IR (80 m)
Image improvements
DWDR, AGC, 2D/3D-NR, Motion detection, ROI, Privacy Mask, Smart IR
Day / Night
Auto / Colour / BW (Black and White)
Mechanical ICR filter
Alarms
No
Internal memory
No
Remote access
Web Browser, CMS Software (EZStation), Smartphone (EZView/EZLive)
Main Stream rate
4 Mpx (1 ~ 20 FPS)
Extra Stream rate
720p (1 ~ 20 FPS)
Compression
Ultra265/H.265/H.264
Network interface
Ethernet 10/100 BaseT
Interoperability
ONVIF
Infrared range
30 m
Video output switching
Via Switch
