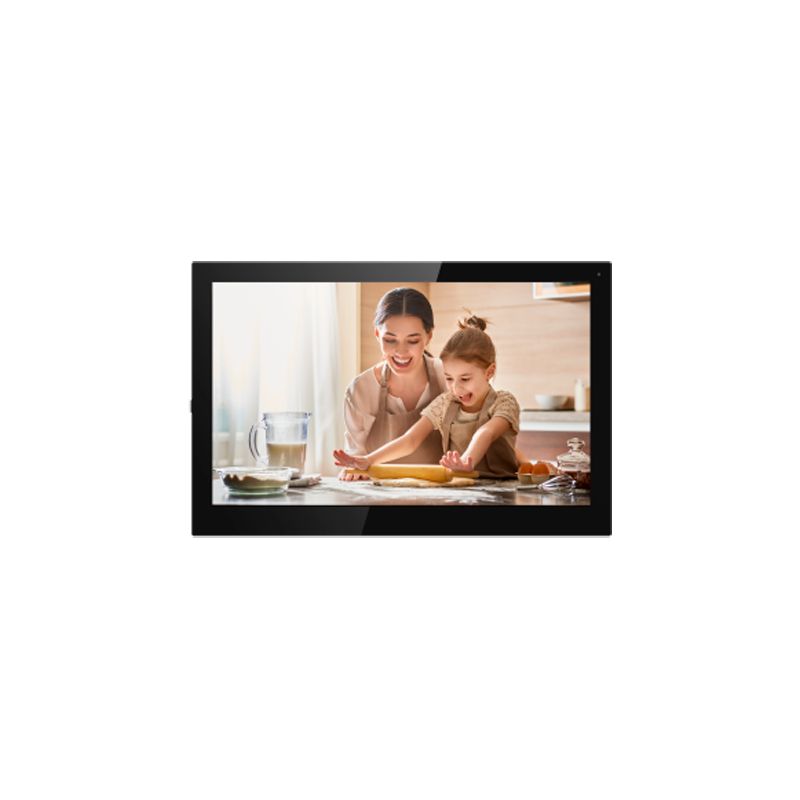

X-Security XS-V5341MA-WIP - Video Intercom Monitor, TFT screen from 10\" Android…
search
  • X-Security XS-V5341MA-WIP - Video Intercom Monitor, TFT screen from 10\" Android…

Nivian Retail NV-KIT430W-4CAM - Nivian WiFi CCTV kit, NVR 4 channels, 4 cameras 3…

Nivian WiFi CCTV kit - NVR 4 channels - 4 cameras 3 Pre-registered Mpx - Suitable for outdoor use IP66 - Space for 1 Hard Disk - Esaecloud App and Software
Reference NV-KIT430W-4CAM
Brand Imou by Dahua
Quantity

Free shipping
  • Nivian
  • WiFi video surveillance kit
  • Contains:
  • 1 x 4-channels NVR
  • 4 Cameras 3Mpx 4mm IR 20 m for outdoor IP66
  • WiFi connection or Ethernet network between NVR and cameras
  • WiFi or Etehrnet connection between NVR and router
  • Wide WiFi range 2.4 GHz (700 m in open space)
  • WiFi repeater function on each camera
  • Compression H.265+
  • Full HD HDMI and VGA Output
  • Continuous/Programmed Recording/Motion Detection
  • Space for 1 HDD
  • Installation Plug&Play (Preconfigured cameras)
  • Included feeders
  • Remote access by Web browser, PC/Mac software and Eseecloud App (IP PRO)

Features

  • Nivian WiFi CCTV kit
  • NVR 4 channels
  • 4 cameras 3 Pre-registered Mpx
  • Suitable for outdoor use IP66
  • Space for 1 Hard Disk
  • Esaecloud App and Software

Specs

IP cameras

Image sensor 1/3” 3 Megapixel Progressive Scan Sensor
Main Resolution 2304x1296 (15 FPS)
Secondary resolution 640x360 (15 FPS)
Compression H.265+ / H.264+
Lens 4 mm (D: 104°)
Minimum illumination 0 Lux / 3 IR LEDs (20 m)
Network interface Ethernet 10/100 BaseT (100 m) and Wifi 2.4 GHz 802.11b/g/n (700 m open space)
Plug&Play Access Preregistered in the NVR-wifi
Image improvements 3D-DNR, BLC, Mirror Vision V/H, Privacy Mask
ENVIRONMENT Suitable for outdoor use IP66, lightning protection 4000V
Operating temperature -20º C ~ 50º C
Power DC 12 V / 1 A (included)
Dimensions / Weight 66 (Al) x 66 (An) x 180(Fo) mm / 500 g

NVR

Inputs for IP cameras LAN / WiFi port up to 4 channels
Supported resolutions 5Mpx / 3Mpx / 1080p / 960p / 720p
Supported video compression format H.265+ / H.265 / H.264
Video outputs 1 HDMI Full HD, 1 VGA
Resolution HDMI/VGA display 1920x1080, 1440x900, 1280x1024, 1024x768
Simultaneous display 4Ch@3Mpx or 2Ch@5Mpx, Intelligent resolution adaptation
Simultaneous multifunction Pentaplex: Live, Recording, Playback, Backup and Remote Access
Recording method Manual, programmed, motion detection
Internal memory 1 SATA HDD 3.5" of up to 6 TB (not included)
Communication 1 USB (shared mouse and backup) / 1 RJ45 (Ethernet) / WiFi (AP and client)
Remote access EsaeCloud Web Browser, Software and App (IP PRO)
Power DC 12 V / 2 A (included)
Dimensions 42 (H) x 258 (W) x 210 (D) mm

Package content

  • NVR IP recorder with 4 channels
  • 4 WiFi camera
  • Screws and plugs
  • Power adapter
  • USB mouse
  • Ethernet cable
  • User instructions
Imou by Dahua

Data sheet

Weight
770 g
Power
DC 12V, 450mA max. PoE IEEE802.3af
Temp. operation
-10º C ~ +55º C
Dimensions
260 (H) x 170 (W) x 25 (D) mm
Inputs
8 Configurable alarm entries
Audio
Bidirectional audio with microphone and speaker
Operating system
Android 8.1
Memory
Slot for MicroSD card up to 32GB
Remote access
Mobile App or SmartPSS software
Network interface
TCP/IP | WiFiIEEE802.11b/g/n
LCD
10.2\" 1024x600, Capacitive
Operation mode
Tactile Buttons
