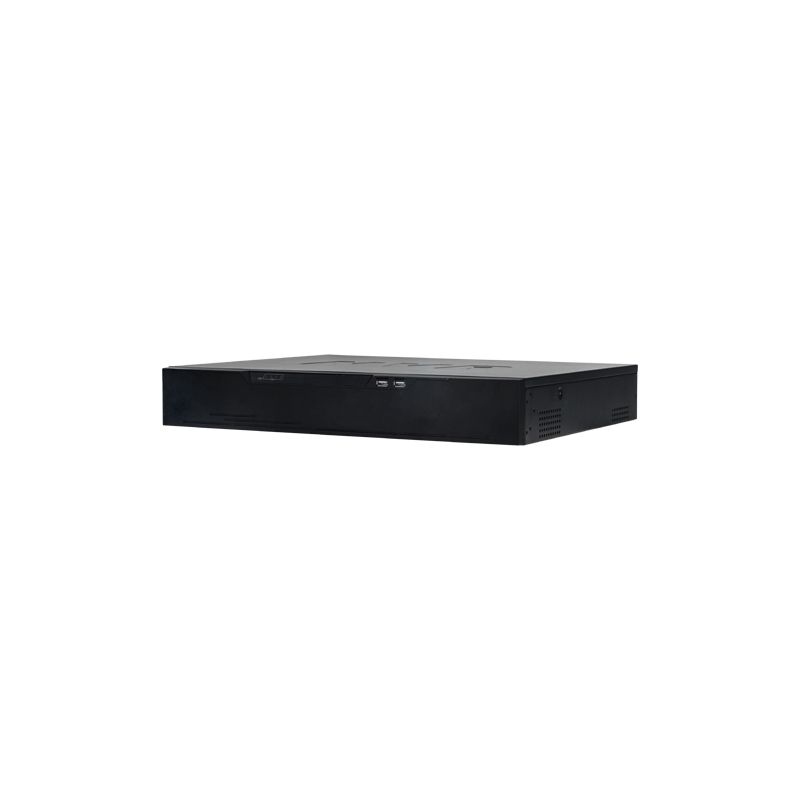

SELECT * FROM ps_od_oosbutton_manufacturer WHERE id_manufacturer = 105SELECT * FROM ps_od_oosbutton JOIN ps_od_oosbutton_lang USING (id_product) WHERE id_product = 23580 AND id_lang = 1 SN-NVR3632E4-P16-J - Sunell NVR Recorder with Face Recognition, 32 CH…
SN-NVR3632E4-P16-J - Sunell NVR Recorder with Face Recognition, 32 CH…
search
  • SN-NVR3632E4-P16-J - Sunell NVR Recorder with Face Recognition, 32 CH…

SN-NVR3632E4-P16-J - Sunell NVR Recorder with Face Recognition, 32 CH…

Sunell NVR Recorder with Face Recognition - 32 CH video - Max resolution 12 Mpx | Compression H.265+ - Processing up to 20 faces/second - Facial recognition in up to 32 channels - Comparison with even 10.000 images - Compatible with KIT-PANDA-BLACKBODY
Reference SN-NVR3632E4-P16-J
Brand Branded
Quantity

Free shipping
  • Sunell
  • Facial Recognition Recorder for KIT-PANDA-BLACKBODY
  • 32 CH
  • H.265+/H.265
  • Maximum resolution 12 Megapixel
  • 320 Mbps bandwidth supported
  • Facial recognition up to 20 images/second
  • Up to 16 image storage libraries
  • Storage of up to 10.000 images of faces
  • Comparison by match level or by stranger
  • Outputs 4K HDMI & VGA
  • 1 x RJ45 10/100/1000M
  • IP Dual Stream Access
  • WEB, CMS and Smartphone interface
  • ONVIF Compatible
  • Mouse
  • Alarms
  • Space for 4 HDD

Features

  • Sunell NVR Recorder with Face Recognition
  • 32 CH video
  • Max resolution 12 Mpx | Compression H.265+
  • Processing up to 20 faces/second
  • Facial recognition in up to 32 channels
  • Comparison with even 10.000 images
  • Compatible with KIT-PANDA-BLACKBODY

Specs

BrandSunell
Inputs for IP cameras32 channels
IP compatible camerasKIT-PANDA-BLACKBODY, Sunell, ONVIF
Video outputs1 HDMI 4K, 1 VGA simultaneous
Video compression formatH.265+ / H.265 / H.264+ / H.264 / MPEG4
Main display resolution1CH 12Mpx, 4CH 8Mpx, 8CH 4Mpx, 16CH 1080p, 32CH 720p
Auxiliary display resolution1920x1080, 1600x1200, 1280x1024, 1280x720, 1024x768 (60 Hz)
Recording resolution12MP/8MP/6MP/5MP/3MP/1080P/720P/D1
Audio inputs1 Line IN
Audio outputs1 Line OUT
Bidirectional audioNo
Simultaneous multifunctionPentaplex: Live, Recording, Playback, Backup and Remote Access
Facial recognitionMaximum 20 faces/second
Up to 32CH with Face Recognition

Storage 16 Booklets with up to 10.000 faces
Detection of strangers: The matching level can be set manually
Searches by: Comparison type, Image stored in the library
Smart functionsFacial Recognition
POS FunctionNo
Alarms2 IN / 1 OUT
Total bandwidth320 Mbps input (128Kbps ~ 8Mbps per channel)
Recording methodManual, programmed (Continuous, Motion Detection, Video Loss ... )
BackupUSB memory / HDD USB / CD-RW USB / DVR-RW USB
Internal memory4 SATA 3.5" HDD up to 12 TB (not included)HDD performance analysis with Seagate Skyhawk AI Surveillance series
Communication1 x USB 3.0 / 2 x USB 2.0 / 1x eSATA / 1 x RS485 / 1 x RS232 / 1 x RJ45 10/100/1000Mbps (Ethernet)
POE Interface16 x RJ45 100Mbps IEEE 802.3af, max. 160W
Remote accessWeb Browser, Smartphone App and CMS Software
PowerAC 100~240 V, 15 W (WITHOUT HDD)
Operating temperature-10° ~ +50° C
Dimensions / Weight70 (H) x 368 (W) x 440 (D) mm / 4.2 Kg

Package content

  • Sunell Facial Recognition NVR Recorder
  • Mouse
  • Ethernet Cable
  • Power supply cable

Data sheet

Power
AC 100~240 V, 15 W (WITHOUT HDD)
Operating temperature
-10° ~ +50° C
Dimensions / Weight
70 (H) x 368 (W) x 440 (D) mm / 4.2 Kg
Communication
1 x USB 3.0 / 2 x USB 2.0 / 1 x RS485 / 1 x RS232 / 2 x RJ45 10/100/1000Mbps (Ethernet)
Inputs for IP cameras
32 channels
IP compatible cameras
KIT-PANDA-BLACKBODY, Sunell, ONVIF
Bidirectional audio
No
Video compression format
H.265+ / H.265 / H.264+ / H.264 / MPEG4
Total bandwidth
320 Mbps input (128Kbps ~ 8Mbps per channel)
Simultaneous multifunction
Pentaplex: Live, Recording, Playback, Backup and Remote Access
Alarms
2 In / 1 Out
Recording method
Manual, programmed (Continuous, Motion Detection, Video Loss ... )
Internal memory
4 SATA 3.5\" HDD up to 12 TB (not included)HDD performance analysis with Seagate Skyhawk AI Surveillance series
Remote access
Web Browser, Smartphone App and CMS Software
Video outputs
1 HDMI 4K, 1 VGA simultaneous
Audio inputs
No dispone
Audio outputs
No dispone
Recording resolution
12MP/8MP/6MP/5MP/3MP/1080P/720P/D1
Backup
USB memory / HDD USB / CD-RW USB / DVR-RW USB
Brand
Sunell
Auxiliary display resolution
1920x1080, 1600x1200, 1280x1024, 1280x720, 1024x768 (60 Hz)
Smart functions
Facial Recognition
POS Function
No
Main display resolution
1CH 12Mpx, 4CH 8Mpx, 8CH 4Mpx, 16CH 1080p, 32CH 720p
Facial recognition
Maximum 20 faces/second Up to 32CH with Face Recognition Storage 16 Booklets with up to 10.000 faces Detection of strangers: The matching level can be set manually Searches by: Comparison type, Image stored in the library
POE Interface
16 x RJ45 100Mbps IEEE 802.3af, max. 160W
