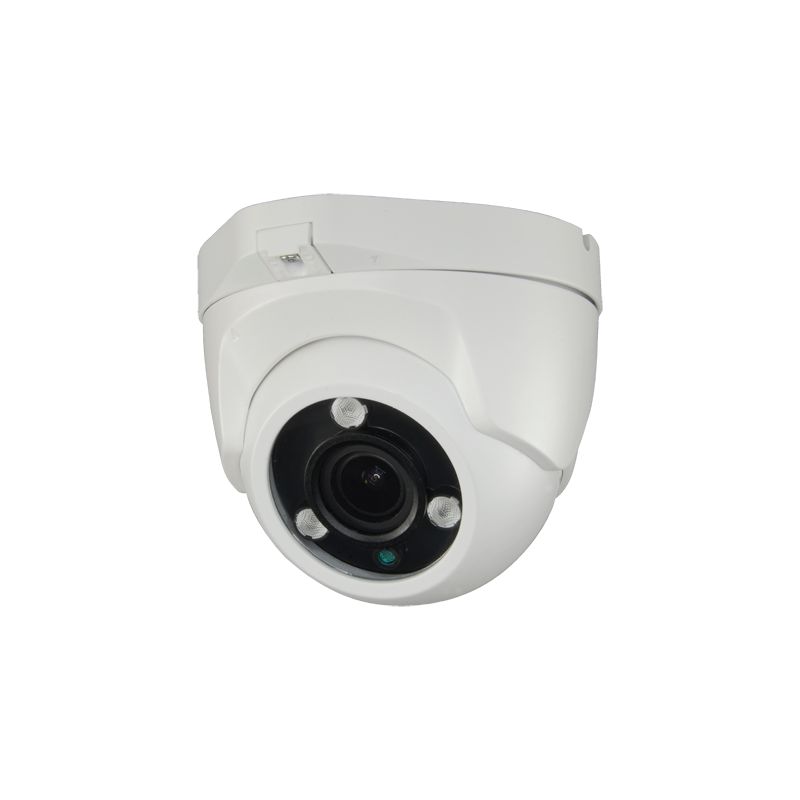

DM957VSZIB-F4N1 -

Data sheet

Weight

500 g
500 g

Resolution

1080p (1920x1080) at 25 FPS

Temp. operation

-10º C ~ +60º C

Degree of protection

Weatherproof IP66

Dimensions

95 (D) x 120 (Ø) mm

Power supply

DC 12 V / 450 mA max.

Range

1080p ULTRA

Video output

1 x HDTVI / HDCVI / AHD / CVBS (video test) / 1x BNC CVBS (video test)

Image sensor

1/2.8\"Sony© 2.13 Megapixel Starvis (model IMX291)

DSP

X600

Minimum illumination

0 Lux / 3 LEDs Array (40 m)

Basic functions

OSD menu, Day/Night with IR-CUT (ICR), Smart IR

Configurable OSD functions

WDR (12FPS), 3D-NR, ACE, AE, AWB, SenseUp, HLC, BLC, AGC, ATR

Lens

Motorised varifocal with Autofocus 2.8 ~ 12mm (94º ~ 24º)
