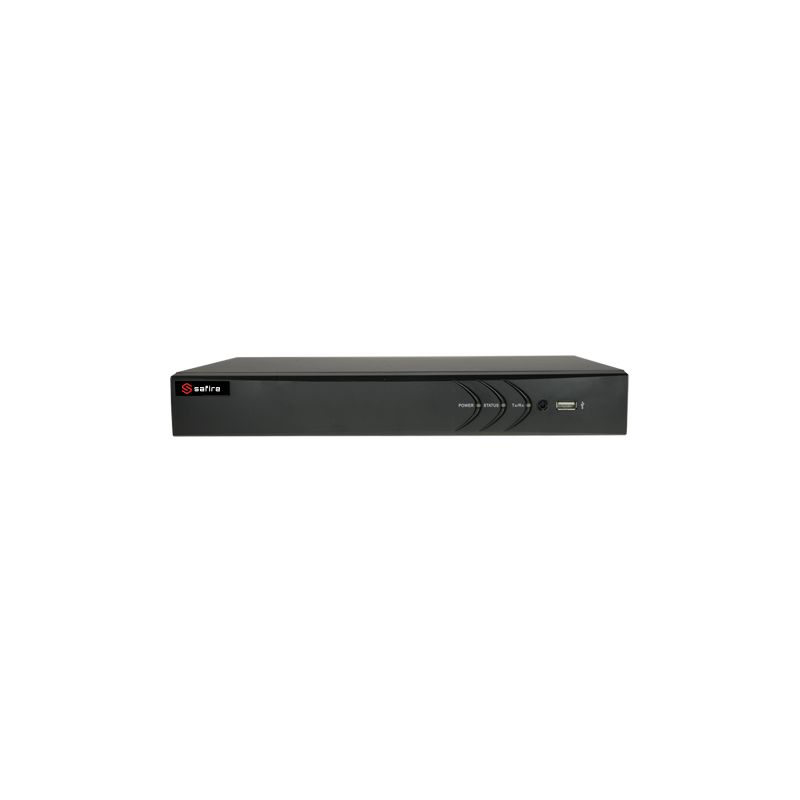

Safire HTVR3104 -

Data sheet

Power supply

DC 12 V / 1.5 A

Dimensions / Weight

45 (H) x 260 (W) x 222 (D) mm / 1.2 Kg

Communication

2 x USB (Mouse and backup) / RJ45 10/100 (Ethernet)

Video format

HDTVI / HDCVI / AHD / CVBS / IP

Video inputs

4 Channels BNC, (HDTVI / HDCVI / AHD / CVBS)

Bidirectional audio

Reusing the audio input/output

Display resolution

1920x1080, 1280x1024, 1280x720, 1024x768

Total bandwidth

72 Mbps

Simultaneous multifunction

Pentaplex: Live, Recording, Playback, Backup and Remote Access

Alarms

No

Recording method

Manual, programmed, motion detection

Internal memory

1 HDD SATA 3.5\" of up to 6TB (not included)

Remote access

Web browser, Smartphone App and Safire Control Center CMS Software

Video outputs

1 HDMI Full HD, 1 VGA

Video / audio compression

H.264+ / H.264 / G.711u

Main Stream coding

1080p Lite / 720p / VGA / WD1 / 4CIF / CIF (1/16 FPS~25 FPS)

Hybrid configuration

4 Channels from BNC and 1 Channel IP (960p)

Audio inputs

1 Channel RCA

Audio outputs

1 Channel RCA

Recording resolution

1080p Lite / 720p / WD1 / 4CIF /VGA / CIF

Extra Stream coding

CIF / QVGA / QCIF (1/16~25 FPS)

Backup

USB (Memory, HDD, CD-RW, DVR-RW) / Network

Video analysis

VCA: Line crossing | Area intrusion
