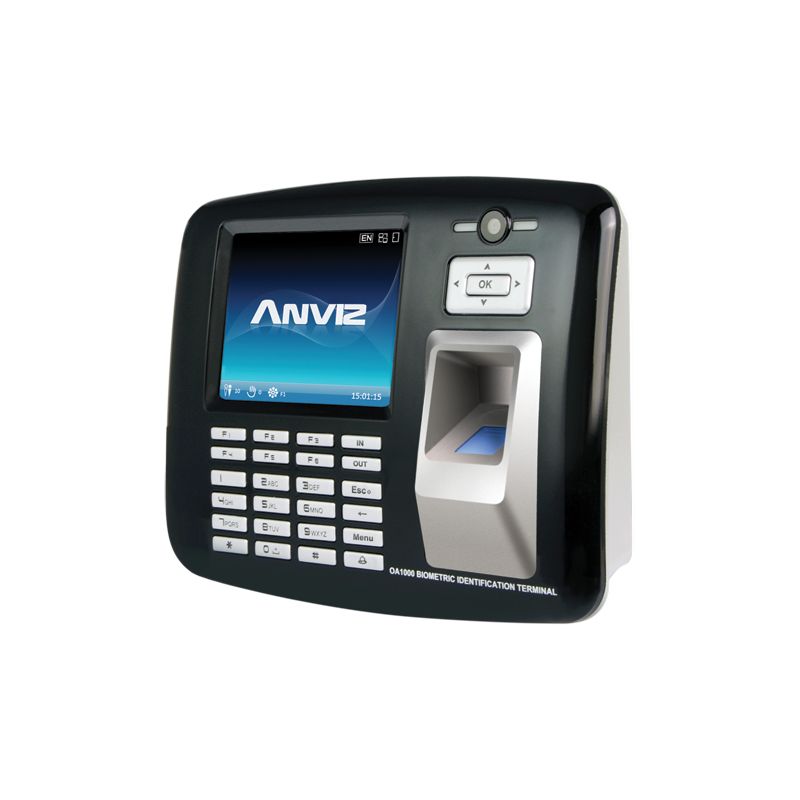

Anviz OA1000-MERCURY - Time & Attendance and Access control, Fingerprint,…

Time & Attendance and Access control - Fingerprint, RFID, keypad & 1,3Mpx Camera - 1.000 recordings / 200.000 records - WiFi, TCP/IP, USB, RS232, Relay - 8 Time & Attendance control modes - CrossChex and CloudClocking Software
Reference OA1000-MERCURY
Brand Anviz
Quantity

Free shipping
  • Anviz
  • Standalone biometric reader for Access Control and Time and Attendance
  • RFID card, fingerprint, passcode and/or combinations
  • Latest generation sensor by Lumidigm
  • Keypad and 3.5” TFT Screen
  • Capacity 1.000 fingerprints and/or cards and 200.000 records
  • 8 control modes of customisable time & attendance
  • Voice indications for all operations
  • 2 integrated controllers (door sensor, relay's & doorbell push button)
  • Relay for siren control
  • Communication: TCP/IP, USB Flash, RS232 & RS485
  • Wiegand input and output 26
  • Control of schedules, shifts and cycles
  • Personalised messages
  • Integrated 1.3 Mega-pixel camera for user photos
  • Comprehensive ANVIZ CrossChex and CloudClocking management software included free of charge

Features

  • Time & Attendance and Access control
  • Fingerprint, RFID, keypad & 1,3Mpx Camera
  • 1.000 recordings / 200.000 records
  • WiFi, TCP/IP, USB, RS232, Relay
  • 8 Time & Attendance control modes
  • CrossChex and CloudClocking Software

Specs

Brand ANVIZ
Processor Dual-Core Processor of 1GHz
Memory 8G Flash Memory & 1G SDRAM
Operating system Linux
Screen 3,5 " TFT
Identification time < 0.5 Sec.
Capacity Up to 1.000 fingerprints and/or RFID cards
Records Up to 200.000
Identification modes Footprint(H), Card(T), Pin(P) P+H, ID+P, P+T, H+T
Proximity card EM RFID (125KHz)
PC communication WIFI, TCP/IP, RJ45, RS232, RS485 & USB Flash drive
Inputs Door sensor, Wiegand Input 26
Outputs Double Wiegand 26 / Anviz, Double relay
Free software ANVIZ CrossChex and CloudClocking
Power DC 5-12V / 1.0 A
Temp. operation -20º C ~ +60º C
Dimensions 50 (D) x 180 (W) x 137 (H) mm
Weight 650 g
Certificates CE / FCC / RoHS

Package content

  • Access Control and Time & Attendance Terminal
  • 2 RFID cards 125 KHz
  • Connection cables
  • 4 plugs and 4 screws for mounting
  • Power supply DC 5V / 1.0 A
  • User instructions
  • CD with software and instructions

Data sheet

Weight
650 g
650 g
Power
DC 5-12V / 1.0 A
Certificates
CE / FCC / RoHS
Temp. operation
-20º C ~ +60º C
Dimensions
50 (D) x 180 (W) x 137 (H) mm
Capacity
Up to 1.000 fingerprints and/or RFID cards
Processor
Dual-Core Processor of 1GHz
Identification time
≤ 0.5 Sec.
Screen
3,5 \" TFT
Records
Up to 200.000
Identification modes
Fingerprint(F), Card(C), Pin(P), NFC, P+F, ID+P, P+C, F+C
Footprint(H), Card(T), Pin(P) P+H, ID+P, P+T, H+T
Proximity card
EM RFID (125KHz)
PC communication
WIFI, TCP/IP, RJ45, RS232, RS485 & USB Flash drive
Inputs
Door sensor, Wiegand Input 26
Outputs
Double Wiegand 26 / Anviz, Double relay
Free software
ANVIZ CrossChex
ANVIZ CrossChex and CloudClocking
Power supply
DC 5-12V / 1.0 A
Operating system
Linux
Memory
8G Flash Memory & 1G SDRAM
