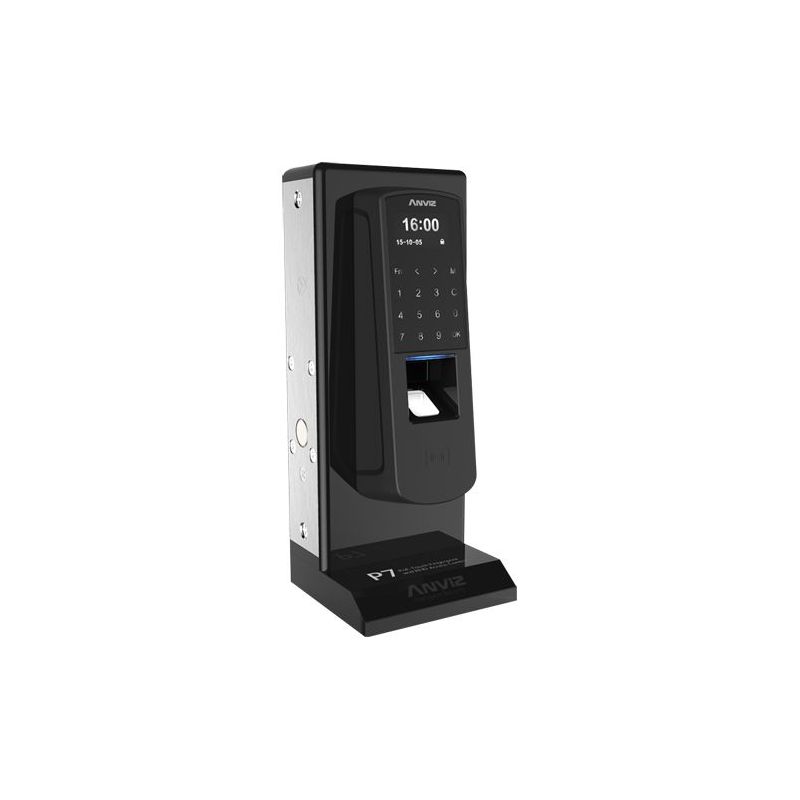

Anviz P7-DEMO -

Data sheet

Weight

200 g
200 g

Resolution

500 DPI

Dimensions

41 (D) x 54 (W) x 170 (H) mm

Capacity

Up to 3000 fingerprints or cards

Processor

TI Stellaris® 32-Bit high speed

Algorithm

BioNano V10

Optical fingerprint sensor

AFOS300 encapsulated

Scan area

22 x 18 mm

Identification time

≤ 0.5 Sec.

Screen

128x64 OLED

Records

Up to 50000

Identification modes

F, C, U+F, U+P, P+C, F+C

Proximity card

EM RFID (125KHz)

PC communication

TCP/IP, RS485, miniUSB

Inputs

Door sensor, opening button

Outputs

Wiegand 26, PoE, NO/NC output relay

Power supply

DC 12 V / 1000 mA, PoE IEEE802.3af/at

Activation sensor

Infrared auto-activation
