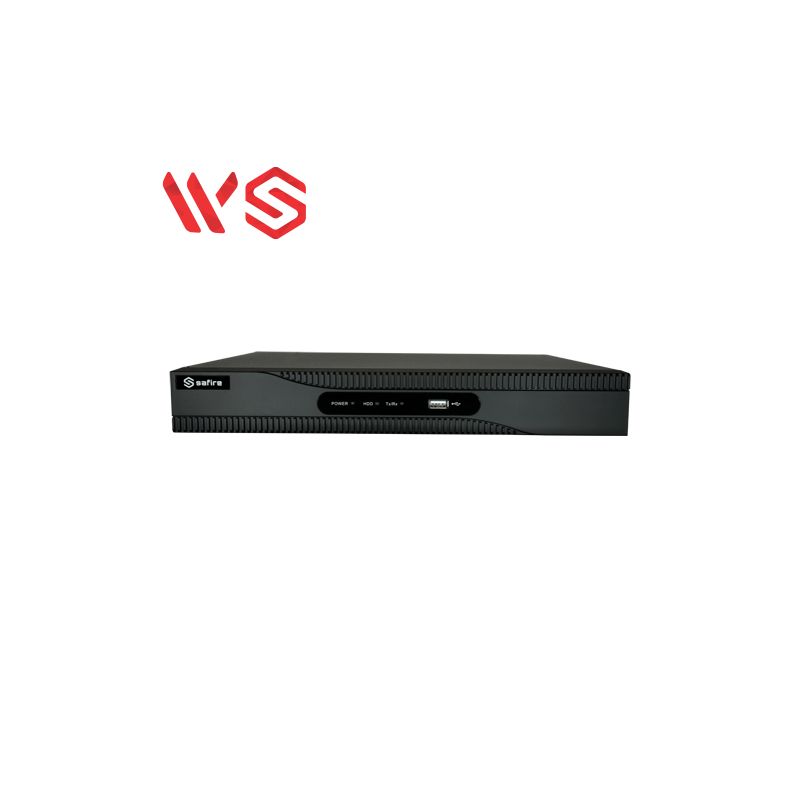

Safire SF-HTVR8216A-HEVC -

Data sheet

Operating temperature

-10º ~55º C

Power supply

DC 12V / 25W

Dimensions / Weight

48 (H) x 380 (W) x 320 (D) mm / 2 Kg

Communication

2 x USB (mouse and backup) / RJ45 10M/100M (Ethernet) / RS-485 half-duplex

Video output

1 HDMI 4K, 1 VGA, 1 CVBS

Video format

HDTVI / HDCVI / AHD / CVBS / IP

Video inputs

16 Channels BNC, (HDTVI / HDCVI / AHD / CVBS)

Bidirectional audio

Reusing the audio input/output

Display resolution

HDMI: 3840x2160 (30 Hz), 2560x1440 (60 Hz) / HDMI and VGA: 1920x1080, 1280x1024, 1280x720, 1024x768 (60 Hz)

Simultaneous multifunction

Pentaplex: Live, Recording, Playback, Backup and Remote Access

Alarms

16 Input / 4 Relay

Recording method

Manual, programmed, motion detection

Internal memory

2 SATA HDD 3.5\" of up to 8 TB (not included)

Remote access

Web browser, Smartphone App and Safire Control Center CMS Software

Video outputs

1 HDMI 4K, 1 VGA, 1 BNC (CVBS) Independent

Video / audio compression

H.265+ / H.265 / H.264+ / H.264 / G.711u

Main Stream coding

8 Mpx (8fps) / 5 Mpx (12 fps) / 4 Mpx (15 fps) / 3 Mpx (18 fps) / 1080p / 720p / WD1 / 4CIF / VGA / CIF (25 fps)

Hybrid configuration

16 BNC Channels and 8 IP Channels (6 MP) (Up to 24 IP Channels by replacing all BNC channels)

Audio inputs

4 RCA

Audio outputs

1 RCA

Recording resolution

4K (8Mpx) / 5Mpx / 4Mpx / 3Mpx / 1080p / 1080p Lite / 720p / WD1 / 4CIF / VGA / CIF
4K (8Mpx) / 5Mpx 4Mpx 3Mpx / / 1080p / 1080p Lite / / / 720pWD1/ VGA / 4CIF CIF

Extra Stream coding

WD1 / 4CIF / CIF (25 FPS)

Backup

USB (Memory, HDD, CD-RW, DVR-RW) / Network / Cloud (Microsoft One Drive, Dropbox)
USB (Memory, HDD, CD-RW, DVR-RW) / Network / Cloud (Microsoft One Drive, Dropbox, Google Drive)

Video analysis

VCA: Line Crossing | Area Intrusion (all channels) / Sudden Scene Change Detection (2 CH)

Audio compression

G.711u

Video compression

H.265+ / H.265 / H.264+ / H.264

Rack mountable

No

Alimentación

DC 12 V / 525 mA, 6.3 w máx
DC 12 V / 525 mA, 6.3 w máx
DC 12 V / 525 mA, 6.3 w máx
DC 12 V / 525 mA, 6.3 w máx
DC 12 V / 525 mA, 6.3 w máx

Two-way Audio

Reusing audio inputs
