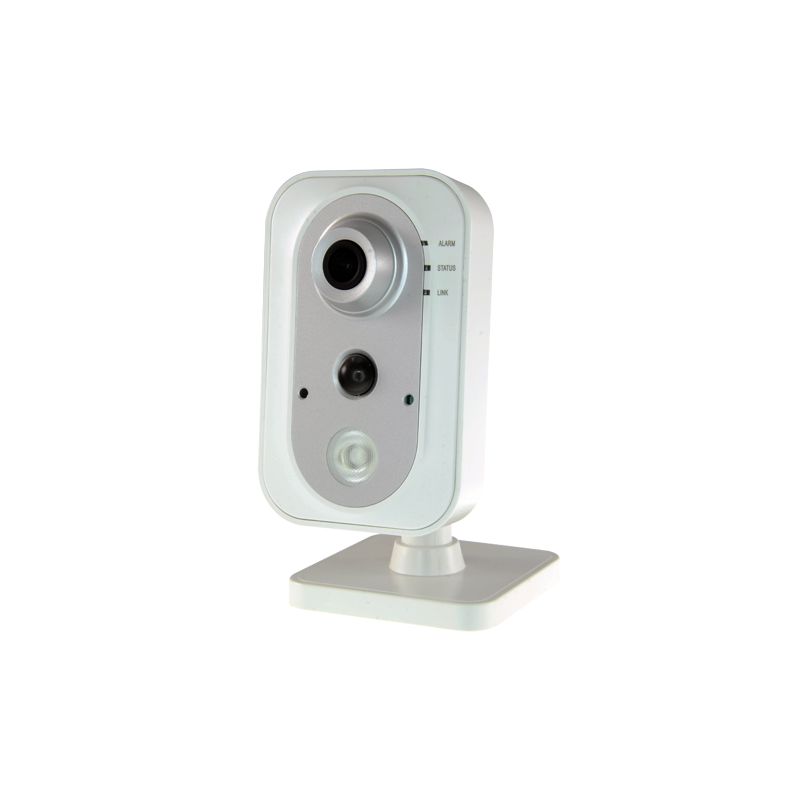

Safire SF-IPCU202W-1WI -

Data sheet

Temp. operation

-10º C ~ +40º C

Weight

400 g

Transfer Rate

32 Kbps ~ 8 Mbps

Power supply

DC 12 V / 500 mA, PoE (IEEE802.3af)

Functions

BLC, WDR, AGC, 3D-NR, Privacy Masking, ROI

Audio

Microphone and speaker incorporated

Image sensor

1/2.7” Progressive Scan CMOS

Minimum illumination

0.01 lux @F1.2 (Colour)

Lens

2.8 mm (H: 115.4º)

Maximum resolution

2 Megapixel (1920x1080)

Infrared lighting

0 Lux / 1 LED (10 m)

Use

Interior

Alarms

1 input / 1 output

Internal memory

MicroSD Card, Max 128 GB (not included)

Remote access

Web browser, Safire Control Center Smartphone App and PC Software

Main Stream rate

1080P/960P/720P (1 ~ 25 FPS)

Compression

H264+ / H264 / MJPEG

Network interface

Ethernet 10/100 BaseT, Wi-Fi (802.11b/g/n)

PIR sensor

Detection range 8 m, angle 90º

Interoperability

ONVIF

Dimensions with support

131 mm (H) x 73 mm (W) x 92 (D) mm

Dimensions without support

108 mm (H) x 66 mm (W) x 38 (D) mm
