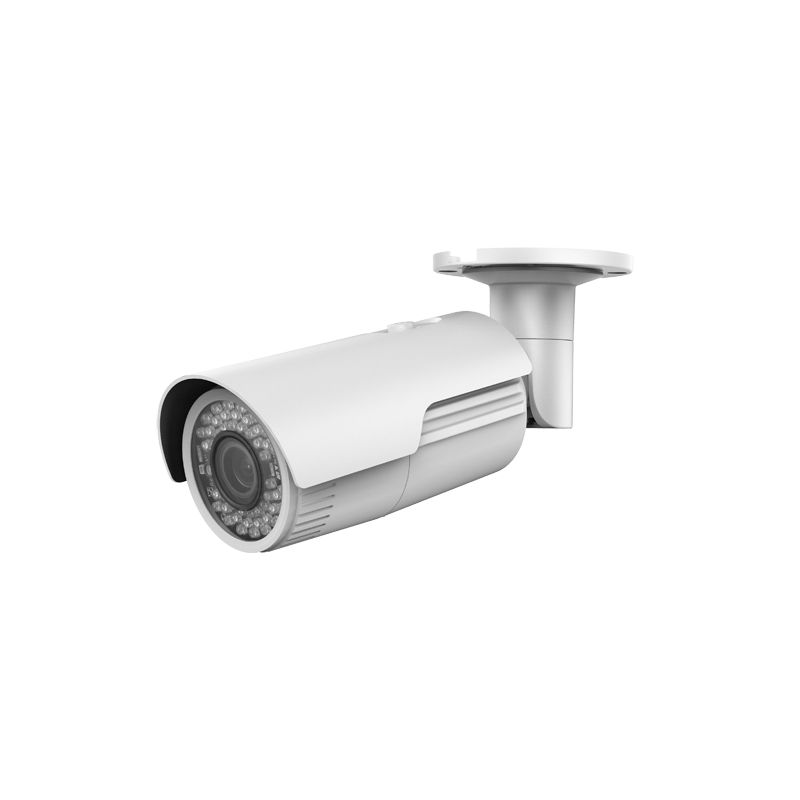

Safire SF-IPCV786ZW-2 -

Data sheet

Temp. operation

-30º C ~ +60º C

Degree of protection

Weatherproof IP67

Dimensions

295 mm (D) x 105 (Ø) mm

Weight

1200 g

Transfer Rate

32 Kbps ~ 8 Mbps

Power supply

DC 12 V / 500 mA, PoE IEEE802.3af

Video output

1 BNC output

Image sensor

1/2.8\" Progressive Scan CMOS

Minimum illumination

0.01 Lux @F1.2 (Colour) / 0 Lux (B/W)

Lens

Motorised 2.8~12 mm

Maximum resolution

2 Megapixel (1920x1080)

Infrared lighting

0 Lux / IR LEDs (30 m)

Image improvements

WDR, BLC, 3D-NR, AWB, Privacy Masking, Motion Detection, ROI, Mirror

Day / Night

Removable mechanical ICR filter

Internal memory

MicroSD card, Max 128 GB

Remote access

Web browser, Safire Control Center Smartphone App and PC Software

Main Stream rate

1080p / 720p (1 ~ 25 FPS)

Extra Stream rate

VGA / D1 / QVGA / CIF (1 ~ 25 FPS)

Compression

H.264+ / H264 / MJPEG

Network interface

Ethernet 10/100 BaseT

Interoperability

ONVIF, PSIA, CGI, ISAPI
