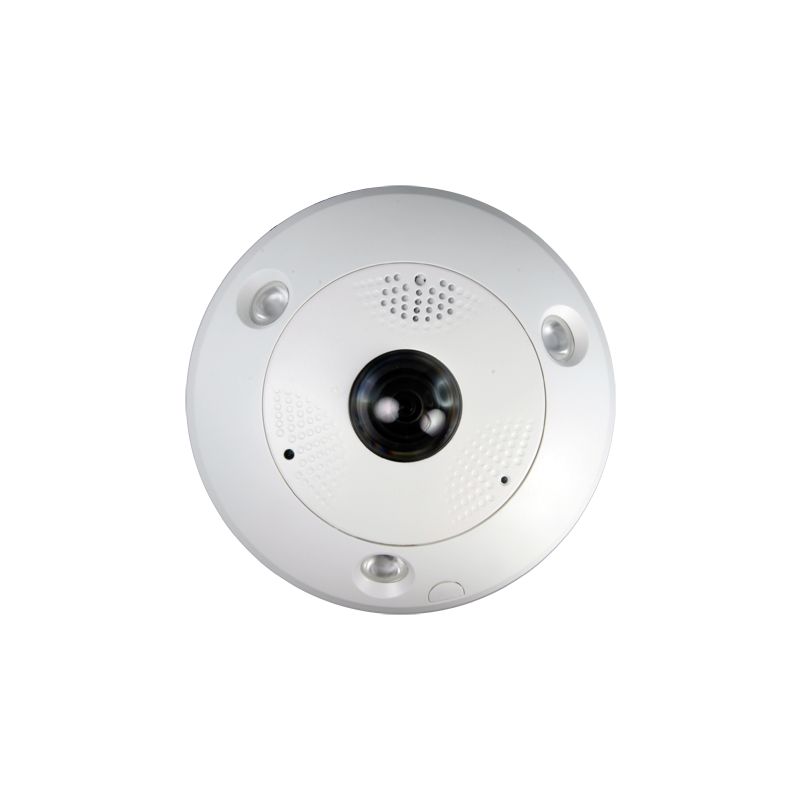

Safire SF-IPDM360-12 -

Data sheet

Weight

1300 g
1300 g

Power

DC 12 V / 1 A max, PoE IEEE802.3af

Temp. operation

-30º C ~ +60º C

Degree of protection

Weatherproof IP66, Anti-vandal IK10

Dimensions

51 (H) x 168 (Ø) mm

Transfer Rate

32 Kbps ~ 16 Mbps

Power supply

DC 12 V / 1 A max, PoE IEEE802.3af

Audio

1 IN, 1 OUT, Built-in Mic

Image sensor

1/1.7\" Progressive Scan CMOS

Minimum illumination

0 Lux / IR LED\'s (15m)

Basic functions

OSD menu, Day/Night with IR-CUT (ICR)

Lens

Lens 1.98 mm Fisheye

Maximum resolution

4000x3072

Image improvements

DWDR, 3D-NR, BLC, AWB, AGC, ROI, Defog

Day / Night

Removable mechanical ICR filter

Alarms

1 inputs / 1 relay

Internal memory

MicroSD card up to 128GB (not included)

Remote access

Web browser, Safire Control Center Smartphone App and PC Software

Main Stream rate

4000x3072 (1~20 FPS) / 3072x3072 / 2560×2560 (1~25 FPS) / 720x720 / 704x576 (1~12 FPS)

Compression

H.264/MJPEG

Network interface

Ethernet 100/1000 BaseT

Interoperability

SAFIRE, ONVIF, PSIA, CGI, ISAPI

Display modes

15 visualisation modes supported, including image correction/de-warping Views: Fisheye, panoramic, up to 8 ePTZ and various combinations
