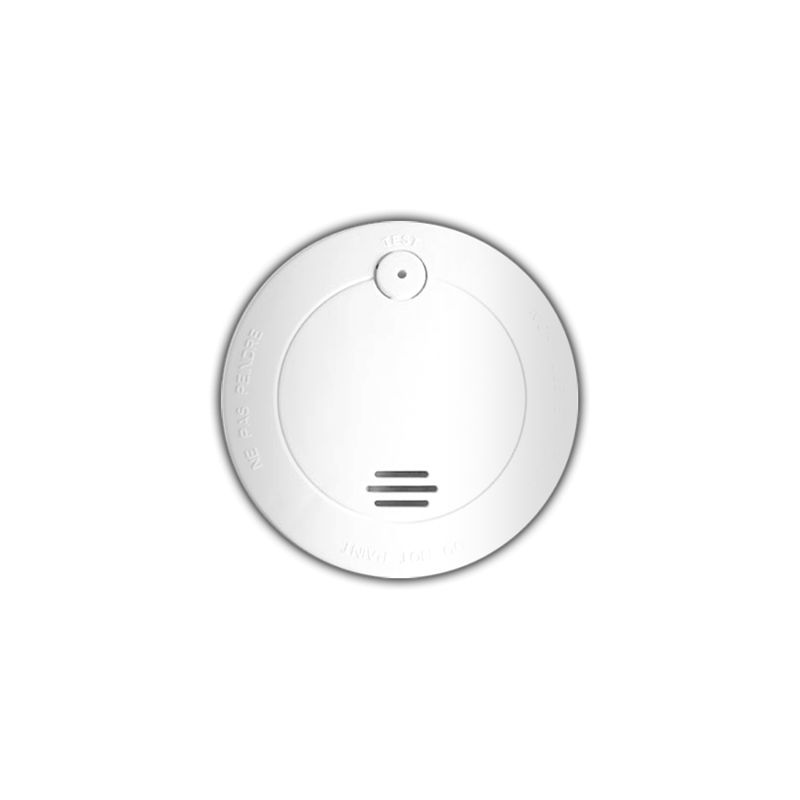

Chuango SMK-500 - Smoke detector, Wireless, Internal antenna, Built-in…
search
  • Chuango SMK-500 - Smoke detector, Wireless, Internal antenna, Built-in…

Chuango SMK-500 - Smoke detector, Wireless, Internal antenna, Built-in…

Smoke detector - Wireless - Internal antenna - Built-in siren - Detection range 20 m² - Power supply 1 battery 9 V
Reference SMK-500
Brand Chuango
Quantity

Free shipping

Photoelectric smoke detector, which operates by detecting smoke particles in the environment. Thanks to its special design and photoelectric signal processing, it prevents false positives by dust or other interference, focusing on the detection of smoke caused by visible or hidden fire.

When it detects smoke, it will send an alert to the panel that will trigger the alarm. But furthermore, it has a built-in siren that will sound at the same time of detection, causing the first warning. It is widely used in homes, shops, hotels and offices.

  • - Simple installation on the ceiling, compact and aesthetic design
  • - Wireless connection 433 MHz with the panel with a maximum reach of 100 m
  • - Automatic restart after alarm and when the concentration of smoke disappears
  • - Internal high power siren: 85 dB/m
  • - Low battery warning system, the detector itself will warn you when the battery is low
  • - Photoelectric, smoke enters the detector and scatters the light of an LED, stimulating a photosensor
  • - Wide detection range of 20 m²

Features

  • Smoke detector
  • Wireless
  • Internal antenna
  • Built-in siren
  • Detection range 20 m²
  • Power supply 1 battery 9 V

Specs

Power 1 battery of 9 V
LED frequency in working mode Once every 32 seconds
LED frequency in alarm mode Once every 0.62 seconds
LED frequency in low battery mode Once every 32 seconds
Detection range 20 m²
Siren power ≥ 85 dB/cbm
Transmission distance ≤ 100 m (in open space)
Frequency 433 MHz (± 75 KHz)
Housing material ABS plastic
Temp. operation 10º C ~ 50º C
Relative humidity ≤ 95% (without condensation)
Dimensions 31 (H) x 102 (Ø) mm

Package content

- Smoke Detector
- 2 plugs and 2 screws for mounting
- Instructions Manual

Data sheet

Power
1 battery of 9 V
Detection range
20 m²
Frequency
433 MHz (± 75 KHz)
Temp. operation
10º C ~ 50º C
Transmission distance
≤ 100 m (in open space)
Housing material
ABS plastic
Dimensions
31 (H) x 102 (Ø) mm
Relative humidity
≤ 95% (without condensation)
Power supply
1 battery of 9 V
LED frequency in working mode
Once every 32 seconds
LED frequency in alarm mode
Once every 0.62 seconds
LED frequency in low battery mode
Once every 32 seconds
Siren power
≥ 85 dB/cbm
